100mm Hi-Hat
The cast iron 100mm Hi-Hat works with any fluid head that has a 100mm ball base.
The hi hat comes mounted on a hi hat board that has cut corners (octagon shape) in order to fit into tighter spaces
Each leg has a 1/4″ hole for easy mounting to wood or metal plates.
Weighs
2.05 pounds.
150mm Hi-Hat
The Cast Iron Ball/Claw Hi-Hat works with all professional fluid heads with a 150mm ball mount.
The 3 legs have holes for mounting it to a wood or metal plate. The hi hat comes mounted on a hi hat board that has cut corners (octagon shape) in order to fit into tighter spaces.
Weighs
3.25 pounds.

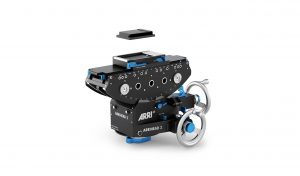

ARRI GEARED HEAD MKII MITCHELL BASE
The ARRIHEAD 2 is a compact geared head designed for current film and digital cameras, with a tilt-axis centred on the camera’s optical centre. The ARRIHEAD 2 has a standard Mitchell base and is also compatible with ARRI bottom plates and other touch-and-go systems.
Camera Plate Features – Quick Release
Base Mount – Mitchell Flat Base
Drag Control – 3-Step
Vertical Tilt – +90° to -90°
Load Capacity – 110 lb / 49.9 kg
Candrevaplate RA
The CANDREVAplate RA solves the problem of mounting the camera on its side and still being able to pan and tilt the camera normally.
The CANDREVAplate RA snaps into the O’Connor 2575 and allows the camera to be rigidly held on it’s side for those shots looking to utilize the best resolution of the camera’s sensor in the vertical orientation.
- Heavy-Duty L-Shaped Plate
- Mount Your Camera Vertically
- Compatible with OConnor 2575 Head
- Multiple Mounting Holes, Bubble Level
- Includes 2 Quick Release Plates
Compatibility
OConnor 2575 Head
Ronford-Baker RBQ
Multiple Heads with Euro Plate Receiver
Physical
Mounting:
9 x Pass-Through Holes
1 x OConnor 2575 Quick Release Plate
Dimensions:
8.5 x 8.13 x 4.71″ / 21.6 x 20.65 x 11.96 cm (Assembled)

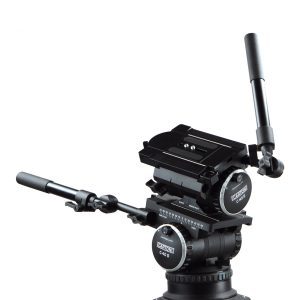

CARTONI C40 DUTCH HEAD
C40S Dutch Head with one pan bar. For cameras weighing up to 100 lbs.
This special accessory has been conceived to add a 3rd axis to a standard Fluid Head and allow the lateral movement called “Dutch angle”, enhancing special effects.
CARTONI C40S Dutch Head is designed to make exceptionally smooth side-tilt effects simple and straightforward to execute.
The Dutch Heads integrates the award winning CARTONI fluid module in progression from “0” to 7 intensity. The counterbalance system features the 7 step spring mechanism.
The CARTONI Dutch Head interface directly with the quick release plate on any camera support head featuring the European style quick release plate or can be attached by 2 3/8″ screws.
A special telescopic orientable pan bar completes the equipment.
Load Capacity – 100.0 lb
Diameter/Thread – 2x 3/8″ Screws
Counter Balance System – Single Spring Module
Counter Balance Range – 7 Settings
Center of Gravity – 6″
Quick Release/Wedge Plate – Yes, (Cat #K512)
Balance Plate – Sliding, with 2x 3/8″ Screws
Tilt Drag – 7 Settings, + 0
Tilt Range – -65° / +65°
Tilt Lock – Yes
Spring Loaded Counter Balance – Not Applicable
Pan Range – Not Applicable
Pan Lock – Not Applicable
Leveling Bubble/Illuminated – Yes, Non
Temperature Range -22° to +158°F (-30° to +70°C)
Weight 17.0 lb

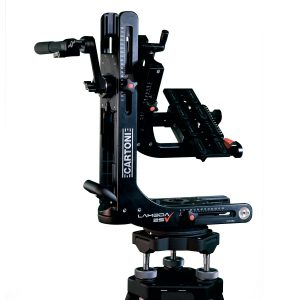

CARTONI LAMBDA 25 NODAL HEAD
Lambda 25 is a unique tool for refined precision & creative movement versatility and in many VFX.
Weight – 12 kg/ 26 lbs
Maximum Payload Capacity – 25 kg/ 55 lbs
Bowl Diameter – Flat base
Fluid Drag – Continuous
Tilt Range – 360°
Operational temperature – -40°/+60° Celsius

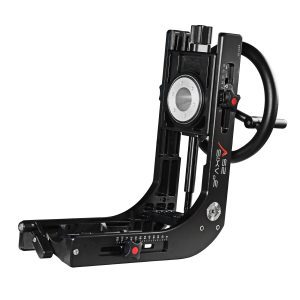

CARTONI LAMBDA 25 THIRD ACCESS
The 3rd Axis of the Lambda 25, allows nodal setting in 3 rotation axis, as if included in a sphere. It can be mounted on any existing Lambda 25 by simply disassembling the two “L” shaped frames and inserting the 3rd Axis axis in between. Ideal for underslung use on dollies or cranes. A short camera plate to fit the inverted camera slide and two 1 Kg (2.2 Lbs) counterweights complete the package.
Weight – 5.8 kg/ 13 lbs
Maximum Payload Capacity – 20 kg/ 44 lbs
Bowl Diameter – Flat base
Fluid Drag – Continuous
Operational temperature – -40/+60°C Celsius

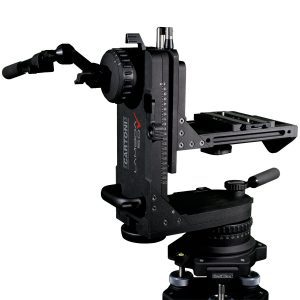

CARTONI LAMDA 50 NODAL HEAD
The multi award-winning Lambda 50 nodal head is the only support that allows to set the nodal position with any camera and pivoting 360° on the focal plan of the camera. The settings are achieved by graduated slides both horizontally and vertically with micrometric cranks for extreme precision. Movements are assisted by a 7 steps fluid system + “0” on all axis. A smart system of orientable counterweight rods can be used when the slide run is not sufficient to set the center of gravity (CG) and match the nodal point. The Lambda 50 head can be mounted on any classic support as tripods or dollies or used in underslung position from Cranes and Jib arms. Optional accessories as hard case, 3rd Axis, steering wheel, eyepiece holder and additional counterweight rods complete the most versatile of camera supports.
Weight – 21 kg/ 46 lbs
Maximum Payload Capacity – 50 kg/ 110 lbs
Bowl Diameter – Flat
Fluid Drag – 7 steps + 0
Tilt Range – +/-65°
Operational temperature – -40°/+60° Celsius

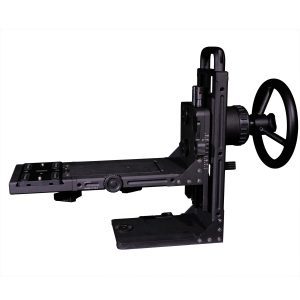

CARTONI LAMDA 50 THIRD ACCESS
The 3rd Axis for Lambda 50 adds the roll axis to the classic nodal head. The Lambda 50 3rd Axis is mounted in replacement of the Lambda 50 camera stage, creating 3 independent rotation axis for pan, tilt and roll. The precision cranks adjusting the slide allow the nodal setting to be combines on all 3 axis.
It includes an additional 7 steps + zero fluid drag unit and a rod with counterweight to compensate off-set positions.
Weight – 15.5 kg/ 34 lbs
Maximum Payload Capacity – 40 kg/ 88 lbs
Bowl Diameter – Plate
Fluid Drag – 7 steps + 0
Tilt Range – 360°
Operational temperature – -40°/+60° Celsius

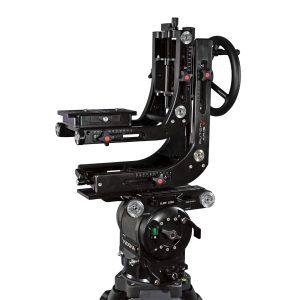

CARTONI TOTAL DUTCH
The Total Dutch Axis: a Cartoni patented new revolutionary tool to add a 3rd Axis lateral rotation to any classic heavy duty pan and tilt head. Allows unprecedented 360 ° rotation for extraordinary creative shots. The rotation is driven by a steering wheel pierced in the centre for cable channel. The camera plate is short to fit the inversion of the camera slide. The Total Dutch head is available as a complete product ready to be installed on top of any head via two 3/8 “ screws, or can be composed with Lambda 25 3rd Axis plus the camera stage of the Lambda 25 head. Two 1 kg (2.2 Lbs) counterweights complete the set for true nodal rotation around the optical centre.
Weight – 10.5 kg/ 23 lbs
Maximum Payload Capacity – 25 kg/ 55 lbs
Bowl Diameter – Flat base
Fluid Drag – Continuous
Operational temperature – -40/+60°C Celsius
Ceco Geared Wedge
The Geared wedge allows for extra tilt function, camera quick release ability, and balance adjustment for long lenses or off center configurations.
Weight:
12 lb

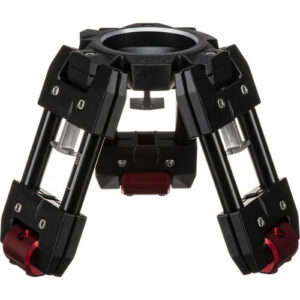

Manfrotto Hi Hat
The Manfrotto 529 Hi Hat with 100mm Bowl facilitates shots from the very low positions. The feet are rubber padded to protect delicate surfaces and have a hole so that it can be screwed down to a ladder, apple box, or sheet of plywood.
Material
Aluminum
Load Capacity
44 lb (20 kg)
Maximum Height
7.68″ (19.5 cm)
Minimum Height
5.7″ (14.5 cm)
Center Column
None
Leg Sections
1
Leg Cross Section
Round
Leg Tube Diameters
19 mm
Head Fixing
100 mm
Weight
5.95 lb (2.7 kg)

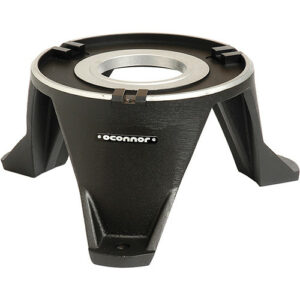

Mitchell Hi-Hat on Octagon Board
This high hat features three keyways making it quicker to align the head’s locating key to the high hat. In addition if one of the high hat’s keyways becomes damaged, you can still mount your tripod head using one of the other two keyways and continue shooting. The pre-drilled mounting holes in the high hat’s support feet make it easy to attach the high hat to structures for long-term projects.
Head Attachment Fitting
Standard Mitchell
3 x Keyways
Material of Construction Aluminum with a powder coated finish
Mountable
Pre-drilled Holes
3 x 3/8″ non tapped
One hole in each of the high hats support feet
Height
4.5 ” (11.4 cm)

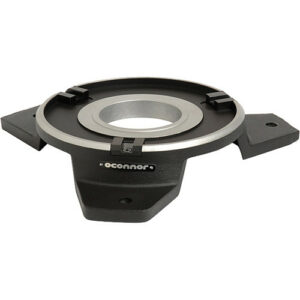

Mitchell Lo-Hat on Octagon Board
This mount is constructed from high-strength, heat-treated aluminum and can be used as a Mitchell interface when constructing specialized rigs and setups. This Low Hat Mount comes with 3 Mitchell keys for easier set-up, and all three legs have mounting holes for securing it to a mounting board.
Compatibility
Mitchell Base Heads 2065, 2575D, 120EX
