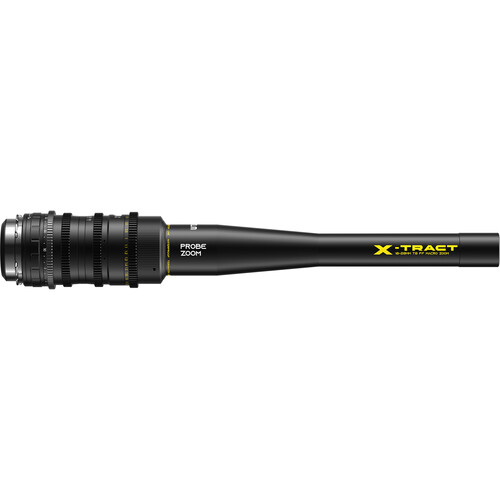

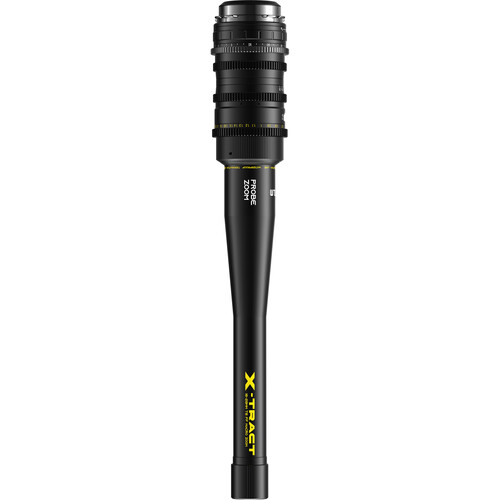

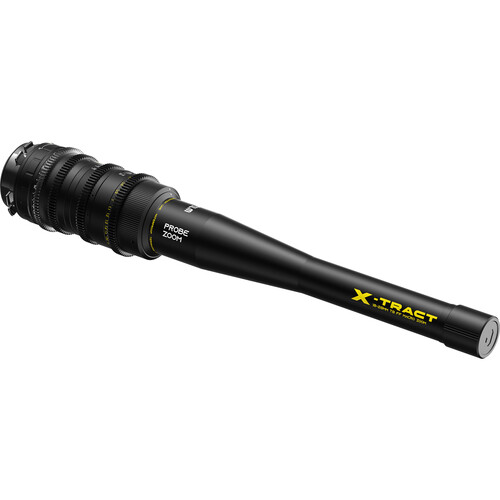

DZOFilm X-Tract 18-28mm T8 FF Probe Zoom Macro Lens (0° Direct View, ARRI PL)

Offering a 100 to 73° field of view, the ARRI PL-mount X-Tract 0° 18-28mm T8 FF Probe Zoom Macro Lens from DZOFilm brings innovative close-up capture to your productions. This compact probe lens measures just 16.3″ in length and has a front outside diameter of less than 1.2″, making it ideal for tight setups. It features a relatively fast T8 maximum aperture, a 2.1:1 maximum magnification, and a 0.24″ minimum focusing distance. This straight version offers a direct view; 90° and 360° periscope lens versions are available separately.

Wide 18-28mm Zoom

This 18-28mm zoom offers an ultrawide to more midrange reach, covering most common focal lengths.
The wide 100 to 73° field of view supports flexible capture.

Macro/Close Capture in Narrow Spaces

Craft creative macro shots using a maximum magnification ratio of 2.1:1.
The extremely close minimum focusing distance of around 0.24″ lets you get super tight coverage of your subject.
The large depth of field and wide-angle focal length combine to enable close-ups in constricted areas while maintaining a safe distance from your subject.

Low-Distortion, High-Resolution Optics

The optical design has both ED (extra-low dispersion) and high-refractive index elements, suppressing chromatic and spherical aberrations.
Advanced coatings help minimize flaring and reflections.
Incorporates seven HRI (high-refractive-index) lens elements, producing more natural color.
±2% distortion control across the zoom range.

T8 Maximum Aperture

The relatively fast T8 maximum aperture is maintained throughout the zoom range.
Multilayer, antireflective coatings help ensure sharp, clear images even when shooting wide open.

Waterproof, Cine-Style Design

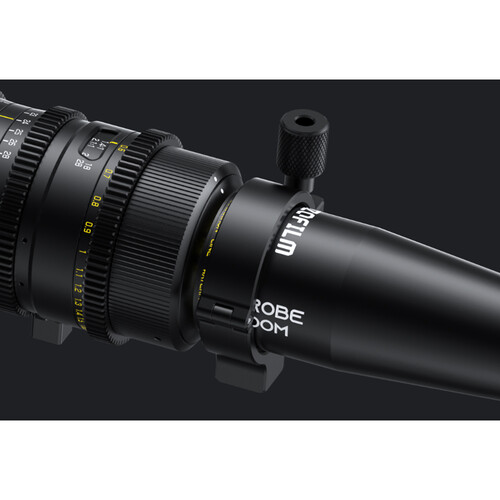

Focus, iris, and zoom functions all have 0.8 MOD cine-style gears for compatibility with follow focus and lens motor systems.
A lightweight yet rear-heavy design helps reduce vibrations while shooting.
The focus barrel offers a wide 300° rotation for precise focus pulls.
Waterproof and dustproof, this probe lens is also scratch and fog resistant.

Specs

Focal Length	18 to 28mm
Maximum Aperture	T8
Lens Mount	ARRI PL
Lens Format Coverage	Full-Frame
Filter Thread	No
Image Stabilization	No
Electronic Communication	No

Maximum Aperture	T8
Minimum Aperture	T22
Lens Mount	ARRI PL
Lens Format Coverage	Full-Frame
Angle of View	Full Frame Horizontal: 100 to 73°
Focus Scales	Metric
Filter Thread	No
Zoom Ratio	1.56x
Minimum Focus Distance	From Front of Lens: 0.2″ / 6 mm
Magnification	2.1:1 Macro Reproduction Ratio 0.26x Magnification
Image Stabilization	No

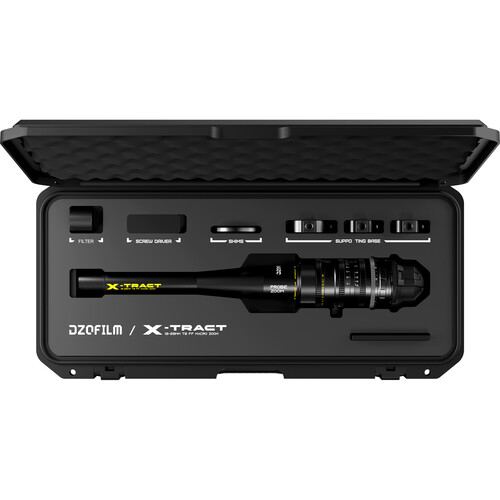

Lens Mounting	1x 1/4″-20 (via Included Support Foot) 3x 3/8″-16 (via Included Support Foot)
Gear Standard	0.8 MOD
Gear Rotation	Focus: 300°
Electronic Communication	No
Diameter	Front: 1.2″ / 29.6 mm
Length	16.3″ / 415 mm
Weight	2.4 lb / 1.09 kg
