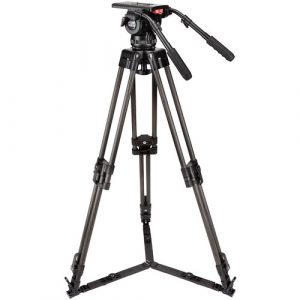

CAMGEAR V25 TRIPOD SYSTEM
The V25 100mm Fluid Head from Camgear is designed for EFP and field-based HD production and studio applications. It supports most portable broadcast cameras and camcorders in heavy-configuration and studio applications with teleprompter or compact studio lenses. The V25P fluid head features an eight-step pan & tilt drag, including “zero” position. The selectable ten-position counterbalance system allows for fine adjustments. This fluid head offers 100mm ball leveling and is equipped with a mini Euro plate quick-release system for fast camera setup.
Camera Plate Features – Quick Release
Camera Plate Type – Mini Euro Plate
Camera Mounting Screw – 1x 1/4″-20 Male & 1 x 3/8″-16 Male
Balance Plate Sliding Range – 4.7″ / 120 mm
Base Mount – 100 mm Half Ball
Counter Balance – Incremental 10-Step
Bubble Level – 1x Illuminated
Drag Control – 8-Step
Vertical Tilt – +90° to -75°
Panning Range – 360°
Load Capacity – 57.3 lb / 26 kg
Operating Temperature – -40 to 140°F / -40 to 60°C
Weight – 12.3 lb / 5.6 kg

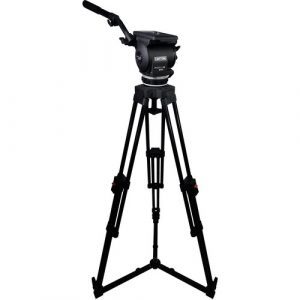

CARTONI FOCUS 22 TRIPOD SYSTEM
The Cartoni Focus 22 Fluid Head features a 100mm ball base and supports loads between 6.6 to 48.5 lb, with perfect balance along its entire +/-90° tilt range. Relatively lightweight at 8.6 lb, it is intended for users who usually shoot with light loads and therefore need a lightweight head, but who sometimes need to add on a heavy lens or accessory.
Camera Plate Features – Quick Release
Camera Plate Type – Euro Plate
Drag Control – Continuous
Drag Type – Fluid
Vertical Tilt – +90° to -90°
Panning Range – 360°
Load Capacity – 48.5 lb / 22 kg
Operating Temperature 0 -40 to 140°F / -40 to 60°C
Weight – 8.6 lb / 3.9 kg

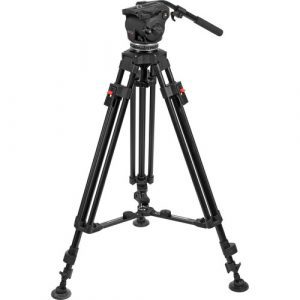

CARTONI FOCUS HD TRIPOD SYSTEM
The Cartoni Focus HD Video Tripod Head is compatible with 100mm bowl base tripods, and supports cameras weighing up to 26 lbs. Featuring a continuously variable fluid damping system on both pan and tilt movements and a patented variable counterbalance, the unit can be used with all existing ENG (Electronic News Gathering) and DV cameras. The lightweight (4.4 lbs) tripod head is easy to carry.
Camera Plate Features – Sliding Balance Plate
Base Mount – 100 mm Half Ball
Counter Balance – Continuous
Drag Control – Continuous
Vertical Tilt – +90° to -90°
Panning Range – 360°
Load Capacity – 26 lb / 12 kg
Weight – 4.4 lb / 2 kg

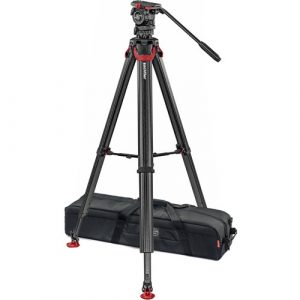

Flowtech 75 Aktiv
Work faster whatever the conditions with the Sachtler flowtech®75 aktiv Carbon Fibre tripod; optimised for enhanced performance and speed with the advanced Sachtler aktiv fluid head. The unique flowtech design allows you to deploy and adjust in the time it takes to release a single catch.
Being able to quickly set up and level a shot in any environment and terrain gives you more time to be creative and get the perfect shot. The Sachtler flowtech® 75 aktiv MS carbon fibre tripod’s mid-level spreader and rubber feet mean that each leg extends or retracts independently of the other two. Each leg has an individual clamping mechanism so that you can loosen and lock them from a single location near the 75 mm bowl. This deployment speed is paired with an easy to use ergonomic, lightweight design that can follow into the most intense environments.
SPECS:
Payload – 44.1 lb
Bowl Size – 75 mm
Spreader Type – Mid-level spreader
Material – Carbon Fibre
Transport Length – 26.8 in
Tripod Stages – 2
Weight – 7.7 lb
Height Range Without Spreader – 10.2 in to 60.2 in
Height Range With Mid Spreader – 24.8 in to 61.8 in
Weight Without Spreader – 6.4 lb

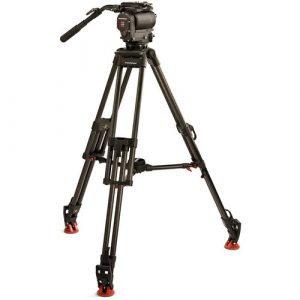

OCONNOR 1030D TRIPOD SYSTEM
The Oconnor Ultimate 1030D Fluid Head Is a lightweight fluid head that shares features with the other fluid heads in the OConnor Ultimate fluid head line. This allows operators to easily transition between lighter and heavier cameras without having to relearn think about the differences between fluid heads. The head supports 30 pounds worth of camera and accessories at a C.O.G. (center of gravity) 6 inches above the camera platform. The counterbalance system helps prevent the camera from tilting forward or back on the head on its own, and to remain in the position the operator places it without requiring additional effort to hold it in place. The counterbalance system on the 1030D is a stepless system, so it is continuously variable from the maximum weight the head can support all the way down to zero. This makes the 1030D extremely versatile, and suitable for use with heavy ENG style cameras all the way down to lightweight cameras, while maintaining the same operational feel.
Camera Plate Features – Sliding Balance Plate
Base Mount – 100 mm Half Ball
Counter Balance – Continuous
Bubble Level – 1x Illuminated
Drag Control – Tilt: Continuous/ Pan: Continuous
Vertical Tilt – +90° to -90°
Panning Range – 360°
Independent Pan Lock – Yes
Independent Tilt Lock – Yes
Load Capacity – 30 lb / 13.6 kg
Weight – 8.7 lb / 3.9 kg

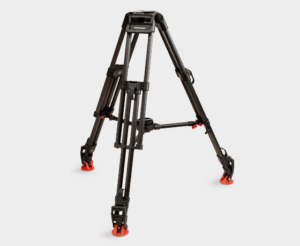

OCONNOR 30L
With the 30L Carbon Fiber Tripod OConnor replaces the legacy 25L & 35L lines of tripods. Combining the benefits of new-age materials with precision engineering has created a support system which is both lightweight, yet solid and stable, an ideal fit for the new generation of smaller new Ultimate 1030D & 1030Ds Fluid Heads.
At just 8.8 lbs (4 kg) the 30L’s double extension design ensures it can safely and stably carry payloads of up to 209 lbs (95 kg) even at its maximum height of 63.4″ (161 cm). And the 30L is versatile. Despite its generous height range, it folds down to a mere 29.5” (75 cm) for convenient travel. A smart quick clamping system offers secure and visible tripod lockdown. The system’s integral spreader system offers easy trouble-free security. Removable rubber feet expose spikes for optimal traction and payload safety on a variety of surfaces.
OConnor’s new 30L tripod system features an expanded payload range in a lightweight package that makes it the perfect companion for the new 1030D and 1030Ds Ultimate Fluid Heads.
Type – 2-Stage Tripod
Material – Carbon Fiber
Capacity – 209 lbs. (95 kg)
Weight – 8.8 lbs (4 kg) tripod only
Maximum Height – 61.8 in. (157 cm)
Minimum Height – 22 in. (56 cm)
Top Casting – 100 mm Ball Base
Collapsed Length – 29.5 in. (75 cm)
Includes – Mid-Leg spreader, Set of 3 Rubber feet

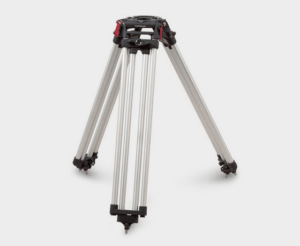

OCONNOR CINE HD
The CINE HD tripod is the perfect choice for heavy payloads that must be supported in a safe and reliable manner.
Material – Aluminium
Capacity – 309 lbs. (140 kg)
Weight – 29.3 lbs. (13.3 kg) (with Spreader)
Maximum Height – 69.2 in. (175.8 cm)
Minimum Height – 33.6 in. (85.3 cm)
Top Casting – 150 mm

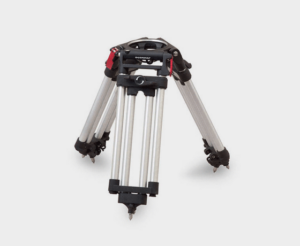

OCONNOR CINE HD BABY
The CINE HD tripod is the perfect choice for heavy payloads that must be supported in a safe and reliable manner.
Material – Aluminium
Capacity – 309 lbs. (140 kg)
Weight – 18.5 lbs. (8.4 kg) (with Spreader)
Maximum Height – 34.6 in. (87.9 cm)
Minimum Height – 4 in. (10.2 cm)
Top Casting – 150 mm

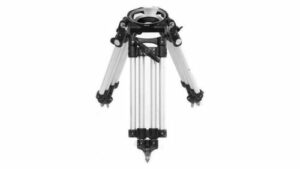

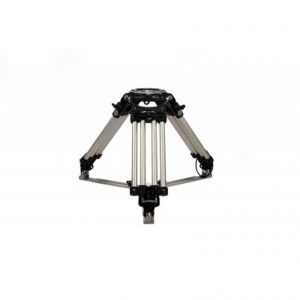

Ronford Baker Mitchell Base Baby Sticks
This baby (short), heavy-duty tripod is designed to support large, complex camera systems or rigs utilizing heavy optics. Features a Mitchell base for easy mounting of tripod heads.

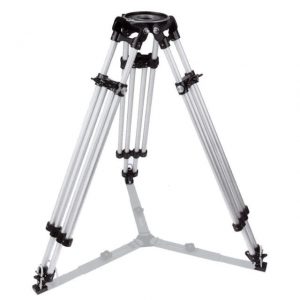

Ronford Baker Standard Legs Mitchell Base
Materials and Finish
Castings are LM25 anodised, stove enameled black texture.
Tubes are 1” dia x 16swg HE30TF alloy, polished and anodized, with nylon wipers and nylon locking pads.
Stainless Steel spikes to feet, with rubber covers.
Locking levers are anodized and stove enamelled black texture. All steel parts are hardened where necessary, and chrome plated.
Ronford-Baker 150 Baby
This baby (short), heavy-duty tripod is designed to support large, complex camera systems or rigs utilizing heavy optics. Features a Mitchell base for easy mounting of tripod heads.
Key Highlights:
Short, heavy-duty tripod
1′ 8″ to 3′ (min./max. height)
~200 lb max. payload
Ronford-Baker 150 STD
The Ronford-Baker Heavy Duty Tall Tripod (150mm Bowl) delivers reliable and secure support for complex and heavy camera systems. The 150mm bowl ensures fluid heads/cameras are secured to the tripod, while 1″ tubes provide firm support from minimum to maximum height.
Height: With legs spread at 1’6” (45.7cm): closed 3ft’ (91.4cm), fully extended 5’6” (167.6cm)
Weight: 14lb (6.5kg)
Ronford-Baker Baby Legs with Mitchell Base
This baby (short), heavy-duty tripod is designed to support large, complex camera systems or rigs utilizing heavy optics. Features a Mitchell base for easy mounting of tripod heads.
Sachtler CF-100ENG Tripod
The CF 100 ENG HD 2CF two stage, heavy-duty tripod, provides maximum stability and carrying capacity.
Constructed and drawn out of one-piece of carbon fiber material, it is twist resistant and lighter than dural aluminum. It features a 100mm / 4″ bowl, tube diameter of 24mm (0.94″) for extra stability, and is fitted with the Sachtler quick clamping system, so you can securely and visibly lock the tripod.
Head Mount Type
100 mm Bowl
Maximum Working Height
61.8″ / 156.972 cm
Minimum Working Height
20.1″ / 51.054 cm
Closed Length
28.4″ / 72.136 cm
Materials
Carbon Fiber
Weight
9.5 lb / 4.31 kg
Sachtler Flowtech 75 MS Carbon Fiber Tripod
The Sachtler Flowtech 75 MS Carbon Fiber Tripod with Mid-Level Spreader and Rubber Feet eschews the common single or double carbon fiber tube design and instead has redesigned the shape of the legs for improved torsional strength. The legs work weigh just under 7 pounds yet they can support a payload of up to 44 pounds, and extend from a minimum height of 24″ to a maximum height of 61″ when using the included removable mid-level spreader. Each leg features a single clamping lever that locks and unlocks the sections.
Load Capacity
44.1 lb / 20 kg
Head Mount Type 75 mm Bowl
Maximum Working Height
60.24″ / 153 cm (without Spreader)
Max Height without Center Column
60.2″ / 153 cm (without Spreader)
Minimum Working Height
10.24″ / 26 cm (without Spreader)
Closed Length
26.8″ / 68 cm
Materials
Aluminum, Carbon Fiber
Operating Temperature
-40 to 140°F / -40 to 60°C
Weight
6.4 lb / 2.9 kg
Leg Lock Type
Flip Lock
Leg Positions
3 Positions
Independent Leg Spread
Yes
Leg Sections
3
Bubble Level
None
Feet Features
Rubber, Removable, Spiked
SpreaderMid-Level, Ground (Included)
