Cooke 18mm T2.0 S7/i Full Frame Plus Prime Lens (PL Mount)
The Cooke 18mm T2.0 S7/i Full Frame Plus Prime Lens is designed to cover full frame cinema camera sensors up to at least the full sensor area of the RED Weapon 8K (46.31mm image circle). It is color-matched to other Cooke lenses to keep that well-known Cooke look, and has focus markings on both sides of the lens. A cam-type focus mechanism with a large lens barrel diameter and 270° of rotation from end-stop to end-stop allows for precision focus markings, especially at close focus.
The lens features a PL mount, which makes it compatible with most commonly used professional motion picture film and electronic cameras, and has an aperture range of T2.0 to T22. The PL mount incorporates i/Technology contacts that feed lens information metadata to a compatible camera, including focus distance, aperture and depth-of-field.
Specs
| Mount |
PL
|
| Focal Length |
18mm
|
| Aperture |
T2.0 to T22
|
| Maximum Format Size |
1.8″ (46.31 mm) diameter
|
| Minimum Object Distance (M.O.D.) |
16″ (400 mm)
|
| Close Focus |
From Lens Front: 6″ (158 mm)
|
| Scales |
Iris:
2 opposing linear T-stop scales (whole and third stops marked)Focus: 2 opposing focus scales (metric and feet) Scales marked from infinity to M.O.D. |
| Drive Gear |
Iris:
134 teeth 0.8 MOD 4 mm wide x 81 mm from the image planeFocus: 140 teeth 0.8 MOD 6 mm wide x 103 mm from the image plane |
| Rotation |
Angular Rotation between End Stops:
Focus Drive Gear: 270° Iris Drive Gear: 90° |
| Angle of View |
For Super 35mm Format: 78° (maximum diagonal)
For 24 x 36mm Format: 100° (maximum diagonal) |
| Length |
From Front of Lens to Lens Mount: 7.87″ (200 mm)
|
| Front Diameter |
4.33″ (110 mm)
|
| Weight |
7.7 lb (3.5 kg)
|
Cooke 25mm T2.0 S7/i Full Frame Plus Prime Lens (PL Mount)
The Cooke 25mm T2.0 S7/i Full Frame Plus Prime Lens is designed to cover full frame cinema camera sensors up to at least the full sensor area of the RED Weapon 8K (46.31mm image circle). It is color-matched to other Cooke lenses to keep that well-known Cooke look, and has focus markings on both sides of the lens. A cam-type focus mechanism with a large lens barrel diameter and 270° of rotation from end-stop to end-stop allows for precision focus markings, especially at close focus.
The lens features a PL mount, which makes it compatible with most commonly used professional motion picture film and electronic cameras, and has an aperture range of T2.0 to T22. The PL mount incorporates i/Technology contacts that feed lens information metadata to a compatible camera, including focus distance, aperture and depth-of-field.
Specs
| Mount |
PL
|
| Focal Length |
25mm
|
| Aperture |
T2.0 to T22
|
| Maximum Format Size |
1.8″ (46.31 mm) diameter
|
| Minimum Object Distance (M.O.D.) |
14″ (350 mm)
|
| Close Focus |
From Lens Front: 4″ (109 mm)
|
| Scales |
Iris:
2 opposing linear T-stop scales (whole and third stops marked) Focus: |
| Drive Gear |
Iris:
134 teeth 0.8 MOD 4 mm wide x 81 mm from the image plane Focus: |
| Rotation |
Angular Rotation between End Stops:
Focus Drive Gear: 270° Iris Drive Gear: 90° |
| Angle of View |
For Super 35mm Format: 61° (maximum diagonal)
For 24 x 36mm Format: 82° (maximum diagonal) |
| Length |
From Front of Lens to Lens Mount: 7.44″ (189 mm)
|
| Front Diameter |
4.33″ (110 mm)
|
| Weight |
7.28 lb (3.3 kg)
|

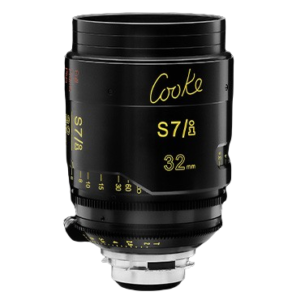

Cooke 32mm T2.0 S7/i Full Frame Plus Prime Lens (PL Mount)
The Cooke 32mm T2.0 S7/i Full Frame Plus Prime Lens is designed to cover full frame cinema camera sensors up to at least the full sensor area of the RED Weapon 8K (46.31mm image circle). It is color-matched to other Cooke lenses to keep that well-known Cooke look, and has focus markings on both sides of the lens. A cam-type focus mechanism and a large lens barrel diameter with 270° of rotation from end-stop to end-stop allows for precision focus pulls, especially at close focus.
The lens features a PL mount, which makes it compatible with most commonly used professional motion picture film and electronic cameras, and has an aperture range of T2.0 to T22. The PL mount incorporates i/Technology contacts that feed lens information metadata to a compatible camera, including focus distance, aperture and depth-of-field.
Specs
| Mount |
PL
|
| Focal Length |
32mm
|
| Aperture |
T2.0 to T22
|
| Maximum Format Size |
1.8″ (46.31 mm) diameter
|
| Minimum Object Distance (M.O.D.) |
14″ (350 mm)
|
| Close Focus |
From Lens Front: 4″ (109 mm)
|
| Scales |
Iris:
2 opposing linear T-stop scales (whole and third stops marked) Focus: |
| Drive Gear |
Iris:
134 teeth 0.8 MOD 4 mm wide x 81 mm from the image plane Focus: |
| Rotation |
Angular Rotation between End Stops:
Focus Drive Gear: 270° Iris Drive Gear: 90° |
| Angle of View |
For Super35mm Format: 50° (maximum diagonal)
For 24 x 36mm Format: 68° (maximum diagonal) |
| Length |
From Front of Lens to Lens Mount: 7.44″ (189 mm)
|
| Front Diameter |
4.33″ (110 mm)
|
| Weight |
7.5 lb (3.4 kg)
|

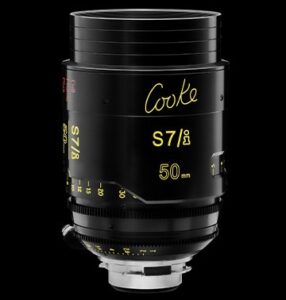

Cooke 50mm T2.0 S7/i Full Frame Plus Prime Lens (PL Mount)
The Cooke 50mm T2.0 S7/i Full Frame Plus Prime Lens is designed to cover full frame cinema camera sensors up to at least the full sensor area of the RED Weapon 8K (46.31mm image circle). It is color-matched to other Cooke lenses to keep that well-known Cooke look, and has focus markings on both sides of the lens. A cam-type focus mechanism and a large lens barrel diameter with 270° of rotation from end-stop to end-stop allows for precision focus pulls, especially at close focus.
The lens features a PL mount, which makes it compatible with most commonly used professional motion picture film and electronic cameras, and has an aperture range of T2.0 to T22. The PL mount incorporates i/Technology contacts that feed lens information metadata to a compatible camera, including focus distance, aperture and depth-of-field.
Specs
| Mount |
PL
|
| Focal Length |
50mm
|
| Aperture |
T2.0 to T22
|
| Maximum Format Size |
1.8″ (46.31 mm) diameter
|
| Minimum Object Distance (M.O.D.) |
20″ (500 mm)
|
| Close Focus |
From Lens Front: 10″ (259 mm)
|
| Scales |
Iris:
2 opposing linear T-stop scales (whole and third stops marked) Focus: |
| Drive Gear |
Iris:
134 teeth 0.8 MOD 4 mm wide x 81 mm from the image plane Focus: |
| Rotation |
Angular Rotation between End Stops:
Focus Drive Gear: 270° Iris Drive Gear: 90° |
| Angle of View |
For Super35mm Format: 33° (maximum diagonal)
For 24 x 36mm Format: 47° (maximum diagonal) |
| Length |
From Front of Lens to Lens Mount: 7.44″ (189 mm)
|
| Front Diameter |
4.33″ (110 mm)
|
| Weight |
7.5 lb (3.4 kg)
|
Cooke 75mm T2.0 S7/i Full Frame Plus Prime Lens (PL Mount)
The Cooke 75mm T2.0 S7/i Full Frame Plus Prime Lens is designed to cover full frame cinema camera sensors up to at least the full sensor area of the RED Weapon 8K (46.31mm image circle). It is color-matched to other Cooke lenses to keep that well-known Cooke look, and has focus markings on both sides of the lens. A cam-type focus mechanism and a large lens barrel diameter with 270° of rotation from end-stop to end-stop allows for precision focus pulls, especially at close focus.
The lens features a PL mount, which makes it compatible with most commonly used professional motion picture film and electronic cameras, and has an aperture range of T2.0 to T22. The PL mount incorporates i/Technology contacts that feed lens information metadata to a compatible camera, including focus distance, aperture and depth-of-field.
Specs
| Mount |
PL
|
| Focal Length |
75mm
|
| Aperture |
T2.0 to T22
|
| Maximum Format Size |
1.8″ (46.31 mm) diameter
|
| Minimum Object Distance (M.O.D.) |
19″ (475 mm)
|
| Close Focus |
From Lens Front: 9″ (234 mm)
|
| Scales |
Iris:
2 opposing linear T-stop scales (whole and third stops marked) Focus: |
| Drive Gear |
Iris:
134 teeth 0.8 MOD 4 mm wide x 81 mm from the image plane Focus: |
| Rotation |
Angular Rotation between End Stops:
Focus Drive Gear: 270° Iris Drive Gear: 90° |
| Angle of View |
For Super 35mm Format: 23° (maximum diagonal)
For 24 x 36mm Format: 32° (maximum diagonal) |
| Length |
From Front of Lens to Lens Mount: 7.44″ (189 mm)
|
| Front Diameter |
4.33″ (110 mm)
|
| Weight |
6.6 lb (3 kg)
|
Cooke 100mm T2.0 S7/i Full Frame Plus Prime Lens (PL Mount)
The Cooke 100mm T2.0 S7/i Full Frame Plus Prime Lens is designed to cover full frame cinema camera sensors up to at least the full sensor area of the RED Weapon 8K (46.31mm image circle). It is color-matched to other Cooke lenses to keep that well-known Cooke look, and has focus markings on both sides of the lens. A cam-type focus mechanism with a large lens barrel diameter and 270° of rotation from end-stop to end-stop allows for precision focus markings, especially at close focus.
The lens features a PL mount, which makes it compatible with most commonly used professional motion picture film and electronic cameras, and has an aperture range of T2.0 to T22. The PL mount incorporates i/Technology contacts that feed lens information metadata to a compatible camera, including focus distance, aperture and depth-of-field.
Specs
| Mount |
PL
|
| Focal Length |
100mm
|
| Aperture |
T2.0 to T22
|
| Maximum Format Size |
1.8″ (46.31 mm) diameter
|
| Minimum Object Distance (M.O.D.) |
30″ (700 mm)
|
| Close Focus |
From Lens Front: 18″ (459 mm)
|
| Scales |
Iris:
2 opposing linear T scales (whole and third stops marked) Focus: |
| Drive Gear |
Iris:
134 teeth 0.8 MOD 4 mm wide x 81 mm from the image plane Focus: |
| Rotation |
Angular Rotation between End Stops:
Focus Drive Gear: 270° Iris Drive Gear: 90° |
| Angle of View |
For Super 35mm Format: 17° (maximum diagonal)
For 24 x 36mm Format: 24° (maximum diagonal) |
| Length |
From Front of Lens to Lens Mount: 7.44″ (189 mm)
|
| Front Diameter |
4.33″ (110 mm)
|
| Weight |
7.28 lb (3.3 kg)
|

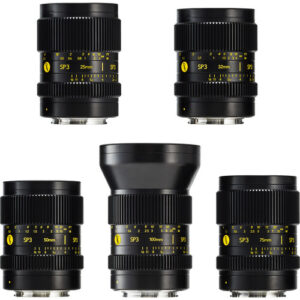

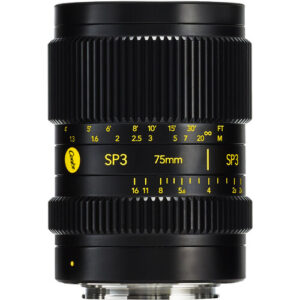

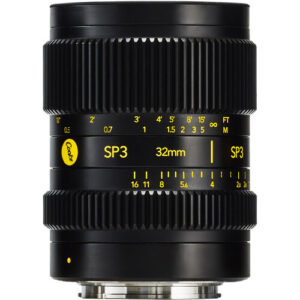

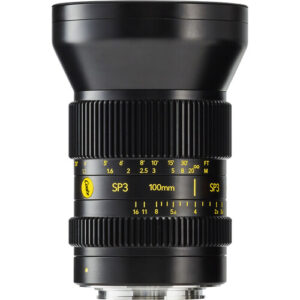

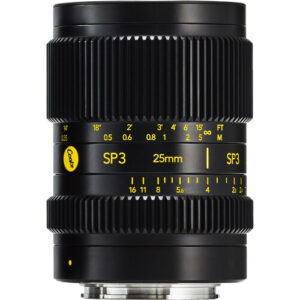

Cooke SP3 Full-Frame 5-Lens Prime Set (25/32/50/75/100mm, Sony E)
The SP3 Full-Frame 5-Lens Prime Set from Cooke comprises 25, 32, 50, 75, and 100mm lenses and a hard-shell lens case. These full-frame primes feature a fast T2.4 maximum aperture, a compact, lightweight design, user-changeable mounts, and consistent gear placement across the series.
| Focal Length |
25mm
|
| Maximum Aperture |
T2.4
|
| Lens Mount |
Sony E
|
| Lens Format Coverage |
Full-Frame
|
| Filter Thread |
58 mm x 0.75
|
| Image Stabilization |
No
|
| Maximum Aperture |
T2.4
|
| Minimum Aperture |
T16
|
| Lens Mount |
Sony E
|
| Interchangeable Mount |
Yes
|
| Lens Format Coverage |
Full-Frame
|
| Image Circle |
43.3 mm
|
| Angle of View |
Full Frame
Diagonal: 81° Super 35 Diagonal: 62° |
| Focus Scales |
Metric, Imperial
|
| Filter Thread |
58 mm x 0.75
|
| Minimum Focus Distance |
From Front of Lens: 5.5″ / 139 mm
|
| Aperture/Iris Blades |
9
|
| Image Stabilization |
No
|
| Gear Standard |
0.8 MOD
|
| Gear Rotation |
Focus: 160°
Iris: 78° |
| Diameter |
2.5″ / 64 mm
|
| Length |
3.9″ / 98 mm
|
| Weight |
1.3 lb / 575 g
|
