Arri Master Anamorphic Lenses

Name: Master Anamorphic MA 28/T1.9 Master Anamorphic MA 35/T1.9 Master Anamorphic MA 40/T1.9 Master Anamorphic MA 50/T1.9 Master Anamorphic MA 60/T1.9
Lens Mount(1): PL LDS PL LDS PL LDS PL LDS PL LDS
Aperture: T1.9 – T22 T1.9 – T22 T1.9 – T22 T1.9 – T22 T1.9 – T22
Close Focus(2): 0.65 m / 2’3″ 0.75 m / 2’6″ 0.70 m / 2’4″ 0.75 m / 2’6″ 0.90 m / 3′
Magnification Ratio(3): H: 1:32.3 V: 1:16.4 H: 1:32.3, V: 1: 16.1 H: 1:25.6, V: 1: 12.8 H: 1:22.2, V: 1: 11.1. H: 1:24.3, V: 1: 12.2
Length(4): 183 mm / 7.2″ 183 mm / 7.2″ 183 mm / 7.2″ 183 mm / 7.2″ 183 mm / 7.2″
Length(12): 235 mm / 9.3″ 235 mm / 9.3″ 235 mm / 9.3″ 235 mm / 9.3″ 235 mm / 9.3″
Entrance Pupil(6)(mm): -188 -179 -177 -171 -152
Entrance Pupil(6)(inch): -7.04 -7.04 -6.96 -6.75 -5.99
Angle of view H – V

Super 35 Cinemascop(8)

ID = 29.26 mm(7)

 78° – 36° 65° – 30° 59° – 26° 48° – 21° 41° – 18°
Maximum Housing Diameter: 114 mm / 4.5″ 114 mm / 4.5″ 114 mm / 4.5″ 114 mm / 4.5″ 114 mm / 4.5″
Front Diameter(5): 114 mm / 4.5″ 95 mm / 3.7″ 95 mm / 3.7″ 95 mm / 3.7″ 95 mm / 3.7″
Weight: 2,5 kg / 5,5lb 2,6 kg / 5,7lb 2,7 kg / 6lb 2,6 kg / 5,7lb









Name: Master Anamorphic MA 75/T1.9 Master Anamorphic MA 100/T1.9 Master Anamorphic MA 135/T1.9 Master Anamorphic MA 180/T2.8
Lens Mount(1): PL LDS PL LDS PL LDS
Aperture: T1.9 – T22 T1.9 – T22 T1.9 – T22 T2.8 – T22
Close Focus(2): 0.90 m / 3′ 0.95 m / 3’1” 1.20 m / 3’11” 1.5 m / 5′
Magnification Ratio(3): H: 1:19.6, V: 1: 9.8 H: 1:14.7, V: 1: 7.4 H: 1:15.6, V: 1: 7.8 H: 1:15.9 V: 1:7.9
Length(4): 183 mm / 7.2″ 210 mm / 8.1” 226 mm / 9.1″ 226 mm / 9.1”
Length(12): 235 mm / 9.3″ 262 mm / 10.2” 278 mm / 10.7″ 278 mm / 10.7”
Entrance Pupil(6)(mm) -137 -146 -129 -98
Entrance Pupil(6)(inch) -5.38 -5.74 -5.09 -3.86
Angle of view H – V

Super 35 Cinemascope(8)

ID = 29.26 mm(7)

 33° – 14° 25° – 11° 19° – 8° 14° – 6°
Maximum Housing Diameter: 114 mm / 4.5″ 114 mm / 4.5″ 114 mm / 4.5″ 114 mm / 4.5″
Front Diameter(5): 95 mm / 3.7″ 95 mm / 3.7″ 95 mm / 3.7″ 95 mm / 3.7″
Weight 2,6 kg / 5,7lb 3,1 kg / 6,8lb 3,8 kg / 8,4lb 3,2 kg / 7,1lb
Quick view

ARRIFLEX 416 PLUS HS

Quick view

ARRI Codex Compact Drive Dock

Supported Operating Systems
MacOS 10.14.4 or Higher
Windows 10
Interface
Thunderbolt 3 (Single Port)
Power Input
12 V, 2.5 A
Transfer Speed
Up to 20 Gb/s
Insertion / Extraction
10,000 Actions
Operating Temperature Range
23 to 104°F / -5 to 40°C
Dimensions
5.2 x 4.9 x 1.5″ / 132 x 124 x 37 mm
Weight
1.1 lb / 500 g
Quick view

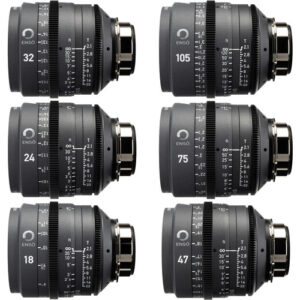

ARRI Ensō Prime Lenses

Technical Specifications

  • Format Compatibility: Full-frame (Large Format) sensors
  • Lens Mount: ARRI LPL with LDS-2 and Cooke /i lens data protocols
  • Aperture Range:
    • T2.1 for most focal lengths
    • T2.5 for 14mm and 150mm
    • T2.8 for 10.5mm and 250mm
  • Focal Lengths Available:
  • Close Focus Capability: 1:4 magnification ratio; for example, the 32mm lens focuses as close as 10 inches (25.4 cm)
  • Front Diameter: 95mm for most lenses, facilitating easy matte box compatibility.

Optical Characteristics

  • Native Look: Delivers natural image detail with stunning bokeh, gentle focus fall-off, and minimal focus breathing
  • Ensō Vintage Elements: Optional rear-mounted magnetic filters that allow cinematographers to modify the lens’s optical characteristics, offering three positive and three negative elements to achieve various vintage looks
  • Metadata Integration: Built-in chips provide real-time lens data (focus, iris, zoom) to compatible cameras, aiding in on-set monitoring and post-production workflows
Quick view

ARRI Enso 18mm T2.1 Prime Lens

T-stop:  T2.1

Length: 117mm/4.6”

Front Diameter: 95mm

Weight: 1.4kg/ 3.1 lb

Close Focus: 0.2/ 8″

Quick view

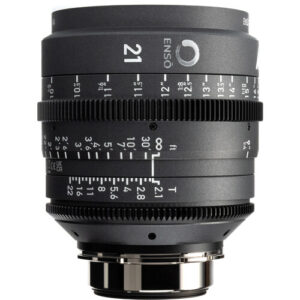

ARRI Enso 21mm T2.1 Prime Lens

ARRI Ensō Primes 21 mm
Optical Parameters
Focal length  21 mm
T-stop T2.1
Close focus 0.22 m / 8.5″
Length 117 mm / 4.6″
Weight 1.4 kg / 3.1 lb
Front diameter 95 mm
Magnification ratio at MOD 1:4
Entrance pupil position
(related to image plane, in direction to object plane)		 131.6 mm / 5.2″
Angle of view H-V-D for LF Open Gate 83,2° / 63,3° / 94,4°
Physical Dimensions
Lens barrel Aluminum
Focus barrel rotation 318°
Iris barrel rotation 48°
Gear Module 0.8
Interfaces
Lens mount LPL
Lens data system LDS-2 or Cooke/i
Electronic magnetic rear filter interface yes
Quick view

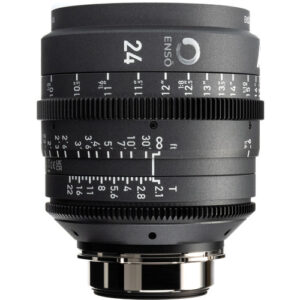

ARRI Enso 24mm T2.1 Prime Lens

ARRI Ensō Primes 24 mm
Optical Parameters
Focal length 24 mm
T-stop T2.1
Close focus 0.23 m / 9″
Length 117 mm / 4.6″
Weight 1.4 kg / 3.1 lb
Front diameter 95 mm
Magnification ratio at MOD 1:4
Entrance pupil position
(related to image plane, in direction to object plane)		 131.8 mm / 5.2″
Angle of view H-V-D for LF Open Gate 75,2° / 56,44° / 86,1°
Physical Dimensions
Lens barrel Aluminum
Focus barrel rotation 318°
Iris barrel rotation 48°
Gear Module 0.8
Interfaces
Lens mount LPL
Lens data system LDS-2 or Cooke/i
Electronic magnetic rear filter interface yes
Quick view

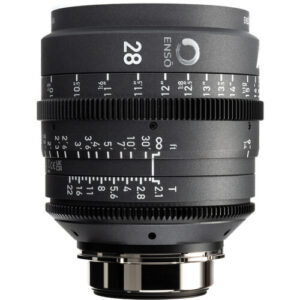

ARRI Enso 28mm T2.1 Prime Lens

ARRI Ensō Primes 28 mm
Optical Parameters
Focal length 28 mm
T-stop T2.1
Close focus 0.23 m / 9″
Length 117 mm / 4.6″
Weight 1.5 kg / 3.3 lb
Front diameter 95 mm
Magnification ratio at MOD 1:4
Entrance pupil position
(related to image plane, in direction to object plane)		 118.8 mm / 4.7″
Angle of view H-V-D for LF Open Gate 66,9° / 49,4° / 77,3°
Physical Dimensions
Lens barrel Aluminum
Focus barrel rotation 318°
Iris barrel rotation 48°
Gear Module 0.8
Interfaces
Lens mount LPL
Lens data system LDS-2 or Cooke/i
Electronic magnetic rear filter interface yes
Quick view

ARRI Enso 32mm T2.1 Prime Lens

ARRI Ensō Primes 32 mm
Focal length 32 mm
T-stop T2.1
Close focus 0.25 m / 10″
Length 117 mm / 4.6″
Weight 1.4 kg / 3.1 lb
Front diameter 95 mm
Magnification ratio at MOD 1:4
Entrance pupil position
(related to image plane, in direction to object plane)		 119.5 mm / 4.7″
Angle of view H-V-D for LF Open Gate 59,7° / 43,6° / 69,8°
Physical Dimensions
Lens barrel Aluminum
Focus barrel rotation 318°
Iris barrel rotation 48°
Gear Module 0.8
Interfaces
Lens mount LPL
Lens data system LDS-2 or Cooke/i
Electronic magnetic rear filter interface yes
Quick view

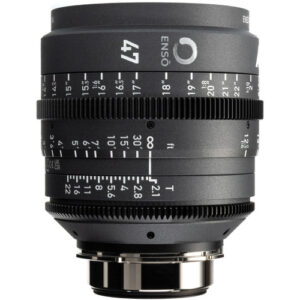

ARRI Enso 47mm T2.1 Prime Lens

ARRI Ensō Primes 47 mm
Focal length 47 mm
T-stop T2.1
Close focus 0.32 m / 12.5″
Length 117 mm / 4.6″
Weight 1.3 kg / 2.9 lb
Front diameter 95 mm
Magnification ratio at MOD 1:4
Entrance pupil position
(related to image plane, in direction to object plane)		 124.5 mm / 4.9″
Angle of view H-V-D for LF Open Gate 42,8° / 30,5° / 51,1°
Physical Dimensions
Lens barrel Aluminum
Focus barrel rotation 318°
Iris barrel rotation 48°
Gear Module 0.8
Interfaces
Lens mount LPL
Lens data system LDS-2 or Cooke/i
Electronic magnetic rear filter interface yes
Quick view

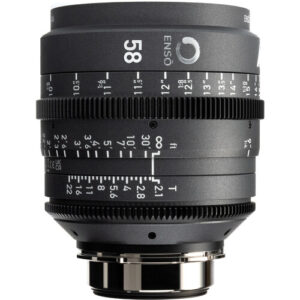

ARRI Enso 58mm T2.1 Prime Lens

ARRI Ensō Primes 58 mm
Optical Parameters
Focal length 58 mm
T-stop T2.1
Close focus 0.36 m / 14″
Length 117 mm / 4.6″
Weight 1.5 kg / 3.3 lb
Front diameter 95 mm
Magnification ratio at MOD 1:4
Entrance pupil position
(related to image plane, in direction to object plane)		 115.6 mm / 4.6″
Angle of view H-V-D for LF Open Gate 35,12° / 24,8° / 42,1°
Physical Dimensions
Lens barrel Aluminum
Focus barrel rotation 318°
Iris barrel rotation 48°
Gear Module 0.8
Interfaces
Lens mount LPL
Lens data system LDS-2 or Cooke/i
Electronic magnetic rear filter interface yes
Quick view

ARRI Enso 75mm T2.1 Prime Lens

ARRI Ensō Primes 75 mm
Optical Parameters
Focal length 75 mm
T-stop T2.1
Close focus 0.43 m / 17″
Length 123 mm / 4.8″
Weight 1.5 kg / 3.3 lb
Front diameter 95 mm
Magnification ratio at MOD 1:4
Entrance pupil position
(related to image plane, in direction to object plane)		 119.9 mm / 4.7″
Angle of view H-V-D for LF Open Gate 27,6° / 19,4° / 33,4°
Physical Dimensions
Lens barrel Aluminum
Focus barrel rotation 318°
Iris barrel rotation 48°
Gear Module 0.8
Interfaces
Lens mount LPL
Lens data system LDS-2 or Cooke/i
Electronic magnetic rear filter interface yes
Quick view

ARRI Enso 105mm T2.1 Prime Lens

ARRI Ensō Primes 105 mm
Optical Parameters
Focal length 105 mm
T-stop T2.1
Close focus 0.59 m / 23.5″
Length 123 mm / 4.8″
Weight 1.6 kg / 3.5 lb
Front diameter 95 mm
Magnification ratio at MOD 1:4
Entrance pupil position
(related to image plane, in direction to object plane)		 122.7 mm / 4.8″
Angle of view H-V-D for LF Open Gate 19,8° / 13,9° / 23,9°
Physical Dimensions
Lens barrel Aluminum
Focus barrel rotation 318°
Iris barrel rotation 48°
Gear Module 0.8
Interfaces
Lens mount LPL
Lens data system LDS-2 or Cooke/i
Electronic magnetic rear filter interface yes
Quick view

ARRI Enso 150mm T2.5 Prime Lens

ARRI Ensō Primes 150 mm
Optical Parameters
Focal length 150 mm
T-stop T2.5
Close focus 0.77 m / 30.5″
Length 152 mm / 6.0″
Weight 1.9 kg / 4.2 lb
Front diameter 95 mm
Magnification ratio at MOD 1:4
Entrance pupil position
(related to image plane, in direction to object plane)		 131.5 mm / 5.2″
Angle of view H-V-D for LF Open Gate 13,9° / 9,7° / 16,9°
Physical Dimensions
Lens barrel Aluminum
Focus barrel rotation 318°
Iris barrel rotation 47.5°
Gear Module 0.8
Interfaces
Lens mount LPL
Lens data system LDS-2 or Cooke/i
Electronic magnetic rear filter interface yes
Quick view

ARRI Enso Vintage Elements Kit

Ensō Vintage Elements Focal Length

multiplier

 Focal Length

multiplier [%]

 Exposure change

(stops)

 Open aperture

for T2.1 lens
Ensō VE 350P 0.934 6.6 0.20 1.96
Ensō VE 200P 0.959 4.1 0.13 2.01
Ensō VE 100P 0.979 2.1 0.06 2.06
No Filter 1 1 0 2.1
Ensō VE 100N 1.03 3 -0.08 2.16
Ensō VE 200N 1.063 6.3 -0.17 2.23
Ensō VE 350N 1.099 9.9 -0.28 2.31
