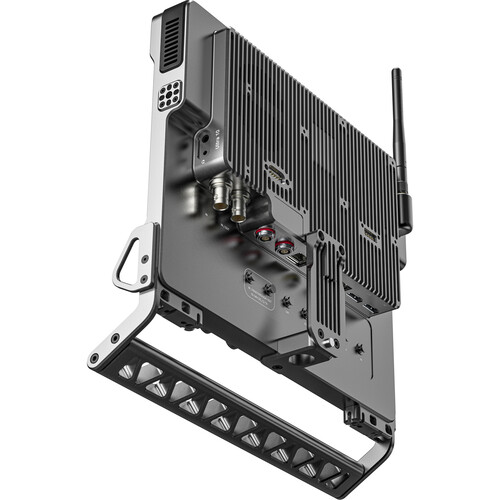

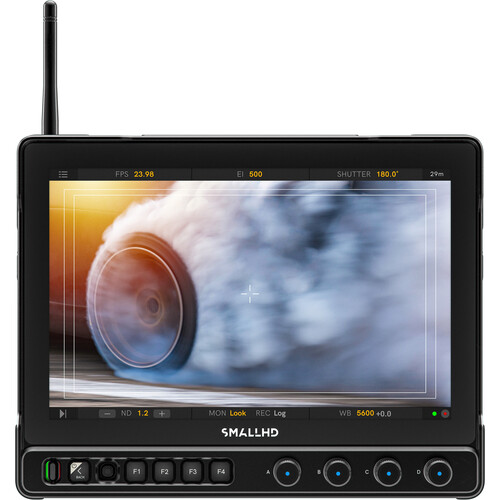

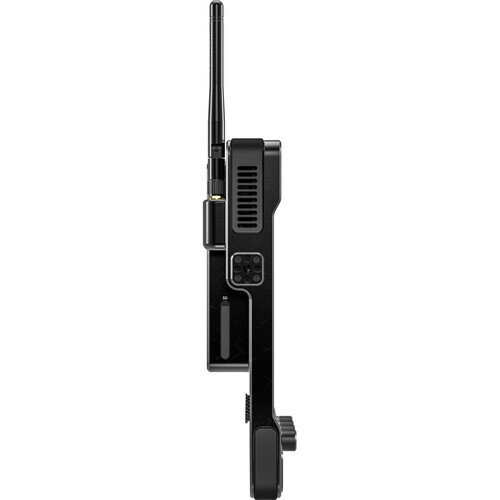

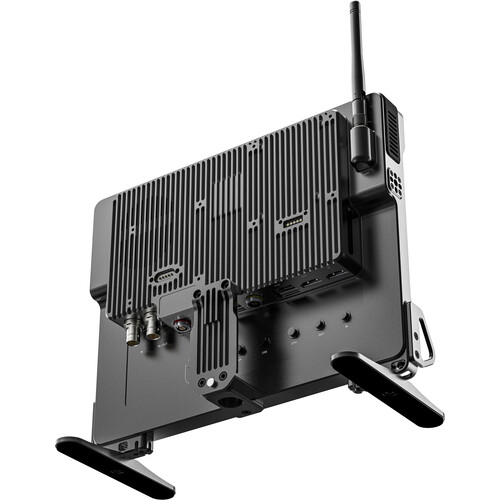

SmallHD ULTRA 10 4K Monitor

The 10″ monitor features a bright 2000 cd/m² display, a 1920 x 1200 touchscreen QD-LCD, wireless Teradek Bolt compatibility, HDMI 2.0, and 6G-SDI inputs/outputs that support up to 4K30 resolutions. Easily control ARRI, Sony, and RED cinema cameras from the monitor thanks to the 5-pin USB and Ethernet control ports.

Specs

Display Size	10.1″ / 25.7 cm
Native Resolution	1920 x 1200
Touchscreen	Yes
HDR Support	Not Specified by Manufacturer
Video I/O	1x HDMI 1.4 Input 1x HDMI 1.4 Output 1x BNC (12G-SDI) Input 1x BNC (12G-SDI) Input/Output
Media/Memory Card Slot	Single Slot: SD (Unspecified Type) [LUT/Firmware Update Only]
Video Format	HDMI UHD 4K: 30/29.97/25/24/23.98 1080p: 120/100/60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 120/119.88/100/60/59.94/50 480p: 120/119.88/100/60/59.94/50 480i: 60/59.94 576p: 50 576i: 50 SDI 1080p: 120/100/60/59.94/50/30/29.97/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 120/119.88/100/60/59.94/50 480p: 120/119.88/100/60/59.94/50 480i: 60/59.94 576p: 50 576i: 50
Battery	Interchangeable Mount (No Plate Included)

Display

Panel Type	IPS-Type LCD
Display Size	10.1″ / 25.7 cm
Native Resolution	1920 x 1200
Aspect Ratio	16:10
Touchscreen	Yes
Maximum Brightness	200 nits / cd/m²
Contrast Ratio	1000:1
HDR Support	Not Specified by Manufacturer
LUT Support	Yes
Image Controls	Anamorphic De-Squeeze, False Color, Focus Assist, Focus Peaking, Histogram, Image Flip, Image Freeze, Image Rotate, Pixel Zoom, RGB Parade, Scaling, Screen Markers, Vectorscope, Waveform, Zebra

Inputs/Outputs

Video I/O	1x HDMI 1.4 Input 1x HDMI 1.4 Output 1x BNC (12G-SDI) Input 1x BNC (12G-SDI) Input/Output
Audio I/O	1x 1/8″ / 3.5 mm Headphone Output
Power I/O	1x LEMO 0B 2-Pin (12 VDC) Input
Other I/O	1x RJ45 (GPI) Input/Output
Media/Memory Card Slot	Single Slot: SD (Unspecified Type) [LUT/Firmware Update Only]

Wireless

Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No

Format Support

Video Format

HDMI
UHD 4K: 30/29.97/25/24/23.98
1080p: 120/100/60/59.94/50/30/29.97/25/24/23.98
1080i: 120/119.88/100/60/59.94/50
720p: 120/119.88/100/60/59.94/50
480p: 120/119.88/100/60/59.94/50
480i: 60/59.94
576p: 50
576i: 50
SDI
1080p: 120/100/60/59.94/50/30/29.97/25/24/23.98
1080i: 120/119.88/100/60/59.94/50
720p: 120/119.88/100/60/59.94/50
480p: 120/119.88/100/60/59.94/50
480i: 60/59.94
576p: 50
576i: 50
