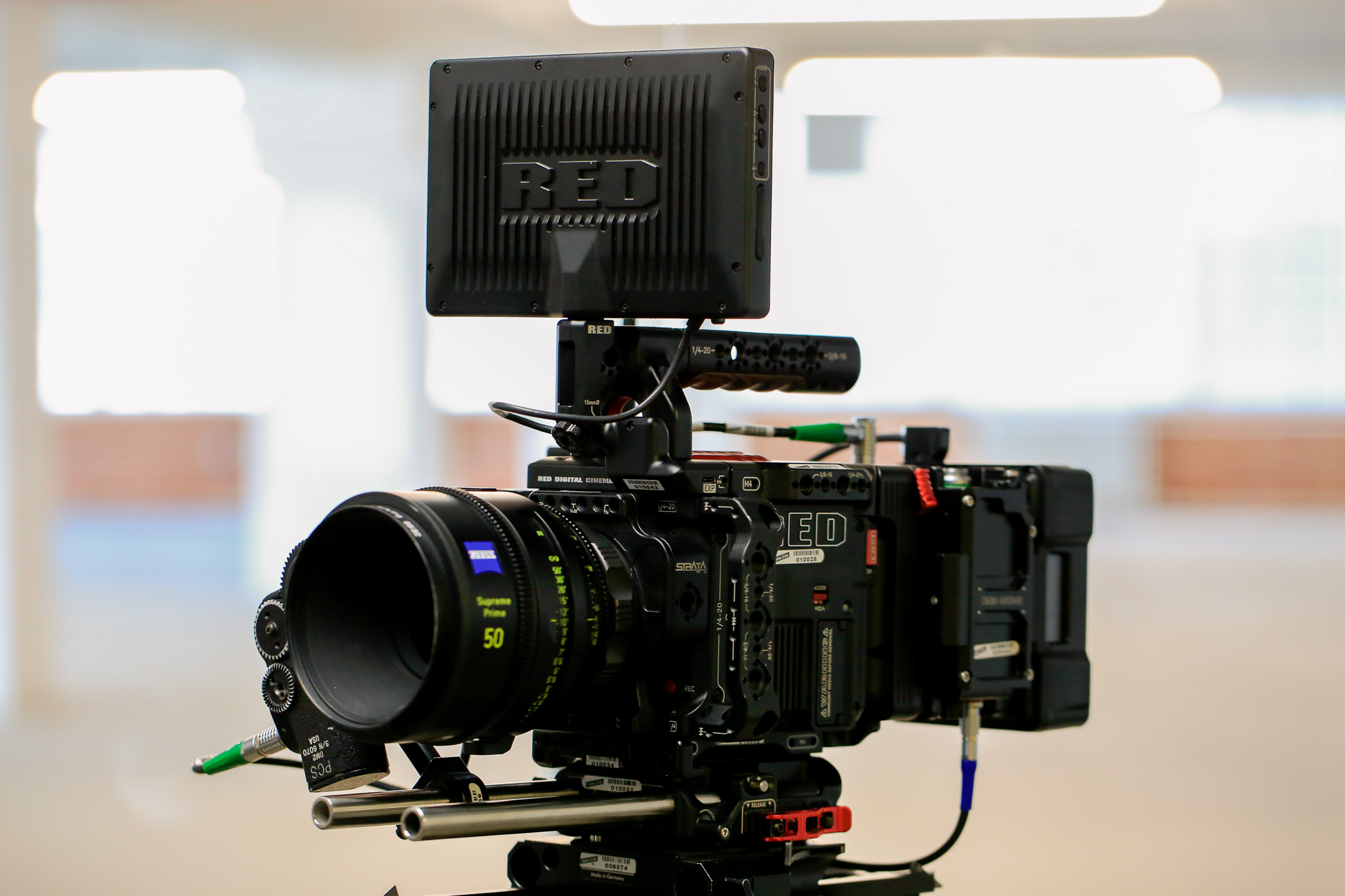

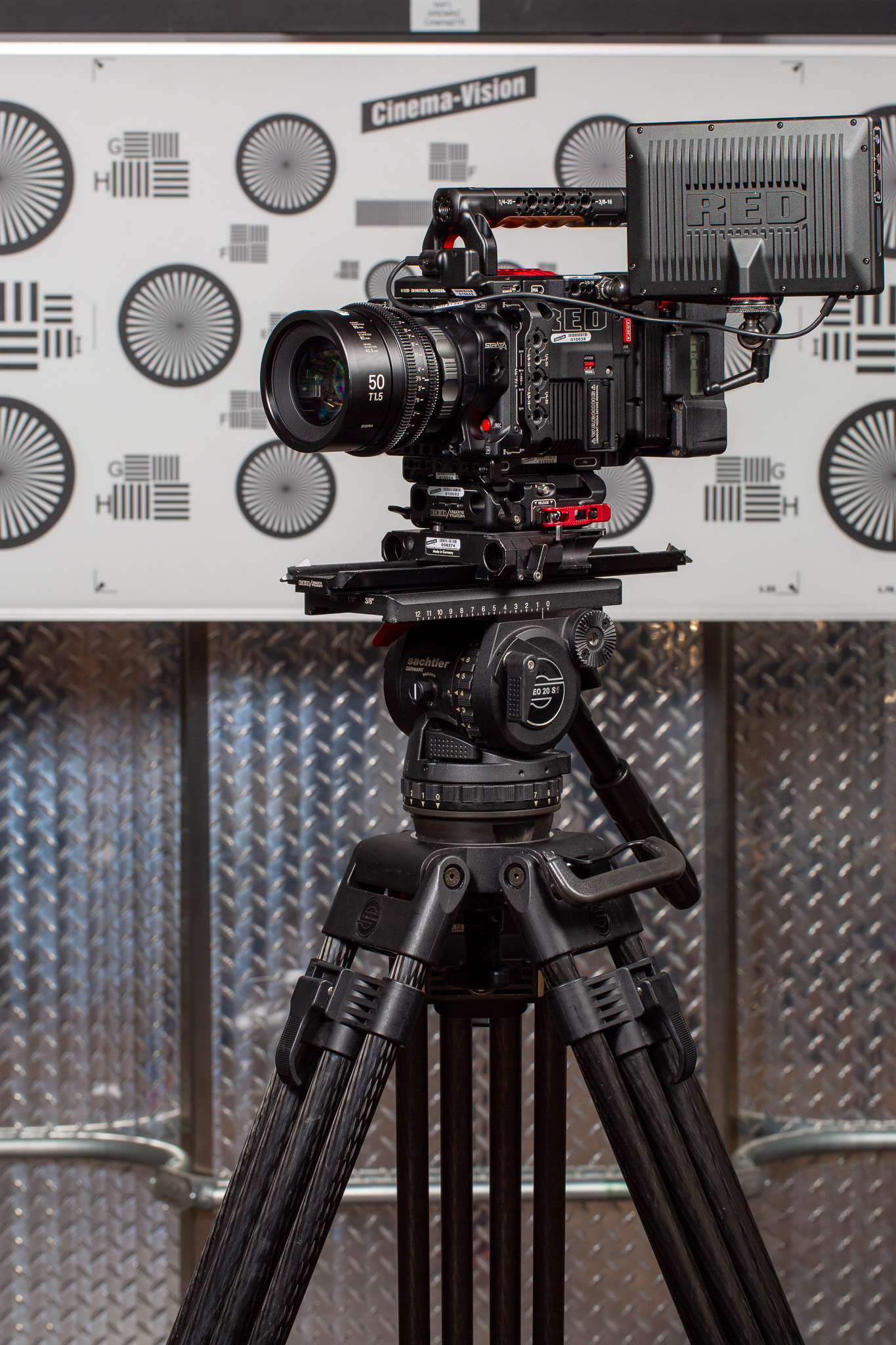

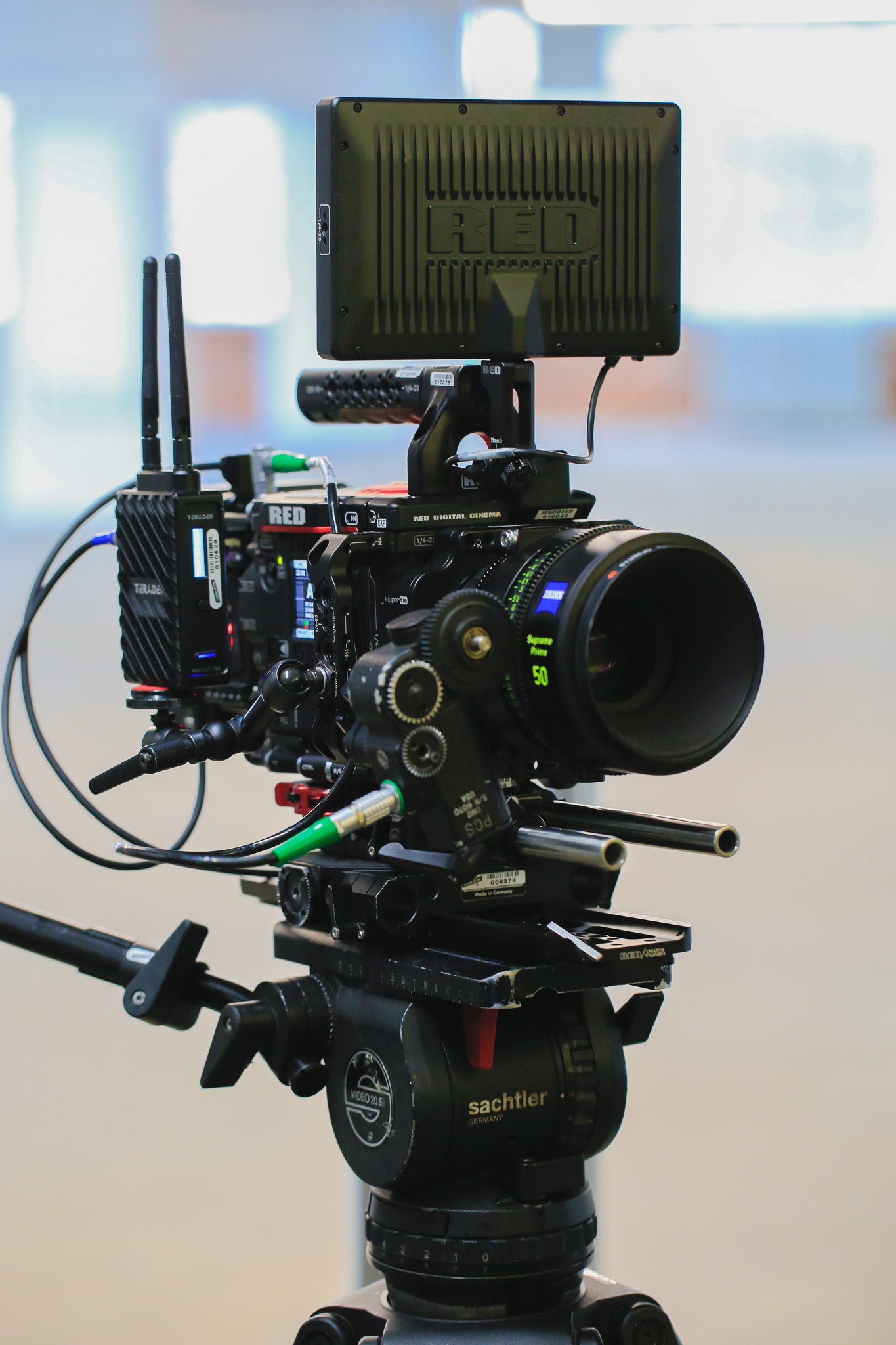

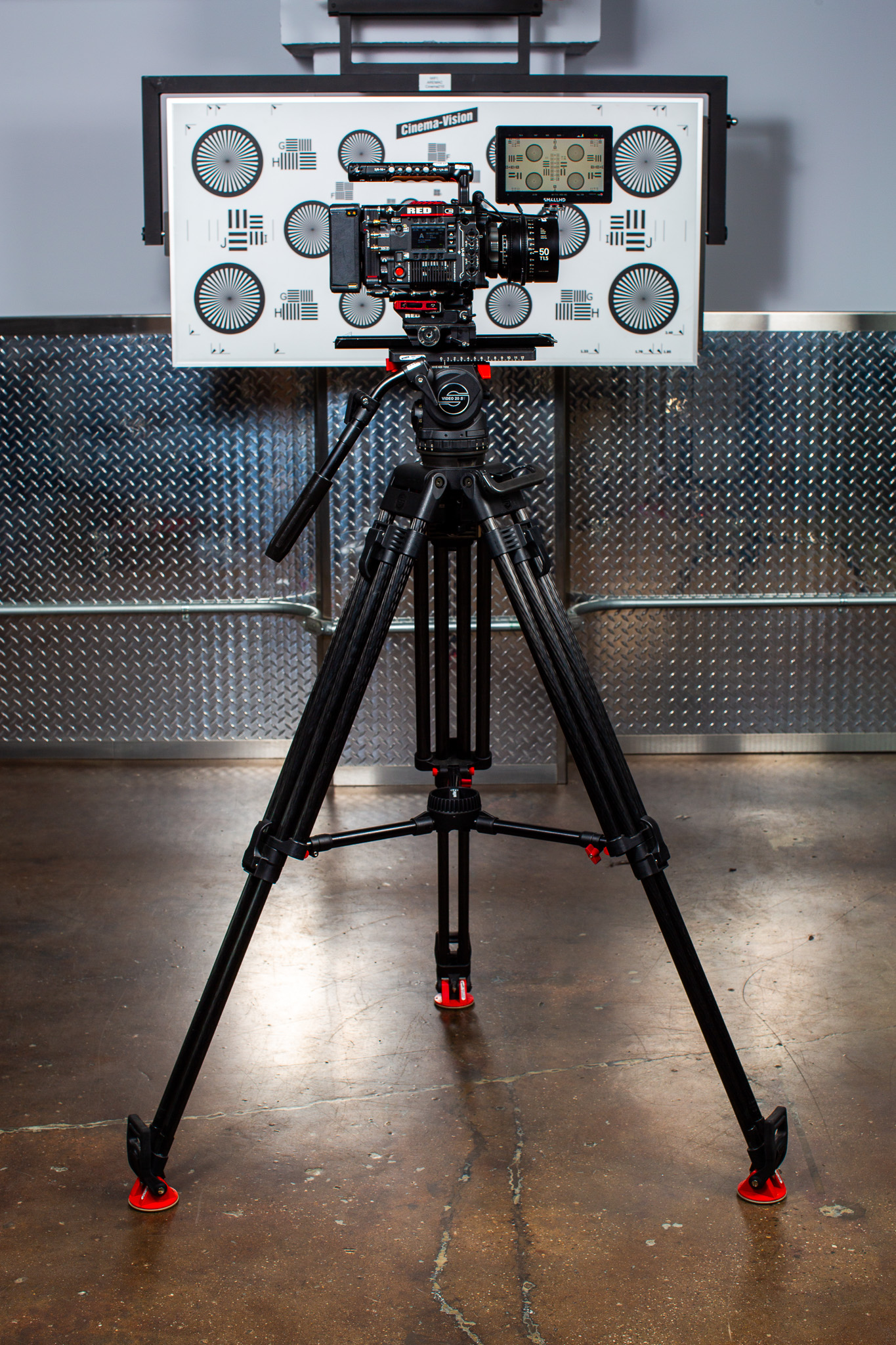

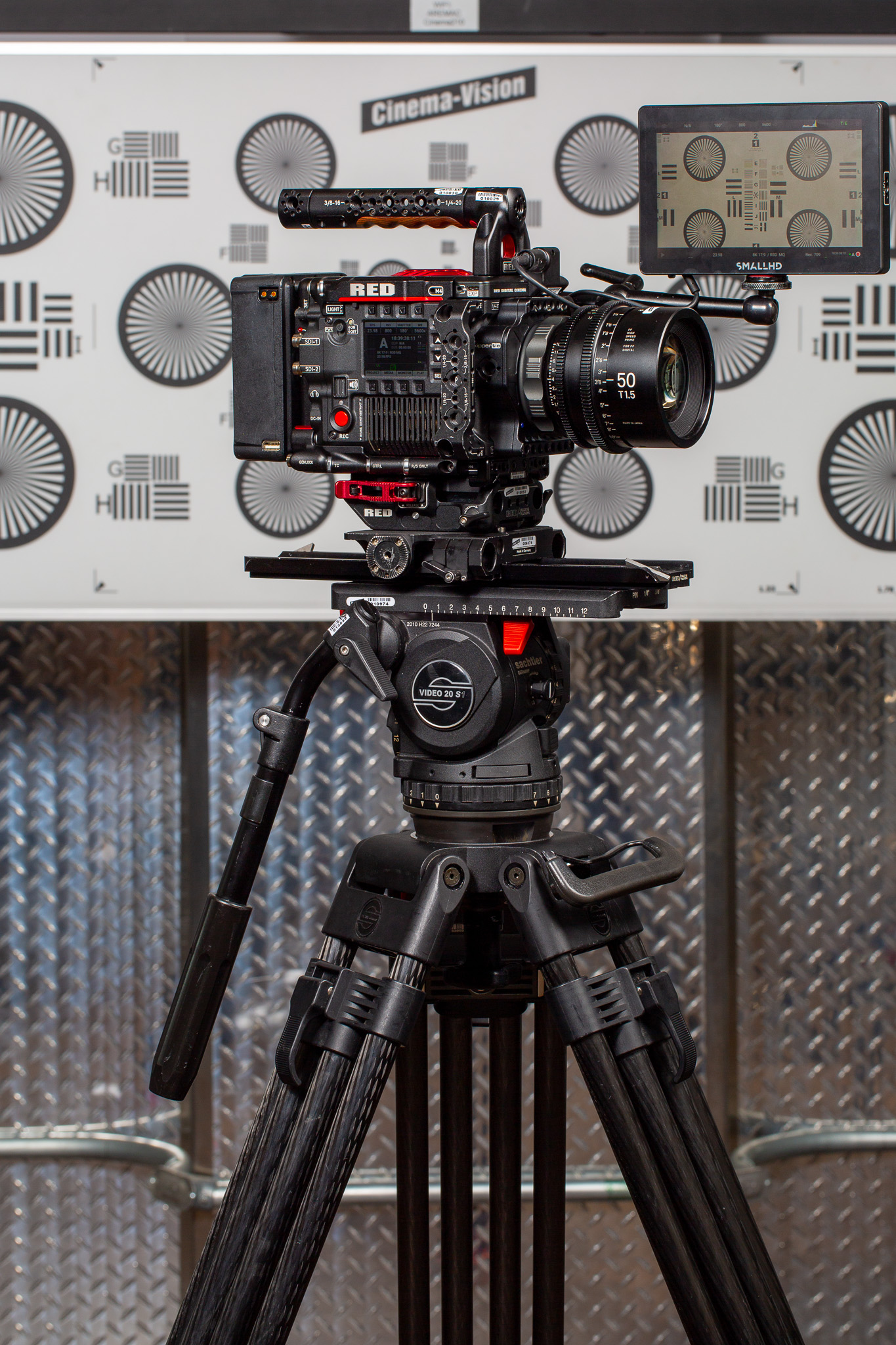

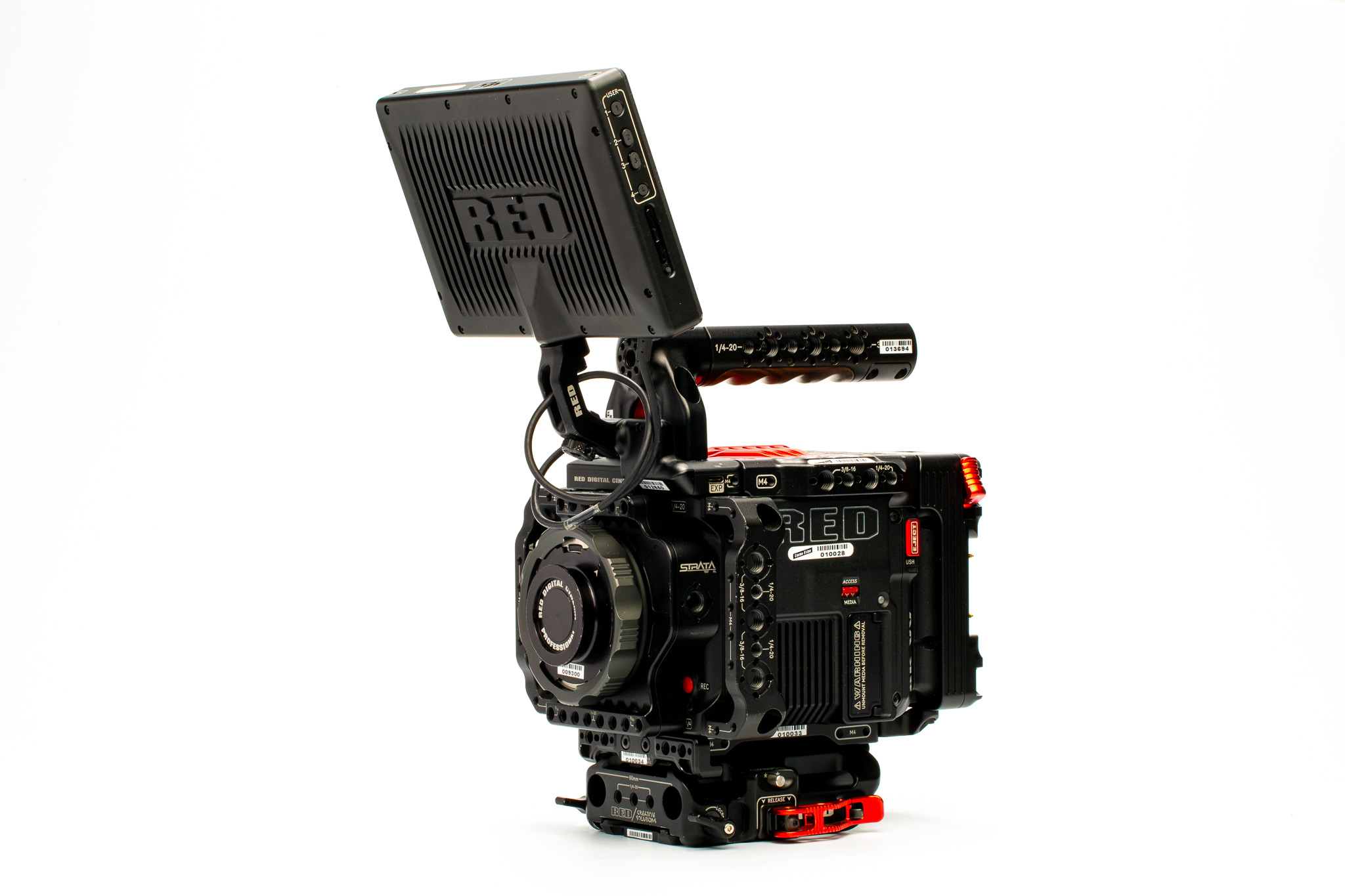

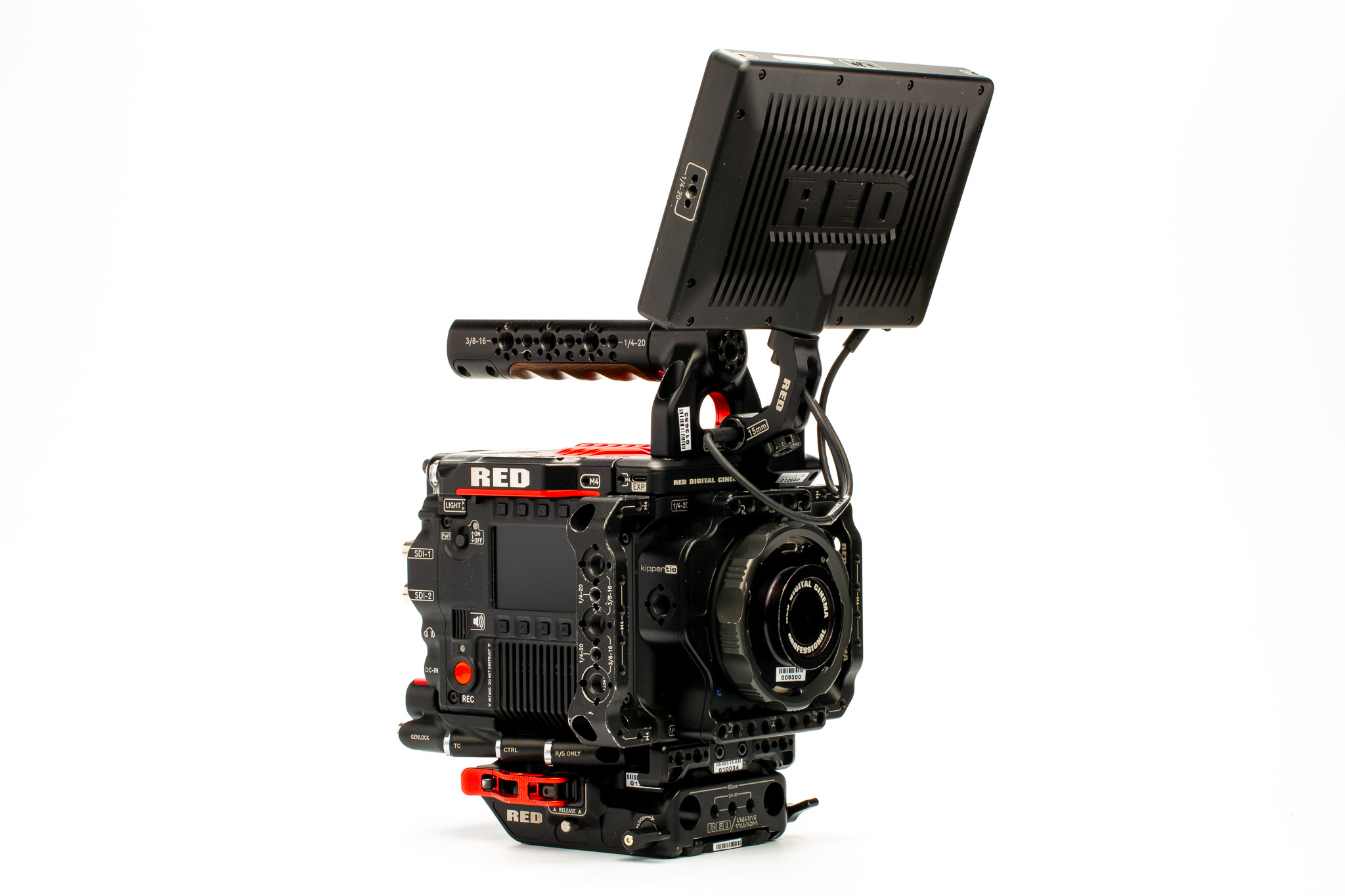

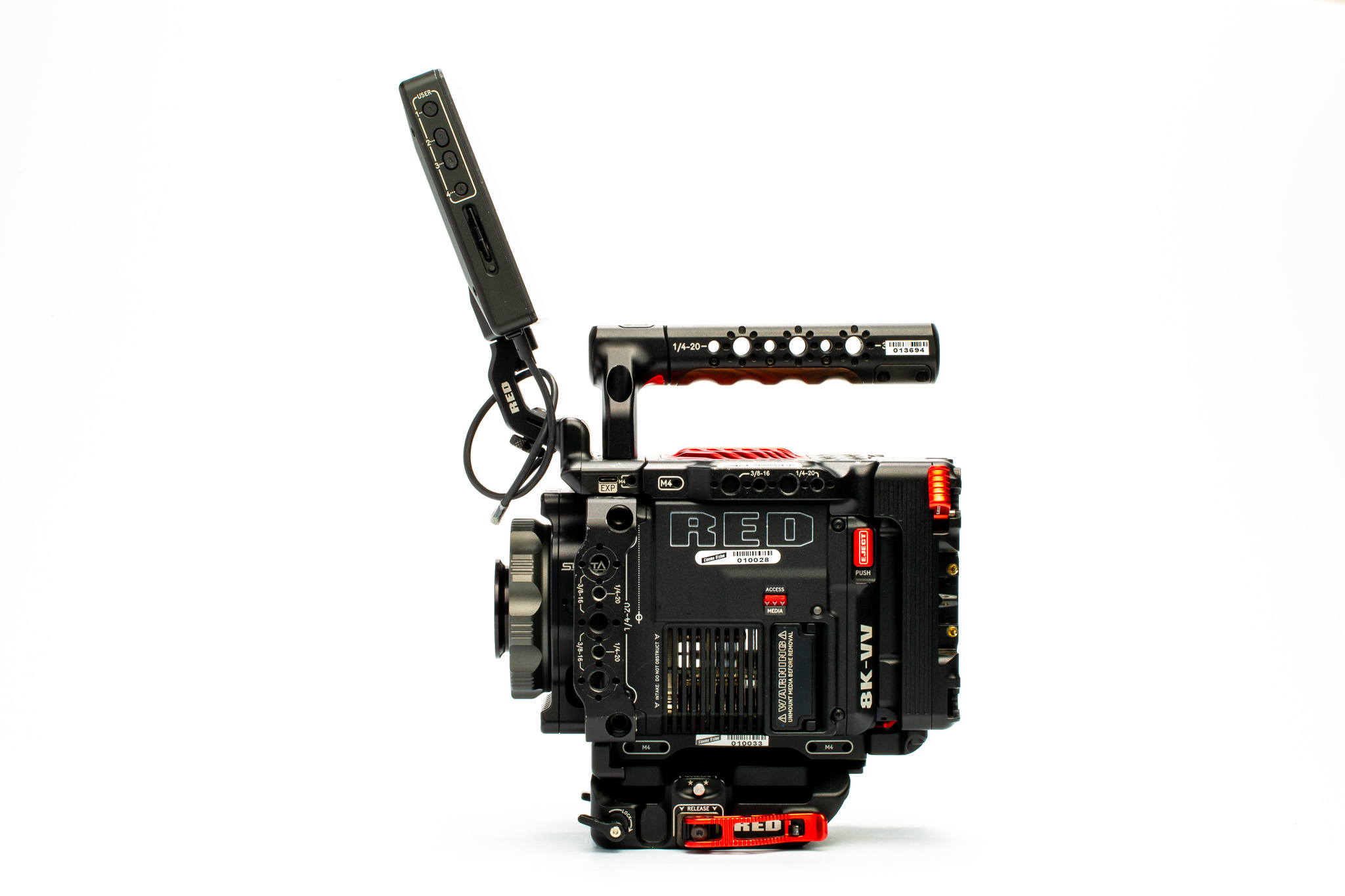

Red V-Raptor

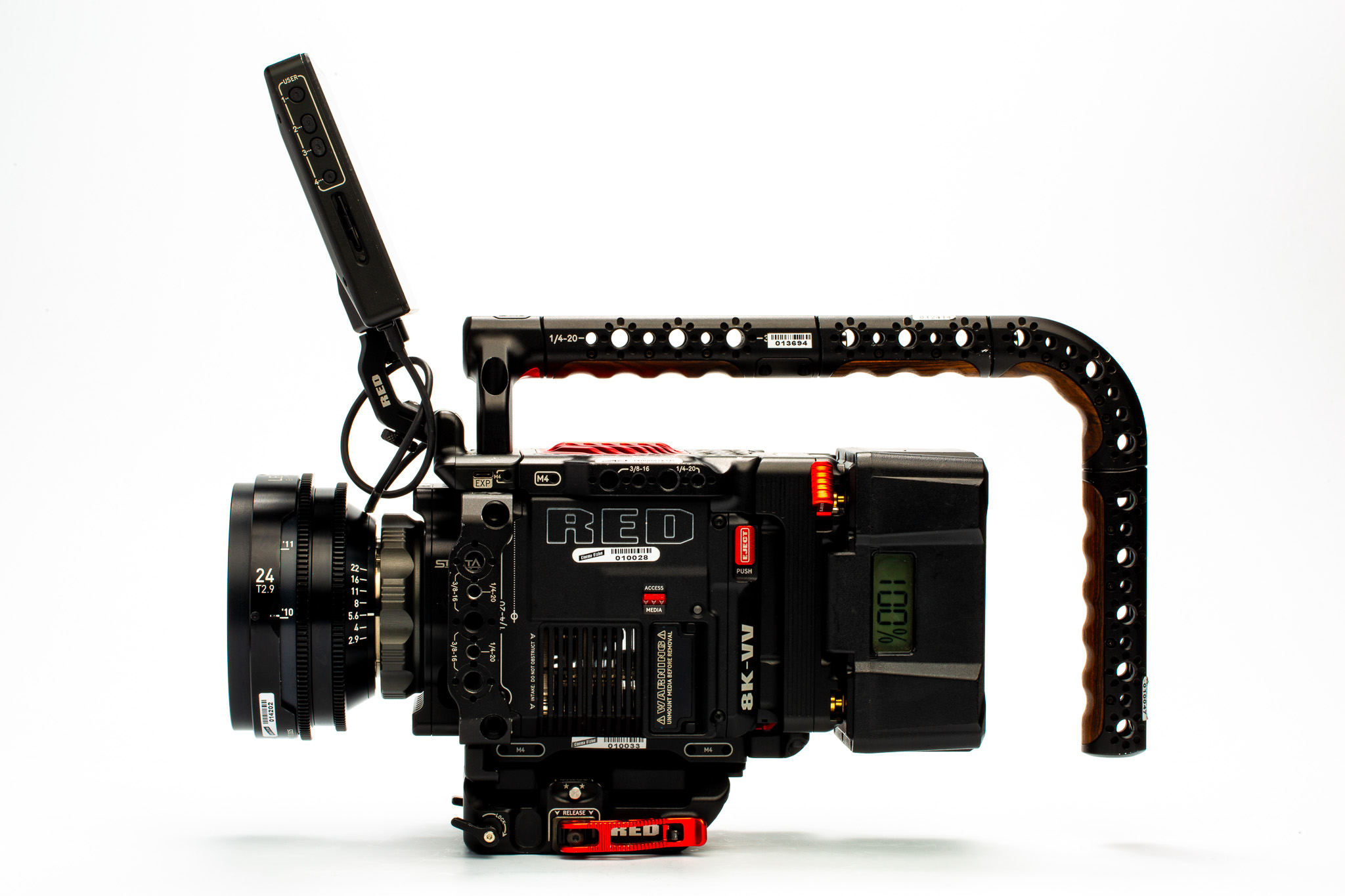

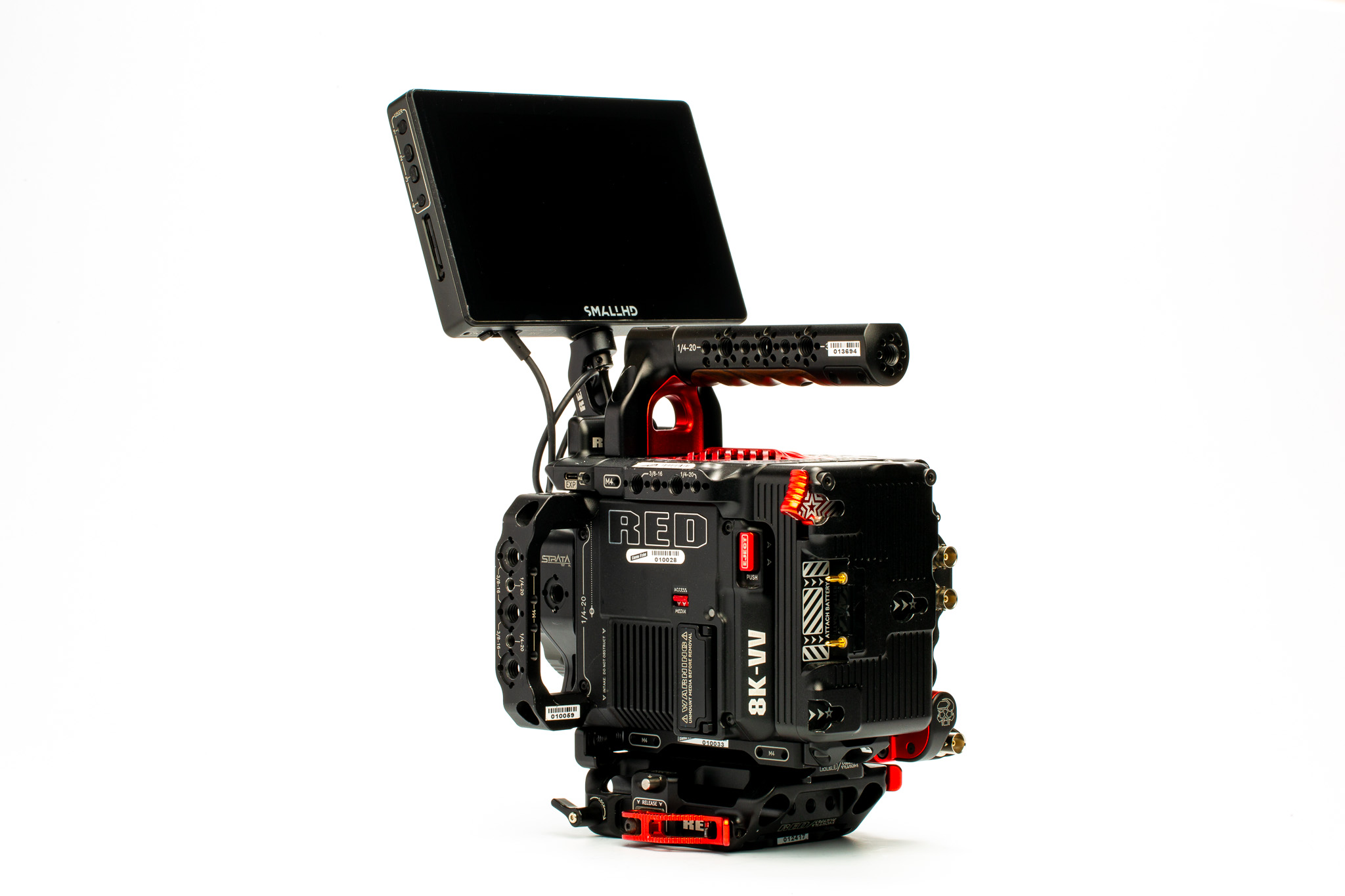

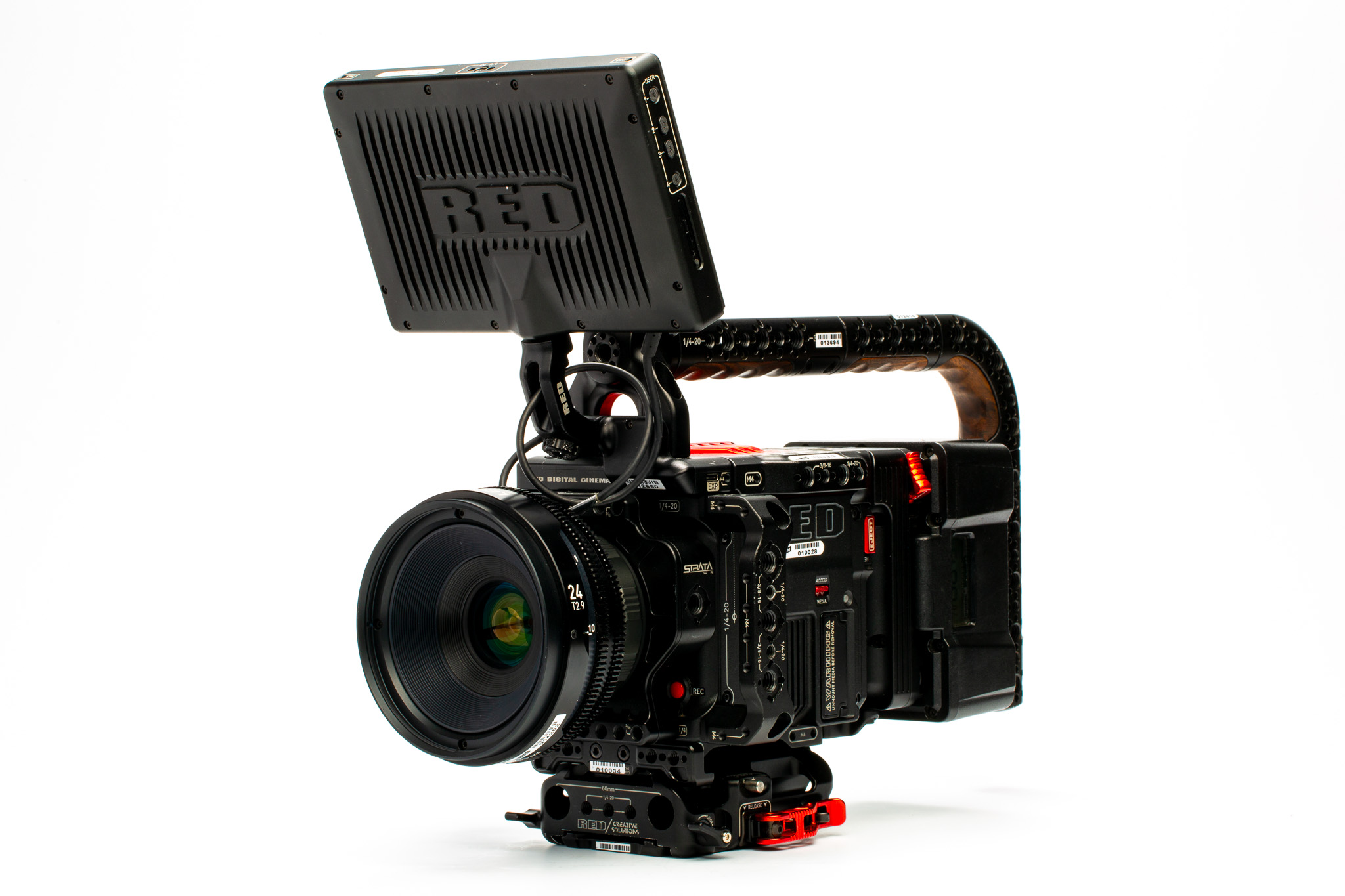

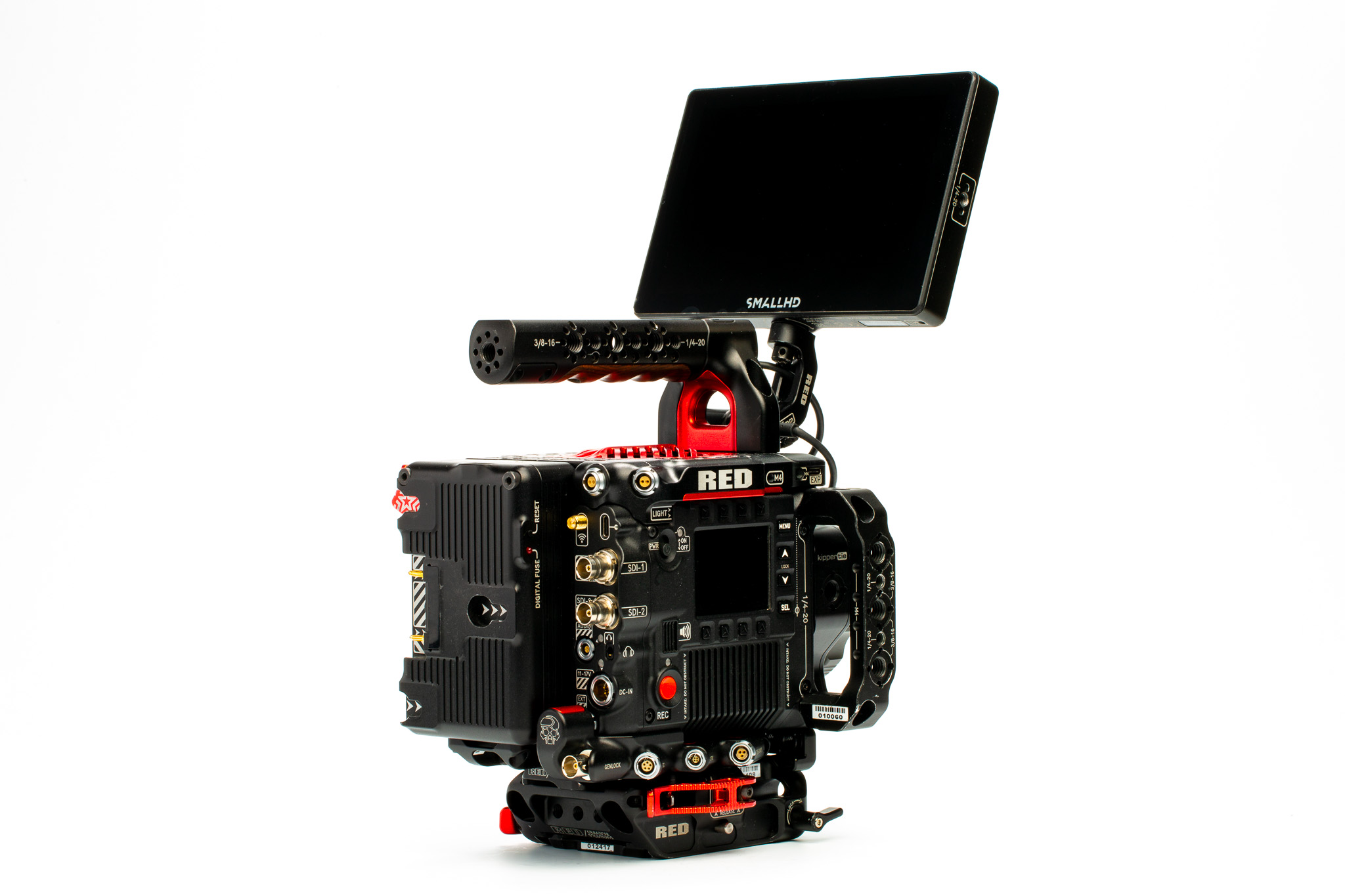

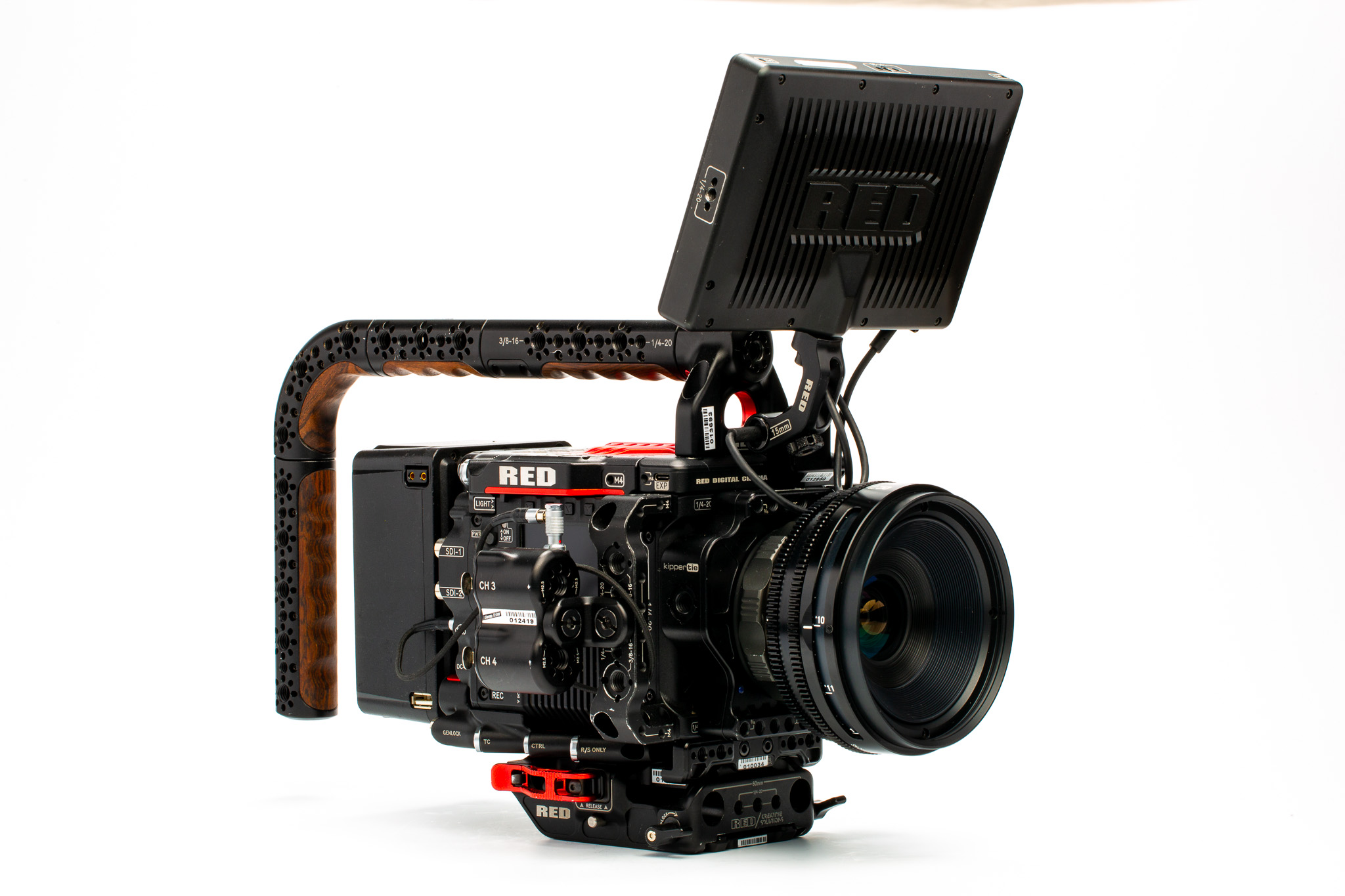

Compact, fast, and full-frame—the black V-RAPTOR 8K VV Camera is an impressive introduction to RED DIGITAL CINEMA‘s new DSMC3 platform. Sized only slightly larger than the KOMODO but boasting a new sensor, the V-RAPTOR offers multi-format capture in 8K VV, 6K Super35, 4K, 3K Super16, and anamorphic options. This versatility enables you to adapt your format from project to project to suit your choice of a variety of pro cine or still photo lenses. The V-RAPTOR’s RF lens mount can be used with numerous lens adapters, and it has a locking ring that provides additional security for use with heavier lenses and steady, wide-open capture.

SPECS:

SENSOR: V-RAPTOR™ 8K VV 35.4 Megapixel CMOS (40.96 mm x 21.60 mm (Diagonal: 46.31 mm))

EFFECTIVE PIXELS: 8192 × 4320

DYNAMIC RANGE: 17+ stops

MOUNT: Canon RF mount

MAX DATA RATES: Up to 800 MB/s using RED branded or other qualified CFexpress media cards[1]

REDCODE® RAW MAX FRAME RATES: 120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456)/ 140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024)/ 160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592)/ 192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160)/ 240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728)/ 320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296)/ 480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864)

AVAILABLE REDCODE SETTINGS: REDCODE HQ, MQ and LQ at 8K 17:9 (8192 x 4320) up to 60 fps/ REDCODE LQ at 8K 17:9 (8192 x 4320) up to 120 fps/ REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 96 fps/ REDCODE MQ and LQ at 6K 17:9 (6144 x 3240) up to 160 fps/ REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 240 fps/ REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 480 fps

REDCODE® RAW ACQUISITION FORMATS: 8K 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x/ 7K 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x/ 6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x/ 5K 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1/ 4K 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1/ 3K 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1/ 2K 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1

APPLE PRORES: Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT with resolutions up to 4K (4096×2160)/ Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080)

WEIGHT: 4.03 lbs (without body cap and CFexpress card)

DIMENSIONS: 6″ x 4.25″ x 4.25″ (L x W x H)

BATTERY TYPE: Gold Mount

OPERATING TEMPERATURE: 0°C to 40°C (32°F to 104°F)

STORAGE TEMPERATURE: –20°C to 50°C (–4°F to 122°F)

AUDIO: Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz/ Integrated dual channel mic/line/+48V input via 5-pin Audio Port, uncompressed, 24-bit 48 kHz
