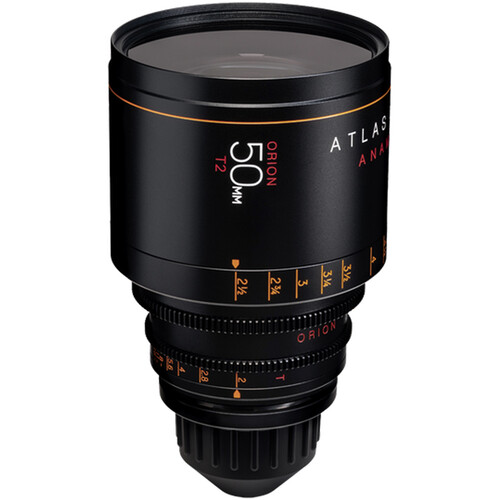

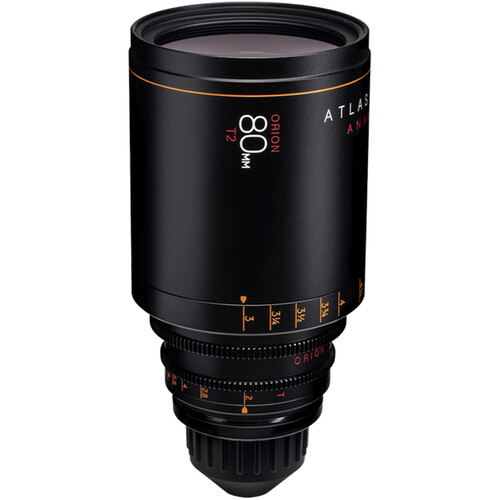

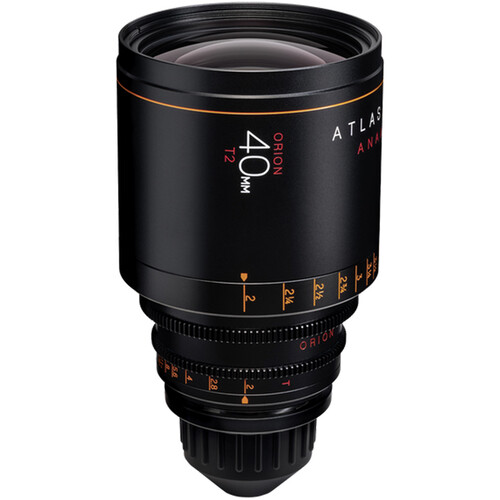

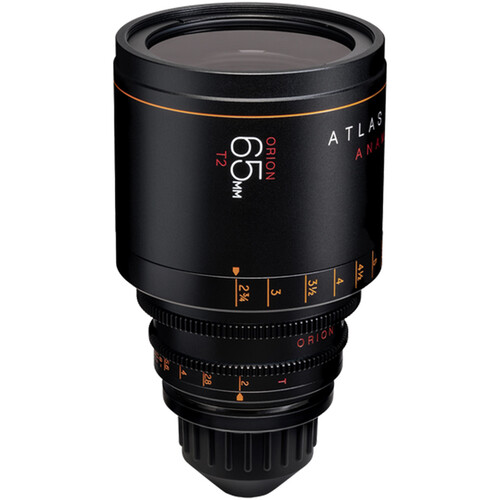

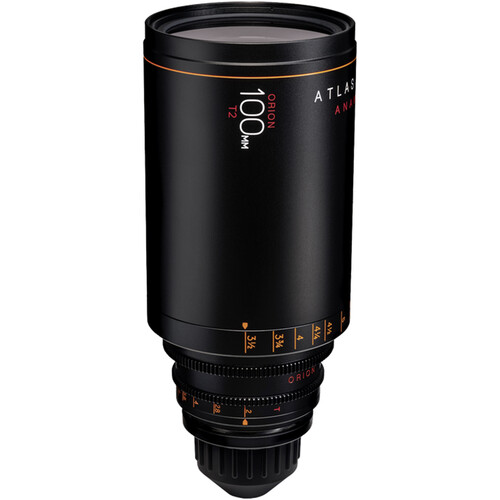

Atlas Lens Co. Orion T2 2x Anamorphic Prime Lens
PRODUCT DETAILS
Orion Series 2X anamorphic prime lenses are built to be a universal filmmaking tool — perfect for the latest professional film and digital cinema cameras with native PL mount or just as easily adapted to Canon EF-based cinema cameras. Orion series easily adapt to all mirrorless cameras because of their native PL mount.

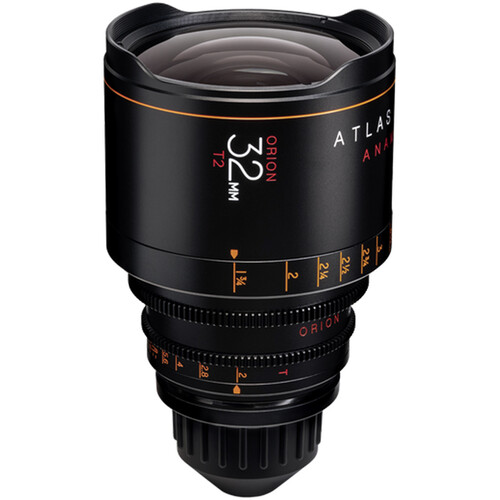

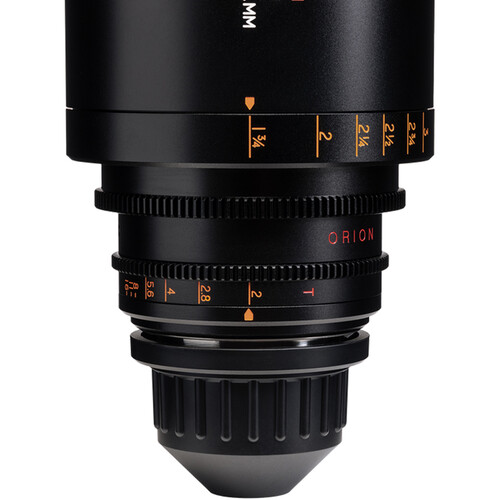

This mechanically dependable prime lens features a design that is standardized across the series with unified focus and iris gear positions and a common 114mm front diameter that make lens swaps easier when using cine-style matte boxes and FIZ systems. The Orion 32mm prime comes with focus marks in feet but can be switched by the user to meters using a separately available focus scale.
2x Vintage Anamorphic Look
- Creates twice the horizontal field with the same vertical field of view as a similar spherical lens.
- Creates a wide-angle view with the shallow depth of field inherent to telephoto prime.
- Use this Orion series lens to create a vintage anamorphic look replete with “waterfall” bokeh, streak effects, and a spherical aberration glow when used wide open.

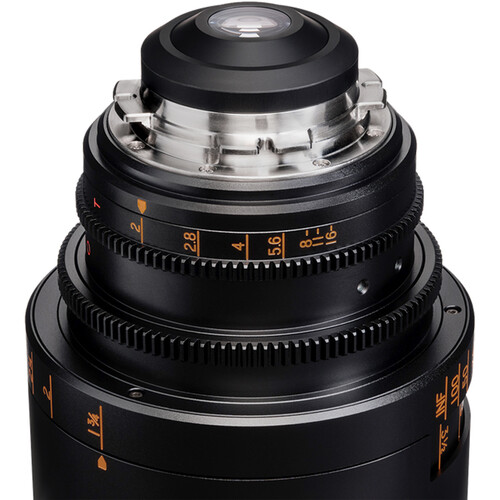

Interchangeable EF/PL Mount
- Compatible with ARRI PL-mount cameras or with Canon EF-mount cameras when used with the separately available mount kit.
- Works with Sony E-mount or Micro Four Thirds cameras using separately available adapters.
Super 35 Coverage
- Covers up to Super 35-format camera sensors.
- Use with the separately available Atlas 1.6x LF extender for full-frame coverage.
Fast T2 Aperture
- A fast T2 aperture enables low-light capture.
- Stopping down to T2.8 or less produces a crisp, flat-field look.

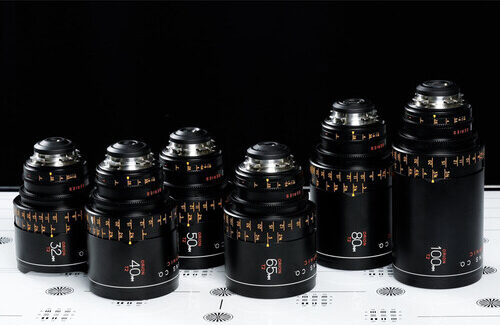

Standardized Design
- The mechanically dependable design is standardized across the series for reliable performance.
- Unified focus and iris gear positions reduce the need for adjustment when switching lenses on your rig.
- The standardized 114mm front diameter is compatible with many filters and matte boxes.
- Custom support feet are available separately.
Wide Barrel Rotation
- The 270° of focus barrel rotation enables smooth, precise focus pulls.
Adjustable Focus Scales
- The focus scales are adjustable in the field for maximum accuracy.
- Focus scales in feet can be replaced by the user with those in meters and vice versa.
SPECIFICATONS
Focal Length | 18mm | 21mm | 25mm | 28mm | 32mm | 40mm | 50mm | 65mm | 80mm | 100mm | 135mm | 200mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
T-Stop Range | T2 - T16 | T2.2 - T16 | T3.2 - T16 | |||||||||
Min Focus | 1.5 ft / .45 m | 1.5 ft / .45 m | 1.5 ft / .45 m | 1.75 ft / .53 m | 2.0 ft / .56 m | 2.5 ft / .76 m | 2.75 ft / .84 m | 3.0 ft / .91 m | 3.0 ft / .91 m | 3.5 ft / 1.1 m | 3.5 ft / 1.1 m | 3.5 ft / 1.1 m |
Weight | 6.95 lbs / 3.15 kg | 6.9 lbs / 3.1 kg | 6.2 lbs / 2.8 kg | 6.5 lbs / 2.9 kg | 4.7 lbs / 2.1 kg | 5.2 lbs / 2.4 kg | 5.0 lbs / 2.3 kg | 5.0 lbs / 2.3 kg | 6.0 lbs / 2.7 kg | 6.7 lbs / 3 kg | 8.8 lbs / 3.99 kg | 9 lbs / 4 kg |
Length | 7.4 in / 18.7 cm | 7.4 in / 18.7 cm | 7.4 in / 18.7 cm | 7.4 in / 18.7 cm | 7.4 in / 18.9 cm | 7 in / 17.8 cm | 7.2 in / 18.4 cm | 8.4 in / 21.2 cm | 9.8 in / 25 cm | 12 in / 30.5 cm | 12.95 in / 32.9 cm | 12.95 in / 32.9 cm |
Front Diameter | 136mm | 114mm | ||||||||||
Image Circle | 31mm (4-perf Super 35) | |||||||||||
Horizontal FOV | 140° | 124° | 109° | 98° | 88° | 66° | 55° | 43° | 35° | 28° | 20.9° | 14.4° |
