Losmandy Standard Porta-Jib
Designed to carry up to 100 lbs. (45kg) of camera and fluid head weight, this is the most versatile of all lightweight jibs. Assembles in less than 5 minutes. No tools required. All parts are machined aluminum and stainless steel. Boom and pan lock included. Front inserts available for all standard fluid heads: 100mm, 150mm, Mitchell.
Camera Capacity: 100 lbs.
Reach/Pan Radius: 57″
Vertical Movement: 72″
Pull Back: 19″
Weight Ratio: 1:1.22
Weight: 45 lbs.

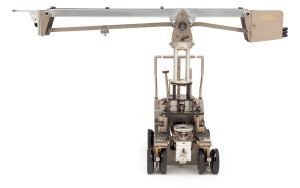

J.L. Fisher Jib Model 20
They are smooth, quiet and easy to set up, with the J.L. Fisher reputation for being well constructed and easily maintained. All jib arms come complete with weight carts, leveling offsets and angle plates.
Max payload with std. weights is
132 lbs (60 kg)
Max payload with XRW weights is
148 lbs ( 83 kg)
Max height on 10 Dolly beam is 8ft 6 in (2.6m)
Max height on 10 Dolly Center Mount 8ft 3 in (2.5m)
Model 20 on 9 or 10 Dollies with payload over 100 lbs requires Center Mount and on 11 Dolly always requires Center Mount
J.L. Fisher Jib Model 21
They are smooth, quiet and easy to set up, with the J.L. Fisher reputation for being well constructed and easily maintained. All jib arms come complete with weight carts, leveling offsets and angle plates.
Max payload with std. weights is
118 lbs (54 kg)
Max payload with XRW weights is
164 lbs ( 74 kg)
Max height on 10 Dolly beam is 9ft 6 in (2.9m)
Max height on 10 Dolly Center Mount 9ft 4 in (2.8m)
Model 21 on 9 or 10 Dollies with payload over 100 lbs requires Center Mount and on 11 Dolly always requires Center Mount
J.L. Fisher Jib Model 22
They are smooth, quiet and easy to set up, with the J.L. Fisher reputation for being well constructed and easily maintained. All jib arms come complete with weight carts, leveling offsets and angle plates.
Max payload with std. weights is
124 lbs (56 kg)
Max payload with XRW weights is
175 lbs ( 80 kg)
Max height on 10 Dolly Center Mount 11ft 5in (3.5m)
Model 22 on ALL Dollies requires Center Mount

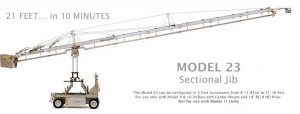

J.L. Fisher Jib Model 23
Can Be built to 7 different lengths!
The Model 23 Jib is a stable, yet lightweight sectional arm used for Features, Television, Commercials, Music Videos, and Live Productions. The Jib sections are ergonomic, easy to handle and assemble quickly. Color-coded, pre-tensioned cables secure the assembled sections into an extremely rigid Jib. The Model 23 Jib rotates 360 degrees and enables the operator to position the camera at various elevations from –9 ft 4 in to 20 ft 7 in high.
The Model 23 can be used on the Model 9 and 10 camera dollies with a center mount and 18 in RJ18 Heavy Duty Riser.
The Model 23 should not be used with the Model 11 Dolly.
-The Model 23 Jib sections, cables and parts store conveniently in compartments in a self-contained utility cart.
-Four weight carts are provided for easy transportation of weights and other accessories.
-The Jib can be configured in 3 foot increments from 6’ (1.83m) to 21’ (6.4m).
-Support cables are pre-adjusted to the proper length and color coded for easy assembly.
-Assembly instructions for all lengths and safety guidelines included.
-All required parts for all 7 lengths are included in the Utility Cart.
