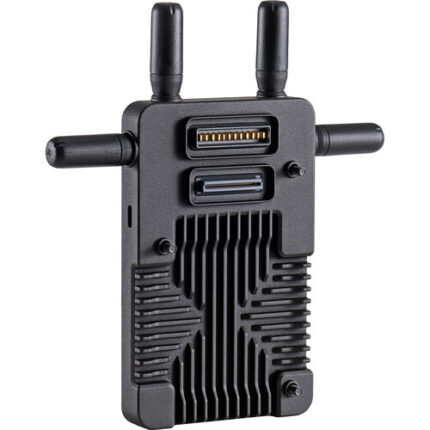

DJI Ronin 4D TX2 Video Transmitter

Transmit your Ronin 4D video footage using the Ronin 4D TX2 Video Transmitter from DJI. This compact transmitter uses DJI’s O3 Pro Video transmission technology to obtain up to a massive 20,000′ line-of-sight range with enhanced stability and interference resistance. It attaches to and is powered directly via the Ronin 4D gimbal body, saving the weight and space of a separate battery.

DJI Transmission with High-Bright Monitor Combo

Transmit high-definition video over 3 miles (line-of-sight) from your DJI drone or gimbal gear for monitoring with this Transmission with High-Bright Monitor Combo from DJI. The combo includes a transmitter and a monitor/receiver that transmits up to 1080p60 video using the highly efficient O3 Pro transmission technology via Wi-Fi 2.4 and 5 GHz frequencies. Optional high-gain antennas can be purchased to boost the signal quality and distance. The high-bright monitor features 1500 cd/m² brightness, 1920 x 1200 resolution, and a touchscreen display.

SPECS:

Video I/O
Transmitter: 1x HDMI 1.4 Input
Transmitter: 1x BNC (3G-SDI) Input
Transmitter: 1x BNC (3G-SDI) Loop Output
Embedded Audio
HDMI/SDI
Media/Memory Card Slot
Single Slot: microSD/microSDHC
Latency
68 ms
Video Format
HDMI/SDI (10-Bit 4:2:2 YCC)
1080p: 60/59.94/50/30/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Battery Type
Transmitter/Receiver: 1x L-Series (Interchangeable Mount)
Power Consumption
Transmitter/Receiver: 11 W
Wireless Range
3.7 Miles / 6 km (Line-of-Sight)
# of Channels
23
Channel Bandwidth
40 MHz
Frequency Range
Non-DFS Frequencies
2.4 to 2.48 GHz
5.15 to 5.25 GHz
5.72 to 5.85 GHz
DFS Frequencies
5.25 to 5.35 GHz
5.47 to 5.6 GHz
5.65 to 5.72 GHz
Latency
68 ms
