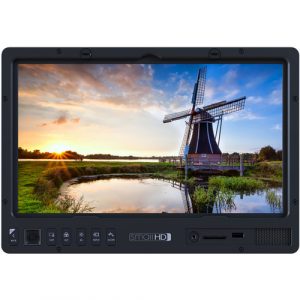

See beyond the restricted color and contrast of conventional monitoring with the
SmallHD 1303 HDR 13″ Production Monitor. Featuring HDR preview backed by a 10-bit
Color Intelligence engine with calibration capabilities, the 1303 can display a large
brightness range, encompassing log formats and other expanded-range picture styles.
The 1500 cd/m², daylight-viewable, 1920×1080 Full HD resolution display panel can be
driven by one of two SDI inputs or an HDMI input. Each input has a loop output for
connecting other gear in-line without the need for a splitter. All functionality of this
monitor is accessed via the innovative Page Builder OS. By implementing full aluminum
construction and the provision for separately available user-replaceable polycarbonate
screen protectors, SmallHD built this monitor to survive the rigors of production in
studios and in the field.

Specs
○ Display:
○ Panel Type: IPS-Type LCD
○ Display Size: 13.00″ / 33.0 cm
○ Screen Area: 11.59 x 6.52″ / 29.44 x 16.56 cm
○ Resolution: 1920 x 1080
○ Aspect Ratio: 16:9
○ Viewing Angle: 178°
○ Touchscreen: No
○ Maximum Brightness: 1500 nits / cd/m2
○ Contrast Ratio: 1140:1
○ Bit Depth / Color Support: 10-Bit (1.07 Billion Colors)
○ HDR Compatibility: Yes
○ Pixels Per Inch (ppi): 170 ppi
○ Color Gamut: 100% Rec. 709
○ Image Controls: False Color, Focus Assist, Focus Peaking, Pixel Zoom,
Waveform
○ Inputs / Outputs
○ Video I/O:
■ 1 x HDMI Input
■ 1 x HDMI Output
■ 2 x BNC (3G-SDI) Input
■ 2 x BNC (3G-SDI) Output
○ Embedded Audio
■ HDMI
■ SDI
○ Audio I/O: 1 x 1/8″ / 3.5 mm Headphone Output
○ Built-In Speaker: No
○ Power I/O:
■ 1 x XLR 4-Pin (12 VDC) Input
■ 1 x LEMO 2-Pin (4 A / 12 VDC) Input
○ Other I/O: 2 x USB-A 2.0 Input
○ Media/Memory Card Slot: No
○ Wi-Fi: No
○ Bluetooth: No
○ Mobile App Compatible: No (*As of June, 2023: Check with manufacturer
for the most up-to-date compatibility)
● Format Support
○ Video Format: HDMI (8/10/12-Bit 4:4:4/4:2:2 YCC)
■ 1080p: 60/59.94/50/30/29.97/25/24/23.98
■ 1080i: 120/119.88/100/60/59.94/50
■ 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
■ 576p: 100/50
■ 480p: 120/119.88/100/60/59.94
■ SDI (10-Bit 4:2:2)
■ 1080p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
■ 1080PsF: 30/29.97/25/24/23.98
■ 1080i: 120/119.88/100/60/59.94/50
■ 720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
■ 576i: 25
■ 480i: 59.94
● Power
○ AC Input Power: 110 to 240 VAC, 50 / 60 Hz at 6 to 15 A
○ DC Input Power: 12 to 34 VDC at 18 A
○ Power Consumption: 25 W (Typical), 39 W (Maximum)
○ Mounting: 6 x 1/4″-20 Female
● Environmental
○ Operating Temperature: 32 to 100°F / 0 to 38°C
○ Storage Temperature: 33 to 115°F / 0 to 46°C
● General
○ Dimensions: 13 x 9 x 2.88″ / 33 x 22.9 x 7.32 cm
○ Weight: 9.0 lb / 4.1 kg

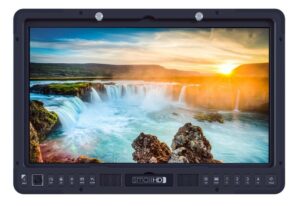

Bright, Full HD 17-inch Wide Color Gamut (P3) Reference Grade Monitor
