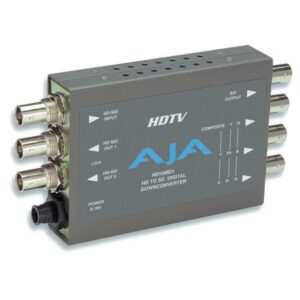

A miniature solution for converting HD-SDI video to SD-SDI and to component and
composite video, using a full 10-bit data path and multi-point interpolation to produce
broadcast quality downconverted video.

The SDI output supports 4-channel embedded audio from the HD-SDI input. The device also
converts 1080p24 or 1080p24sf to 59.94 Hz output video using the standard 3:2 pulldown
technique. The output can be formatted for either 4:3 or 16:9 SD monitors. All conversion is
done by external dipswitch selection.

Formats

1080i 50/59.94/60 Hz

1080p/psf 23.98/24/25/29.97/30 Hz

720p 50/59.94/60 Hz

Inputs
1x HD-SDI/SDI dual-rate, SMPTE 292/296

Outputs

1x SD-SDI, SMPTE, 259M

2x HD-SDI 1x YPbPr on BNC (SMPTE, EBU-N10, Betacam)

1x RGB on BNC

1x YC (S-Video) on BNC

NTSC, PAL

Downconversion
Multi-point interpolation, 10-bit processing 3:2 conversion for
23.98/24p/psf inputs

User Controls
External dipswitch

Input video format

Output video format

4:3 Safe-zone graticule overlay

Pedestal output

4:3 / 16:9 Monitor select

Power
+5-18 V DC, regulated, 4 watts

Included power supply:

100-240v, 50/60Hz universal input

+5V DC regulated output

7.5 watt capacity

Dimensions
5.8 x 3.1 x 1″ (14.7 x 8 x 2.5 cm)
