ARRI 9.5-18mm T2.9 F Ultra Wide Zoom

The 9.5-18mm T2.9 Ultra Wide Zoom Lens from ARRI has been designed for both current and future large-sensor HD cameras. This super-wide angle, near-telecentric zoom delivers optimal image quality, suiting it for plate shots and other VFX applications. It covers large formats up to the current ARRI Open Gate 33.6 mm image circle and is future-proofed for image circles ranging up to 34.5 mm.

SPECS

Lens Mount: PL Mount

Focal length: 9.5-18mm

Maximum Aperture T-No.: 1 : 2.9

Minimum Focus: 21.6″ (0.55 m)

Length: 13.2″ (335.5 mm)

Weight: 10.6 lb (4.8 kg)

ARRI ALURA 15.5-45MM T2.8

The Alura 15.5-45mm T2.8 F Wide-Angle Zoom from ARRI is a long PL-mount lens that covers up to Super35-sized camera sensors and is optimized for 2K and 4K+ camera output. The 15.5 to 45mm Alura features a fast T2.8 to T22 aperture range throughout its zoom range and cine-style lens ergonomics. Both the 15.5 to 45mm and 30 to 80mm Alura lenses are designed with color characteristics to match ARRI’s wide selection of existing lenses.

The Alura’s optical features include high resolution and contrast performance, a multilayer coating to reduce flares and veiling, reduced chromatic aberration, and minimized breathing while focusing. A nine-blade iris produces a rounded, natural-looking bokeh (out-of-focus highlights). The lens also supports the ARRI Lens Data System (LDS) that can communicate lens data electronically to compatible cameras and devices, such as focus mapping, tracking, and distance measurement.

The focus, zoom, and iris barrels are compatible with 0.8 MOD gears for interfacing with industry-standard lens accessories such as follow focus units and wireless FIZ controls. For easier focus pulling, large focus scales are placed on both sides of the lens barrel. Marked in feet, the focus scales can be quickly changed to meters by an authorized ARRI service provider. Exchangeable front and rear elements are easily serviced and can potentially extend the life of your Alura.

Fast T2.8 to T22 aperture
Optimized for the 2K and 4K+ formats, the Alura covers up to Super35 camera sensors
Industry-standard 0.8 MOD cine pitch gears for focus, zoom, and iris control
A nine-blade iris produces rounded, natural-looking bokeh (out-of-focus highlights)
The large barrel markings in feet are switchable to meters by an authorized ARRI service provider
Supports the ARRI Lens Data System (LDS) that electronically passes lens information to compatible cameras and devices

ARRI ALURA 18-80MM T2.8

The Alura 30-80mm T2.8 F Wide-Angle Zoom from ARRI is a long PL-mount lens that covers up to Super35-sized camera sensors and is optimized for 2K and 4K+ camera output. The 30 to 80mm Alura features a fast T2.8 to T22 aperture range throughout its zoom range and cine-style lens ergonomics. Both the 30 to 80mm and 15.5 to 45mm Alura lenses are designed with color characteristics to match ARRI’s wide selection of existing lenses.

The Alura’s optical features include high resolution and contrast performance, a multilayer coating to reduce flares and veiling, reduced chromatic aberration, and minimized breathing while focusing. A nine-blade iris produces a rounded, natural-looking bokeh for out-of-focus highlights. The lens also supports the ARRI Lens Data System (LDS) that can communicate lens data electronically to compatible cameras and devices, such as focus mapping, tracking, and distance measurement.

The focus, zoom, and iris barrels are compatible with 0.8 MOD gears for interfacing with industry-standard lens accessories such as follow focus units and wireless FIZ controls. For easier focus pulling, large focus scales are placed on both sides of the lens barrel. Marked in feet, the focus scales can be quickly changed to meters by an authorized ARRI service provider. Exchangeable front and rear elements are easily serviced and can potentially extend the life of your Alura.

Fast T2.8 to T22 aperture
Optimized for the 2K and 4K+ formats, the Alura covers up to Super35 camera sensors
Industry standard 0.8 MOD cine pitch gears for focus, zoom, and iris control
A nine-blade iris produces rounded, natural-looking bokeh (out-of-focus highlights)
The large barrel markings in feet are switchable to meters by an authorized ARRI service provider
Supports the ARRI Lens Data System (LDS) that electronically passes lens information to compatible cameras and devices

ARRI ALURA 30-80MM T2.8

The Alura 30-80mm T2.8 F Wide-Angle Zoom from ARRI is a long PL-mount lens that covers up to Super35-sized camera sensors and is optimized for 2K and 4K+ camera output. The 30 to 80mm Alura features a fast T2.8 to T22 aperture range throughout its zoom range and cine-style lens ergonomics. Both the 30 to 80mm and 15.5 to 45mm Alura lenses are designed with color characteristics to match ARRI’s wide selection of existing lenses.

The Alura’s optical features include high resolution and contrast performance, a multilayer coating to reduce flares and veiling, reduced chromatic aberration, and minimized breathing while focusing. A nine-blade iris produces a rounded, natural-looking bokeh for out-of-focus highlights. The lens also supports the ARRI Lens Data System (LDS) that can communicate lens data electronically to compatible cameras and devices, such as focus mapping, tracking, and distance measurement.

The focus, zoom, and iris barrels are compatible with 0.8 MOD gears for interfacing with industry-standard lens accessories such as follow focus units and wireless FIZ controls. For easier focus pulling, large focus scales are placed on both sides of the lens barrel. Marked in feet, the focus scales can be quickly changed to meters by an authorized ARRI service provider. Exchangeable front and rear elements are easily serviced and can potentially extend the life of your Alura.

Fast T2.8 to T22 aperture
Optimized for the 2K and 4K+ formats, the Alura covers up to Super35 camera sensors
Industry standard 0.8 MOD cine pitch gears for focus, zoom, and iris control
A nine-blade iris produces rounded, natural-looking bokeh (out-of-focus highlights)
The large barrel markings in feet are switchable to meters by an authorized ARRI service provider
Supports the ARRI Lens Data System (LDS) that electronically passes lens information to compatible cameras and devices

ARRI ALURA 45-250MM T2.6

Using the latest in optical design technology and innovative manufacturing techniques, the ARRI Alura Zooms combine the highest optical performance with an amazingly small size, weight and price. They are available as Studio zooms for use on a tripod or crane with a wider focal range, or as lightweight zooms which are significantly smaller and lighter in exchange for a reduced focal range.

All Alura Zooms’ color characteristics, as well as their handling, are matched to existing prime lenses in ARRI’s outstanding repertoire.

ARRI Enso 18mm T2.1 Prime Lens

T-stop:  T2.1

Length: 117mm/4.6”

Front Diameter: 95mm

Weight: 1.4kg/ 3.1 lb

Close Focus: 0.2/ 8″

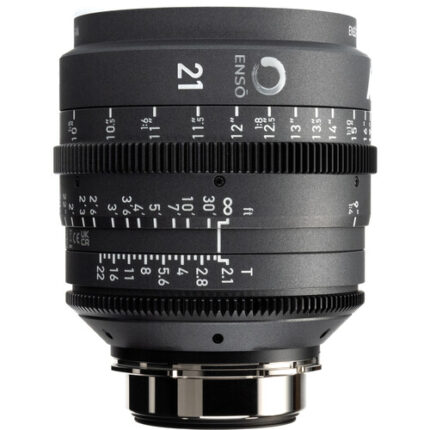

ARRI Enso 21mm T2.1 Prime Lens

ARRI Ensō Primes 21 mm
Optical Parameters
Focal length  21 mm
T-stop T2.1
Close focus 0.22 m / 8.5″
Length 117 mm / 4.6″
Weight 1.4 kg / 3.1 lb
Front diameter 95 mm
Magnification ratio at MOD 1:4
Entrance pupil position
(related to image plane, in direction to object plane)
131.6 mm / 5.2″
Angle of view H-V-D for LF Open Gate 83,2° / 63,3° / 94,4°
Physical Dimensions
Lens barrel Aluminum
Focus barrel rotation 318°
Iris barrel rotation 48°
Gear Module 0.8
Interfaces
Lens mount LPL
Lens data system LDS-2 or Cooke/i
Electronic magnetic rear filter interface yes

ARRI Enso 24mm T2.1 Prime Lens

ARRI Ensō Primes 24 mm
Optical Parameters
Focal length 24 mm
T-stop T2.1
Close focus 0.23 m / 9″
Length 117 mm / 4.6″
Weight 1.4 kg / 3.1 lb
Front diameter 95 mm
Magnification ratio at MOD 1:4
Entrance pupil position
(related to image plane, in direction to object plane)
131.8 mm / 5.2″
Angle of view H-V-D for LF Open Gate 75,2° / 56,44° / 86,1°
Physical Dimensions
Lens barrel Aluminum
Focus barrel rotation 318°
Iris barrel rotation 48°
Gear Module 0.8
Interfaces
Lens mount LPL
Lens data system LDS-2 or Cooke/i
Electronic magnetic rear filter interface yes

ARRI Enso 28mm T2.1 Prime Lens

ARRI Ensō Primes 28 mm
Optical Parameters
Focal length 28 mm
T-stop T2.1
Close focus 0.23 m / 9″
Length 117 mm / 4.6″
Weight 1.5 kg / 3.3 lb
Front diameter 95 mm
Magnification ratio at MOD 1:4
Entrance pupil position
(related to image plane, in direction to object plane)
118.8 mm / 4.7″
Angle of view H-V-D for LF Open Gate 66,9° / 49,4° / 77,3°
Physical Dimensions
Lens barrel Aluminum
Focus barrel rotation 318°
Iris barrel rotation 48°
Gear Module 0.8
Interfaces
Lens mount LPL
Lens data system LDS-2 or Cooke/i
Electronic magnetic rear filter interface yes

ARRI Enso 32mm T2.1 Prime Lens

ARRI Ensō Primes 32 mm
Focal length 32 mm
T-stop T2.1
Close focus 0.25 m / 10″
Length 117 mm / 4.6″
Weight 1.4 kg / 3.1 lb
Front diameter 95 mm
Magnification ratio at MOD 1:4
Entrance pupil position
(related to image plane, in direction to object plane)
119.5 mm / 4.7″
Angle of view H-V-D for LF Open Gate 59,7° / 43,6° / 69,8°
Physical Dimensions
Lens barrel Aluminum
Focus barrel rotation 318°
Iris barrel rotation 48°
Gear Module 0.8
Interfaces
Lens mount LPL
Lens data system LDS-2 or Cooke/i
Electronic magnetic rear filter interface yes

ARRI Enso 47mm T2.1 Prime Lens

ARRI Ensō Primes 47 mm
Focal length 47 mm
T-stop T2.1
Close focus 0.32 m / 12.5″
Length 117 mm / 4.6″
Weight 1.3 kg / 2.9 lb
Front diameter 95 mm
Magnification ratio at MOD 1:4
Entrance pupil position
(related to image plane, in direction to object plane)
124.5 mm / 4.9″
Angle of view H-V-D for LF Open Gate 42,8° / 30,5° / 51,1°
Physical Dimensions
Lens barrel Aluminum
Focus barrel rotation 318°
Iris barrel rotation 48°
Gear Module 0.8
Interfaces
Lens mount LPL
Lens data system LDS-2 or Cooke/i
Electronic magnetic rear filter interface yes

ARRI Ensō Prime Lenses

Technical Specifications

  • Format Compatibility: Full-frame (Large Format) sensors
  • Lens Mount: ARRI LPL with LDS-2 and Cooke /i lens data protocols
  • Aperture Range:
    • T2.1 for most focal lengths
    • T2.5 for 14mm and 150mm
    • T2.8 for 10.5mm and 250mm
  • Focal Lengths Available:
  • Close Focus Capability: 1:4 magnification ratio; for example, the 32mm lens focuses as close as 10 inches (25.4 cm)
  • Front Diameter: 95mm for most lenses, facilitating easy matte box compatibility.

Optical Characteristics

  • Native Look: Delivers natural image detail with stunning bokeh, gentle focus fall-off, and minimal focus breathing
  • Ensō Vintage Elements: Optional rear-mounted magnetic filters that allow cinematographers to modify the lens’s optical characteristics, offering three positive and three negative elements to achieve various vintage looks
  • Metadata Integration: Built-in chips provide real-time lens data (focus, iris, zoom) to compatible cameras, aiding in on-set monitoring and post-production workflows

Arri Master Anamorphic Lenses

The Master Anamorphic series, a range of nine high-performance prime lenses, represents a significant step forward in the echnology and practicality of anamorphic cinematography for 35 ormat digital and film cameras.

A perfect combination of compact size, minimal weight, very high speed and exceptional optical design with minimal distortion has been achieved in a set of anamorphics. With beautiful out of-focus backgrounds and a smooth, cinematic look, the Master Anamorphic lenses are as fast and easy to use on set as other modern cine lenses.

The Master Anamorphic Lenses have been co-developed by ARRI and ZEISS, are manufactured by ZEISS.

SPECS:

Lens Mount: PL Mount

Format Coverage: S35

Available Focal Lengths: 28mm/35mm/ 40mm/ 60mm/ 75mm/ 100mm/ 135mm/ 180mm

Maximum Aperture: T1.9 (180mm – T2.8)

Front Diameter: 95mm (28mm – 114mm)

Weight: 28mm – 2.5 kg/ 5.5lb, 35mm – 2.6 kg/ 5.7lb, 40mm – 2.7 kg/ 6lb, 60mm – 2.6 kg/ 5.7lb, 75mm 2.6 kg/ 5. 7lb, 100mm – 3.1 kg/ 6.8lb, 135mm – 3.8 kg/ 8.4lb, 180mm – 3.2 kg/ 7.1lb

ARRI Master Macro 100mm T2 Lens

For those who want the ultimate in image quality for table top cinematography, product shots, close-up inserts on feature films or any other applications that require a macro lens, the ARRI Master Macro 100 delivers images of breathtaking beauty. Designed for the ANSI Super 35 image format, the ARRI Master Macro 100 can be used on any PL mount 35 mm film and single sensor digital camera.

SPECS:

Mount: PL Mount

Maximum Aperture F-No.: T2

Minimum Focus: 13.75″ (1:1 ratio)

Weight: 5.7 lbs.

ARRI Shift & Tilt Bellows System

The Arri Shift & Tilt Bellows system comprises a bellow as well as a set of lenses that cover a significantly larger image area than is required to cover the conventional format area on film.

The lenses are attached to the bellows unit via a bayonet mount. The bellows unit is attached to the camera with the standard PL-Mount.

SPECS:

Focal Lengths: 18 mm/ 20 mm/ 24 mm/ 28 mm/ 35 mm/ 45 mm/ 60 mm/ 80 mm/ 90 mm/ 110mm/ 150mm
