ARRI AMC-1 3 CHANNEL MOTOR CONTROLLER
Use the ARRI AMC-1 Motor Controller to remotely control focus, iris, and zoom via an LBUS interface. The AMC-1 Controller can link up to three daisy-chained c-force motors, and is compatible with WCU-4, SXU-1, Master Grip, and c-motion units. Compatible cameras include the ARRI ALEXA, AMIRA, and a wide variety of third-party cameras.
SPECS:
Connectors: 1 x antenna/ 1 x 4-pin LBUS/ 1 x 5-pin LCS/ 1 x 10-pin CAM
Receiver Channel: Eight Channels: 2.410 to 2.475 GHz
Mounting Thread: 3/8″-16
Current Consumption: Radio On/Ready: 135 mAh at 12 V – 70 mAh at 24 V
Dimensions: Without Antenna – 2.4 x 1.1 x 2.9″ (61 x 28.8 x 74.5 mm)/ With Antenna – 3.2 x 1.1 x 5″ (82.3 x 28.8 x 126 mm)

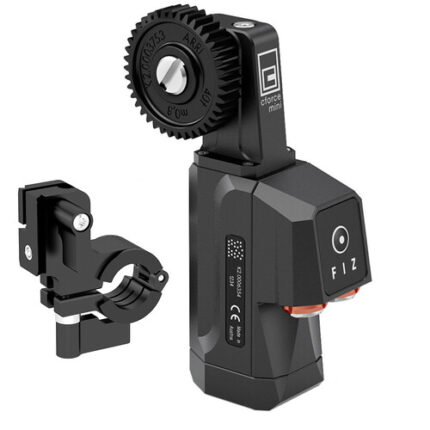

Arri Cforce Mini Motor Basic Kit
ARRI‘s cforce Mini Motor is an ultracompact, lightweight motor used to remotely control your lens’ focus, iris, or zoom function. The cforce Mini Motor weighs just over six ounces with a gear and bracket (available separately). Directly compatible with ARRI ALEXA Mini cameras and cmotion units, the cforce Mini Motor can be connected to an RIA-1 (Radio Interface Adapter) to work with any camera. Up to three cforce Mini Motors may be daisy-chained together, saving space and weight in your camera rig. The cforce Mini Motor’s ultralight, compact form makes it suitable for gimbal, drone, and other lightweight camera rigs. This basic motor unit requires a separately available gear, cable, and bracket.
Inputs/Outputs
| Other I/O |
Wireless
| Mobile App Compatible |
Power
| Power Source | |
| DC Input Power | |
| Power Consumption | |
| Maximum Peak Torque | |
| Speed | |
| Torque Constant |

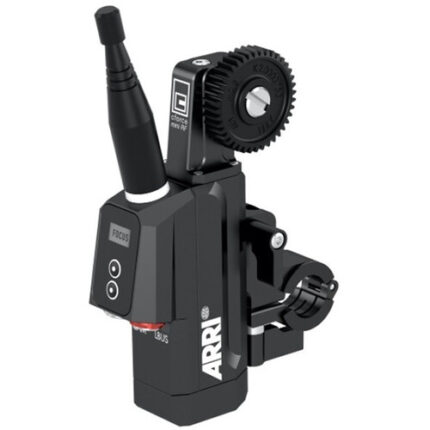

Arri Cforce Mini RF Motor Kit
The ARRI cforce mini RF Basic Set 2 is a compact lens control motor set with an integrated white-coded RF radio module that eliminates the need for a separate receiver unit on your camera rig. This cforce mini Basic Set is comprised of one motor, an 08.MOD 40-tooth gear, a 2400 MHz antenna, and a rod clamp. Suited for gimbal, stabilizer, handheld, and drone setups, the cforce mini RF motor can be daisy-chained with classic cforce motors and ARRI LBUS components. Power and run/stop control are supplied for ARRI and select third-party cameras through the motor’s CAM connector.

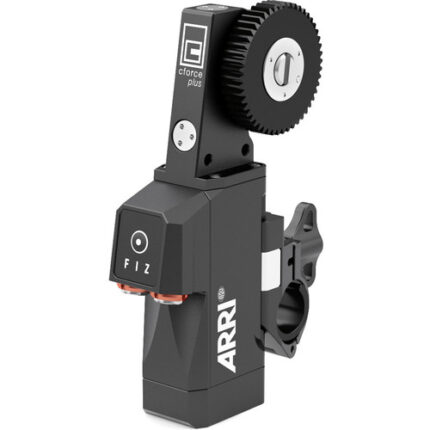

Arri Cforce Plus Motor Basic Set
ARRI‘s cforce Plus Motor is a strong, LBUS-connected motor used to remotely control your lens’s focus, iris, or zoom function. With more torque than its cforce Mini cousin, the cforce Plus has the power to control any standard lens quickly and smoothly. Directly compatible with ARRI ALEXA Mini cameras and cmotion units, the cforce Plus Motor can be paired with an AMC-1 or UMC-4 controller when working with other ARRI or third-party cameras. Up to three cforce Plus Motors may be daisy-chained together, saving the space and weight of individual controllers in your camera rig. The cforce Plus Motor offers compatibility with the same mounting options as the ARRI CLM-4 motor, including a Hill Bracket and standard rod mounts. The cforce Plus weighs about 11 ounces with a gear and bracket. This basic motor unit requires a separately available gear, cable, and bracket.
SPECS:
| Connector | |
| Torque | |
| Speed | |
| Supply Voltage | |
| Maximum Power Consumption | |
| Operating Temperature | |
| Dimensions |
Arri CLM-4 Motor Basic Kit
The components in this ARRI CLM-4 Motor Basic Kit are used with an ARRI motor controller to remotely control your lens’s focus, iris, or zoom function. The high-end, solidly-built CLM-4 motor features smooth, quiet control for standard lenses. This CLM-4 Motor Basic Kit can be used with ARRI’s UMC-4 Universal Motor Controller and SMC-1 Single Motor Controller. For optimal flexibility, any of the four included gears can be attached to either side of the CLM-4 Motor. The 0.8-, 0.6-, 0.5-, and 0.4-Mod Gears work with a variety of cine-style and ENG-type lenses. This kit includes a motor-to-controller cable, and a bracket with insert for mounting to a standard 19mm or 15mm rod.
Use ARRI‘s CLM-4 Motor to remotely control your lens’s focus, iris, or zoom function. The high-end, solidly-built CLM-4 motor features smooth, quiet control for standard lenses. This basic motor component of ARRI’s modular ECS (electronic control system) can be fleshed out with separately available gears, cables, and brackets compatible with the ARRI or third-party camera of your choice. The CLM-4 motor can be used with ARRI’s UMC-4 Universal Motor Controller and SMC-1 Single Motor Controller.
ARRI FF-5 Follow Focus
The ARRI FF-5 is a complete follow focus kit including a cine follow focus base, left- and right-sided standard focus knobs, two lens gears, one speed crank, one short whip, and 10 marking disks. Use the FF-5 Cine’s integrated snap-on bridge mechanism to mount the follow focus to ARRI lightweight support rods. A bridgeplate adapter is required to use the FF-5 Cine with 15 or 19mm studio rod systems. Having a gear ratio of 2:1, the FF-5 Cine is designed for cine-style lenses, with one turn of the focus knob resulting in two turns of the focus gear. This gear ratio suits the generously-spaced focus marks found on most cine lenses.

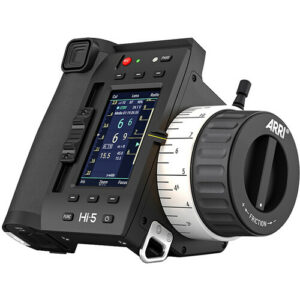

ARRI Hi-5
The Hi-5 Hand Unit Basic Set from ARRI offers advanced wireless multi-axis camera and lens control via a large knob, instant reconnection, a high-contrast touchscreen LCD, powerful signal, and a modular, highly customizable design. Included with the set are the Hi-5 body, a Bluetooth dongle, a Smart focus ring, the RF-EMIP Radio Module 2400 MHz DSSS, two LBP-3500 battery packs, an LBP battery charger, two LBP-3500 battery packs, an LBP battery charger, a hand strap, a neck strap, and a screen protector.
SPECS:
Bluetooth: Yes
Battery: Arri Lithium-Ion Battery Pack LBP-3500
Dimensions: 6.7 x 5.3 x 4.1″ / 169 x 135.6 x 104.4 mm (without Radio Module & Antenna)
Weight: 1.8 lb / 830 g (Including Dongle & Focus Ring)
ARRI Mini Follow Focus MFF-2
The Mini Follow Focus MFF-2 Cine Base from ARRI is a main building block of the MFF-2 follow focus system. This sturdy, single-sided unit snaps onto any 15mm rod lightweight support (not included). The Cine Base is designed with a 2:1 knob-to-gear ratio for quick but smooth focus pulls on cine-style lenses, with their typically large range of focus barrel rotation. The base’s reversing feature can be used to maintain the standard direction of the focusing knob.

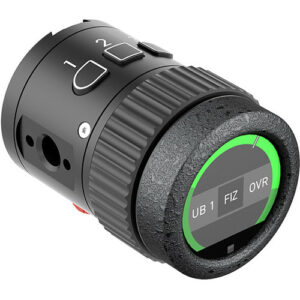

ARRI Operator Control Unit OCU-1
he ARRI Operator Control Unit OCU-1 provides the means for a camera operator to quickly take over and relinquish control of a WCU-4 system’s focus, iris, and zoom axes. Use this compact, single-axis FIZ controller to save time while framing shots and executing challenging focus pulls.
SPECS:
Mounting Thread: 3/8″-16
Dimensions: 1.7 x 2.6″ / 44 x 65 mm
Weight: 5.4 oz / 153 g
ARRI SXU-1 SINGLE CHANNEL LENS CONTROLLER
ARRI‘s SXU-1 Single Axis Unit is a wireless hand unit offering single-axis focus, iris, or zoom control. The compact SXU-1 features remote camera start/stop and tally, an ergonomic wooden handgrip, and a backlit, super-smooth control knob. This simple unit can be used in conjunction with the WCU-4 or with the SMC-1 single-motor controller.
SPECS:
Software Update: Via SD card
Encoder: 16-bit
Power Supply: Sony-type NP-FM500H
Dimensions: Knob Diameter – 3″ (76 mm)/ LCD Display – 1.2″ (31 mm) (diagonal)
Weight: Including Battery: 1.5 lb (700 g)
ARRI UMC-4 MOTOR CONTROLLER
Use the versatile ARRI UMC-4 LDS Universal Motor Controller to remotely control focus, iris, and/or zoom, and to record lens metadata for post and VFX use. The UMC-4 Controller can govern up to three lens motors, and is compatible with WCU-4, SXU-1, Master Grip, and ARRI zoom controls. This controller is compatible with any ARRI or third-party pro camera, and with CLM-3/4/5 lens motors.
SPECS:
Connectors: 2 x 7-pin serial/ 1 x 5-pin LCS/ 1 x 12-pin CAM/ 3 x 12-pin motor/ 1 x RS input/ 1 x TC in/out
Receiver Channel: 8 x Channels: 2.410 to 2.475 GHz
Mounting Thread: 3/8″-16
Dimensions: Without Antenna – 4.2 x 1.5 x 3.9″ (107.7 x 38.5 x 98 mm)/ With Antenna: 4.2 x 1.5 x 6.1″ (107.7 x 38.5 x 153.9 mm)
ARRI WCU-4 3 CHANNEL LENS CONTROLER
The ARRI WCU-4 Wireless Compact Unit is a 3-axis handheld controller featuring an integrated lens display. Control camera functions, focus, iris, and/or zoom from a distance, such as when shooting handheld or using a stabilizer, gimbal or crane. The WCU-4 is compatible with the ARRI ALEXA Mini, ALEXA Plus, and Studio cameras, and with ARRI UMC-4, SMC-1, EMC-1, and AMC-1 motor controllers. Camera functions are controllable for ARRI ALEXA Mini, Plus and Studio, and ARRI AMIRA when used with the UMC-4 motor controller.
SPECS:
Dimensions: 5.9 x 6.3 x 3.5″ (151 x 161 x 90 mm)
Weight: 1.6 lb (750 g)
C.E. CINETAPE
Measuring distance is easy with the Cinematography Electronics CINETAPE MEASURE System. This versatile ultrasonic system continuously calculates the distance between a subject and the camera’s film-plane. By continuously measuring distance during a shot, small or subtle subject movements are no longer a problem. With non-stop measurements, focusing a camera lens is simplified which saves time, avoids retakes and reduces production costs.
SPECS:
Measurement Units: Feet & Inches or Meters & Centimeters
Film Plane Offset Range: -9 to 99 ft; -3 to 30 m
Close Focus Range: 12 to 30 inch; 30 to 90 cm
Sensitivity Range: 0 to 99 %
Power Connector: Fischer 3 Pin
Mounting: Velcro
C.E. CINETAPE 2
The CINETAPE 2 Control is lighter and smaller than the original CINETAPE. It continuously calculates the distance between the camera’s film plane and the subject. All of the original CINETAPE features are included in the CINETAPE 2. In addition, we added a 2-way wireless radio, that communicates with our AIR Mobile 2 at a strong 500 foot range.
SPECS:
Measurement Units: Feet & Inches or Meters & Centimeters
Focal-Plane Offset Range: -9 to 99 ft; -3 to 30 m
Close Focus Range: 12 to 30 inch; 30 to 90 cm
Sensitivity Range: 0 to 99 %
Wireless Range: 500 Feet (170 Meters)
Power Connector: Fischer 3 Pin
Mounting: 1/4-20 Threaded Hole (2)
DJI Zenmuse X9 Focus Motor
Pull focus remotely while using your Ronin 4D 4-Axis Cinema Camera 6K or 8K Combo with this Zenmuse X9 Focus Motor from DJI. This dedicated, rod-mounted motor also enables you to add autofocus when using a manual lens and the DJI 0.8 Mod Focus Strip.
