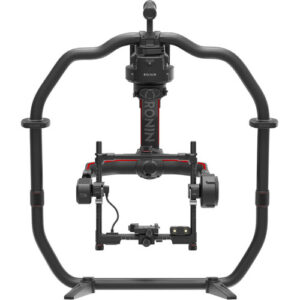

    DJI Ronin 2 3-Axis Handheld/Aerial Stabilizer

    The versatile Ronin 2 gimbal from DJI is suitable for use either handheld or mounted in a variety of ways including onto a drone, Steadicam, vehicle mount, and more. An update from the original Ronin, this motorized stabilization system is suitable for a range of camera and lens configurations, boasting a payload capacity of 30 pounds. This means it can be used for everything from DSLRs up to cinema cameras such as the ARRI ALEXA Mini or Sony FX9. Like its predecessor, the Ronin 2 features support for underslung, upright, and briefcase operation modes to help you achieve the best angle. However, it has been redesigned to enable easy transition between upright and underslung modes without changing the position of the camera. It also offers several other improvements, such as enhancements to the control software and physical design to simplify taking complex shots without sacrificing performance, all while making important functions more readily accessible.

    SPECS:

    Load Capacity
    30 lb / 13.6 kg
    Number of Axes
    Three: Pitch (Tilt) / Roll / Yaw (Pan)
    Rotation Range
    Controllable Range
    Yaw (Pan): 360°
    Roll: 60° (-30 to 30°)
    Pitch (Tilt): 170° (-135 to 135°)
    Mechanical Range
    Yaw (Pan): 360°
    Roll: 440° (-220 to 220°)
    Pitch (Tilt): 170° (-135 to 135°)
    Follow Speed
    Pan: 400°/s
    Tilt: 360°/s
    Roll: 360°/s
    Stabilization Accuracy
    ±0.02° (Motionless)

    Compatibility

    Camera Control
    On Compatible Models
    Camera Compatibility
    Universal
    Width: 7.1″ / 18 cm
    Height: 6.5″ / 16.5 cm

    Connectivity

    Inputs/Outputs
    1x D-Bus Input
    1x USB-C
    4x Proprietary (Power) Output
    2x Proprietary (Power) Output
    1x D-Tap (Power) Output
    Mobile App Compatible
    Yes (Required): Android & iOS
    App Name: DJI Ronin

    Battery

    Battery Type
    1x Lithium-Ion Polymer
    Battery Runtime
    2.5 to 8 Hours

    General

    Display Type
    Fixed Touchscreen LCD
    Operating Conditions
    -4 to 122°F / -20 to 50°C
    Dimensions
    28.3 x 24.8 x 16.4″ / 720 x 630 x 416 mm (with Handlebar)
    20.9 x 16.4 x 13.8″ / 530 x 416 x 350 mm (without Handlebar)
    Weight
    12 lb / 5.5 kg (with Handlebar)
    9 lb / 4.2 kg
