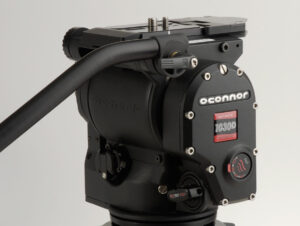

OCONNOR 1030D FLUID HEAD
The Oconnor Ultimate 1030D Fluid Head Is a lightweight fluid head that shares features with the other fluid heads in the OConnor Ultimate fluid head line. This allows operators to easily transition between lighter and heavier cameras without having to relearn think about the differences between fluid heads. The head supports 30 pounds worth of camera and accessories at a C.O.G. (center of gravity) 6 inches above the camera platform. The counterbalance system helps prevent the camera from tilting forward or back on the head on its own, and to remain in the position the operator places it without requiring additional effort to hold it in place. The counterbalance system on the 1030D is a stepless system, so it is continuously variable from the maximum weight the head can support all the way down to zero. This makes the 1030D extremely versatile, and suitable for use with heavy ENG style cameras all the way down to lightweight cameras, while maintaining the same operational feel.
Camera Plate Features – Sliding Balance Plate
Base Mount – 100 mm Half Ball
Counter Balance – Continuous
Bubble Level – 1 x Illuminated
Drag Control – Tilt: Continuous/ Pan: Continuous
Vertical Tilt – +90° to -90°
Panning Range – 360°
Independent Pan Lock – Yes
Independent Tilt Lock – Yes
Load Capacity – 30 lb / 13.6 kg
Weight – 8.7 lb / 3.9 kg
OCONNOR 2065 MITCHELL BASE FLUID HEAD
The OConnor Ultimate 2065 Fluid Head Package (Mitchell) includes a long European-style camera platform with a quick release plate, a two-piece pan handle, a Mitchell base, and a tie-down. Designed as a replacement for the 2060HD, the 2065 Fluid Head has an increased payload of up to 89 pounds and shares many ergonomic features with higher payload contemporaries like the OConnor 2575 and 120EX. This head features infinitely variable counterbalance with a crank-style handle, stepless pan and tilt drag, a soft left-hand rest, and a single-handed platform release with a safety catch.
Camera Plate Features – Sliding Balance Plate, Quick Release
Base Mount – Mitchell Flat Base
Counter Balance – Continuous
Drag Control – 9-Step
Vertical Tilt – +90° to -90°
Load Capacity –
89 lb / 40 kg at CoG 4″ / 102 mm
71 lb / 32 kg at CoG 6″ / 152 mm
58 lb / 26 kg at CoG 8″ / 203 mm
Weight – 22.9 lb / 10.4 kg
OCONNOR 2575 MITCHELL BASE FLUID HEAD
The OConnor Ultimate 2575D Fluid Head (Mitchell) is a fluid head with a Mitchell Ball Base and Tiedown that supports high payload cameras rendering it suitable for cine style shooting. Lightweight at 22.6 lb (10.4 kg), the fluid head sustains a heavy payload up to 90 lb (40.8 kg) with greater drag. Conveniently located controls (pan and tilt brakes) at camera operator’s side (left side) of the platform enable ease of operation and rapid familiarity. The platform also houses dual scales for counterbalance, and sports 4 handle rosettes that allow left or right hand operation as well as mounting from the front or rear. An intelligently placed, soft handrest enhances the Ultimate 2575D Fluid Head’s ergonomic design. You can achieve rapid pan movements owing to the fluid drag system that allows the camera to move from one position to other very quickly and recover without any spring back. The Mitchell Ball Base provides for high mobility and is secured in place by the Mitchell Tiedown. A single-touch, Euro-style platform release lever allows you to disengage the safety catch and open the lever effortlessly, providing high mobility to deal with location changes in the field.
Counter Balance – Continuous
Load Capacity – 105 lb / 47.7 kg

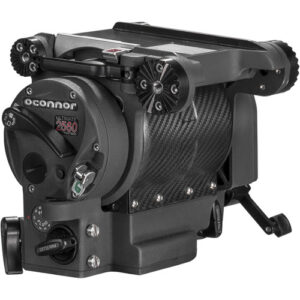

OCONNOR ULTIMATE 2560 FLUID HEAD
The Ultimate 2560 Fluid Head Package from OConnor is designed for use with the current crop of digital cinema cameras. Weighing less than 18 pounds, 2560 is capable of supporting camera payloads up to 66 pounds at a 6″ center of gravity above the platform, making it well suited for cameras such as the ARRI Alexa in a portable configuration or any lightweight digital cinema camera in a full studio configuration. The head comes packaged with both a Mitchell base and a 150mm ball base adapters with tie-downs for expanded tripod compatibility. It also comes with a large Euro-style quick release for rapid mounting and dismounting of large camera rigs, a pan handle, and a pan handle extension.
SPECS:
| Base Mount | |
| Counter Balance |
| Vertical Tilt | |
| Load Capacity |
