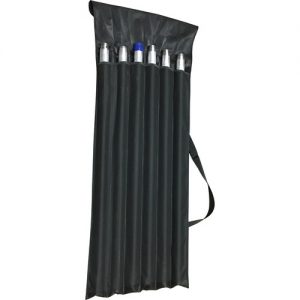

Each schedule 80 pipe is made from durable aluminum, measures 39″ in length and 1.25″ in diameter, and features threading on each end to interconnect and create a longer track to support your original Dana Dolly. The carry bag features individual sleeves for each track and includes a removable shoulder strap and a carry handle.

Overall Length – Not Specified by Manufacturer
Number of Sections – 6
Section Length – 39″ / 99.06 cm
Diameter – 1.25″ / 3.17 cm
Rail Material – Aluminum

The hi-load curved dolly track is constructed of anodized structural aluminum and designed to carry maximum loads with minimum deflection.

The inner and outer rails are in contact with the ground along their entire length preventing any flexing between cross bars.

Therefore, the load carrying capacity is rated in excess of two tons. Eight of these curved sections are needed to make up a circle, which has a 20 ft. (6.0 m) outside diameter.

Overall Length

91.2″ (2316 mm)

Width

32.4″ (823 mm)

Weight

22.5 lbs. (10 kg)

The hi-load curved dolly track is constructed of anodized structural aluminum and designed to carry maximum loads with minimum deflection.

Flexing between crossbars is prevented as the rails are in contact with the ground along their entire length. Therefore, the load carrying capacity is rated in excess of two tons. Four of these curved sections are needed to make up a circle, which has a 14 ft. (4.2 m) outside diameter.

Overall Length

119″ (3018 mm)

Width

43.2″ (1097 mm)

Weight

29.5 lbs. (13.5 kg)

Hi-load swing fold dolly track is constructed of anodized structural aluminum, and designed to carry maximum loads with minimum deflection. The track rails are flush with the ground, and thus supported along their entire length preventing any flexing between crossbars.

The load carrying capacity of this track is rated in excess of two tons fitted with precision machined stainless steel cones and connectors for corrosion proof durability and maintenance free use.

This track is light enough to carry to any location but rugged enough to survive the heaviest usage and proven by time to sustain less than 20% of damage recorded on heavier steel track.

Std. Lengths

2 ft. (607 mm)

4 ft. (1219 mm)

6 ft. (1829 mm)

8 ft. (2439 mm))

10 ft. (3048 mm)

Weight Length

8.5 lbs. (3.9 kg)

13.5 lbs. (6.1 kg)

19.5 lbs. (8.9 kg)

23 lbs. (10.6 kg)

28.5 lbs. (13 kg)

The starter ramp for hi-load dolly track is constructed of anodized structural aluminum fitted with precision machined stainless steel cones and connectors, for corrosion proof durability.

Overall Length

27.6″ (701 mm)

Width

26.4″ (671 mm)

Weight

6.5 lbs. (3 kg)
