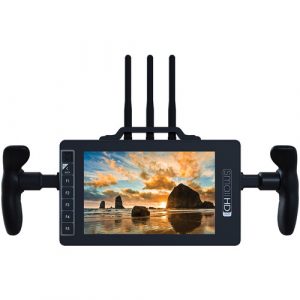

7″ SMALL HD 703 BOLT LCD
The 703 Ultrabright On-Camera Monitor is built for every environment, featuring a
daylight viewable screen, durable design, professional software toolset, and five user
function buttons. The 703 Ultrabright is made of an aluminum housing with optically
bonded gorilla glass display, making this one of the most durable monitors in the field.
Thanks to 2,200 nits of brightness and HDR preview, projects can be viewed in
color-accuracy in full sunlight. So no matter the time of day or environment, you can
guarantee a glare-free look at your production. This seven-inch monitor has a resolution
of 1800p and features HDR Preview with a 10-Bit ColorEngine. And despite being one
of our brightest seven-inch monitors available, the 503 maintains low power
consumption. Load any 3D LUT via SD card using SmallHD’s ColorFlow 3D LUT
engine.
The 703 Ultrabright features both a 3G SDI and HDMI input, a 3G SDI and HDMI
output, and two locking 2-pin Connectors, one for power input and one for power
distribution to an external device. In addition to 2-pin power, Gold Mount, V-Mount, and
Sony L-Series battery plates are available separately.
Specs
● Display
○ Panel Type: LTPS LCD
○ Diagonal Size: 7.02
○ Resolution: 1920 x 1080
○ Pixel Density: 323 ppi
○ Aspect Ratio: 16:9
○ Active Area: 7.02
○ Max Brightness: 2200 nits
○ Contrast: 1200:1
○ Gamut: 100% Rec 709
○ Color Depth: 10-Bit Color Intelligence Engine
○ Viewing Angle: 178 Degrees (CR<10)
○ Backlight Type: White LED
○ Adjustable Backlight: Yes
● Input Signal
○ 3G-SDI Input Types:
■ YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60,
1080i59.94, 1080i50
○ HD-SDI Input Types:
■ YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24,
1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24,
1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94,
720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
○ SD-SDI Input Types:
■ YCC 4:2:2 @ 10-bits: 480i29.97, 576i25
○ HDMI Input Types:
■ YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4:
1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25,
1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30,
1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60,
720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24,
720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100,
576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60,
480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200,
576i100, 576i50, 576i25
○ Audio Input Types
■ HDMI & SDI - Monitor through Speakers in Front Bezel or Through
Headphone Jack - Metering up to 8 channels
● Output Signal
○ 3G-SDI Output Types
■ YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60,
1080i59.94, 1080i50
○ HD-SDI Output Types
■ YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24,
1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24,
1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94,
720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
○ SD-SDI Output Types
■ YCC 4:2:2 @ 10-bits: 480i29.97, 576i25
○ HDMI Output Types
■ YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4:
1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25,
1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30,
1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60,
720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24,
720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100,
576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60,
480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200,
576i100, 576i50, 576i25
○ Audio Output Types
■ HDMI & SDI - Incoming Audio Stream is sent downstream via
HDMI or SDI connection
○ Connector Type
○ SDI:1x 3g Input, 1x 3g Output
○ HDMI:1x Input, 1x Output
○ Component: Not Supported
○ Composite: Not Supported
○ Audio:1x ⅛” Headphone Jack
○ Power In: 1x Locking 2-pin Connector
○ Power Out: 1x Locking 2-pin Connector for Power distribution to an
external device (Requires Power Input)
○ USB: 1x Micro USB
● Controls
○ Primary: Joystick Navigation, Dedicated Back/Power Button. 5 Additional
User Assignable Function Buttons
○ Data I/O:
■ Storage Media: SD Card for LUTs, Captured Images, Image
Overlays, Firmware Upgrades, Profile Saving.
■ USB: USB port supports storage devices for LUTs, Captured
Images, Image Overlays, Profile Saving.
● Power
○ Connector:
■ 2x Locking 2-pin Connectors: 1 for Power Input
■ 1 for Power distribution to an external device (Requires Power
Input)
○ Voltage: With DV Battery Plate: 6.0 - 8.4V 7.2V Nominal With High
Voltage Battery Plate: 12 - 34V 14.4V Nominal With Input: 12 - 34V Max
○ Consumption: 10-12 Watts
○ Power Supply: Included
○ Overload Protection: Yes
○ Output Voltage: Mirrors Input Voltage

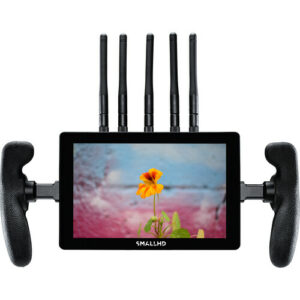

7″ SMALL HD CINE 7 BOLT
7″ Cine 7 On-Camera Monitor Kit with Bolt 4K Receiver from SmallHD provides
professional monitoring in a sharp 7″ display suitable for outdoor use. The Cine 7 supports up to
UHD 4K HDMI output as well as various HD and SD formats via one full-size HDMI input, one
HDMI output, one 3G-SDI input, and one 3G-SDI selectable input/output.
The monitor also supports cross conversion from HDMI to SDI and from SDI to HDMI. The
Bolt 4K module attaches to the back of the Cine 7 and can receive up to 4K30 video from up to
750′ away. Both the monitor and wireless module are powered with a Gold mount battery plate
that can also power the monitor with a separately available, high-capacity Gold mount
battery.
DISPLAY:
Antenna Ports
5 x RP-SMA Female
Embedded Audio
SDI: 2-Channel
HDMI: 2-Channel
Encryption
256-Bit AES
Audio Format
2-Channel 24-Bit 48 kHz LPCM Audio
Wireless Video Compression
Uncompressed
Timecode Support
Yes
Wireless Range
750′ / 228.6 m (Line-of-Sight)
# of Channels
13 (40 MHz)
25 (20 MHz)
Channel Bandwidth
40 MHz, 20 MHz
Frequency Range
Non-DFS Frequencies
US: 5.19 to 5.23 GHz
US: 5.75 to 5.79 GHz
DFS Frequencies
US: 5.27 to 5.67 GHz
Power
Gold Mount

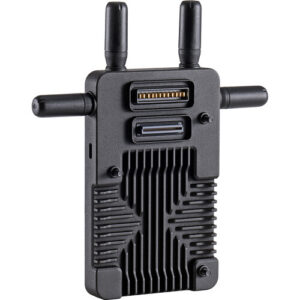

DJI Ronin 4D TX2 Video Transmitter
Transmit your Ronin 4D video footage using the Ronin 4D TX2 Video Transmitter from DJI. This compact transmitter uses DJI’s O3 Pro Video transmission technology to obtain up to a massive 20,000′ line-of-sight range with enhanced stability and interference resistance. It attaches to and is powered directly via the Ronin 4D gimbal body, saving the weight and space of a separate battery.

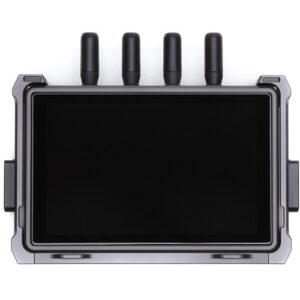

DJI Transmission with High-Bright Monitor Combo
Transmit high-definition video over 3 miles (line-of-sight) from your DJI drone or gimbal gear for monitoring with this Transmission with High-Bright Monitor Combo from DJI. The combo includes a transmitter and a monitor/receiver that transmits up to 1080p60 video using the highly efficient O3 Pro transmission technology via Wi-Fi 2.4 and 5 GHz frequencies. Optional high-gain antennas can be purchased to boost the signal quality and distance. The high-bright monitor features 1500 cd/m² brightness, 1920 x 1200 resolution, and a touchscreen display.
SPECS:
| Video I/O | |
| Embedded Audio | |
| Media/Memory Card Slot | |
| Latency | |
| Video Format | |
| Battery Type | |
| Power Consumption |
| Wireless Range | |
| # of Channels | |
| Channel Bandwidth | |
| Frequency Range | |
| Latency |

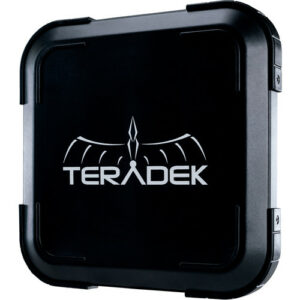

Teradek Bolt 10K Wireless Receiver
Teradek Bolt 10K is an ultra high-performance, zero-delay video transport device that receives
audio/video at up to 10,000 ft. of range with zero perceptible delays. The receiver includes an
integrated panel array, Gold-Mount battery plates and a ⅜” mounting point.
Bolt 10K receivers support 1080p60 4:2:2 video and are compatible with Bolt 3000 transmitter
units. Newly-designed chassis, hassle-free Tx/Rx pairing, robust range and visually lossless HD
quality video make this our strongest unit we’ve ever built.
Complete Bolt Set with Protective Utility Case
Wirelessly transmit visually lossless 1080p60
Video/Audio up to 10,000 ft (3048 meters) with imperceptible latency
Perfect for car chase and aerial/drone shoots
Full integrated with panel antenna
Rapid Reconnect & Real-Time Frequency Adjustment
Multicast up to 4 Receivers
Support camera metadata, timecode, and start/stop flags

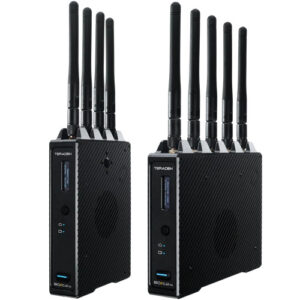

TERADEK BOLT 4K 750 WIRLESS TX/ RX
The Bolt 4K 750 TX/RX Set is a real-time wireless video transmission system that supports 1080p
and 2160p video signals at 60FPS with less than 1ms of delay at up to 750 feet. Key features
include increased range, faster reconnection times, easier setup with Bluetooth App for iOS or
Android, and more stable connectivity. These devices are cross-compatible with the entire Bolt
4K Family. Includes integrated 1/4″x20 and M3 mounting points.
Transmitter: 1x 12G-SDI, 1x HDMI 2.0, 1x 12G-SDI looping output.
Receiver: 2x 12G-SDI, 1x HDMI 2.0

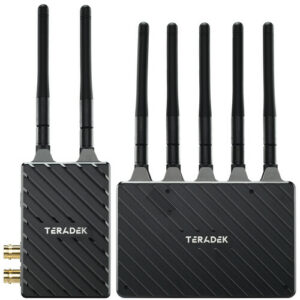

TERADEK BOLT 4K LT 750 WIRLESS TX/ RX
The Bolt 4K LT 750 4K TX/RX is a real time wireless video transmission system that supports
video signals up to 4Kp30 via HDMI at a line-of-sight distance of up to 750ft (228m) with no
image delay. Key features include increased range, faster reconnection times, easier setup with
Bluetooth App for iOS or Android, and more stable connectivity. These devices are
cross-compatible with the entire Bolt 4K Family.
TRANSMITTER:
Input: 1x HDMI 2.0 (up to 4Kp30), 1x 3G-SDI (up to 1080p60)
Output: 1x 3G-SDI (up to 1080p60)
RECIEVER:Output: 1x HDMI 2.0 (up to 4Kp30), 2x 3G-SDI (up to 1080p60)
TRUE HDR:
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut. Send and receive Log-enabled camera
signals with wide dynamic range in order to monitor and achieve balanced highlight and
lowlight regions with accurate color reproduction.
LINK:
Link up to 6 RX receivers to any 1 TX transmitter to enable multiple points of viewing.
WEIGHT:
TX Mounting: M3 / ¼”-20
RX Mounting: M3 / ¼”-20 / ⅜”x16
COMPADABILITY:Send and receive signals between any Bolt 4K series of devices for expanding workflow
requirements.
CAMERA METADATA:
Transmit metadata, timecode, and start/stop flags from most camera manufacturers

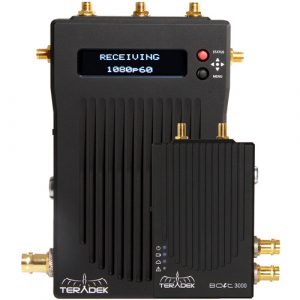

TERADEK BOLT PRO 3000 HDMI _ SDI
With highly refined software, new wireless radios, and a redesigned chassis, these models are the most reliable and capable monitoring solutions we have ever built. Metadata and timecode support, 3D LUTs, dual inputs/outputs, multicast capable (1 Transmitter can multicast up to 4 Receivers), manual frequency selection and USB 3.0 GRAB Engine are all included.
Product Highlights:
-Replacement for Transmitter
-Wirelessly transmit visually lossless 1080p60 Video/Audio up to 3000 ft
–< 0.001 seconds latency
-Rapid Reconnect & Real-Time Frequency Adjustment
-Multicast up to 4 Receivers
-Support camera metadata, timecode, and start/stop flags

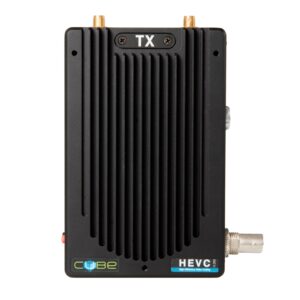

Teradek Cube 755
Teradek codecs can stream to any online video platform, including Facebook Live, YouTube
Live, Periscope, Twitch, and more. Go live on multiple platforms at the same time to increase
viewership and engagement with our Core platform

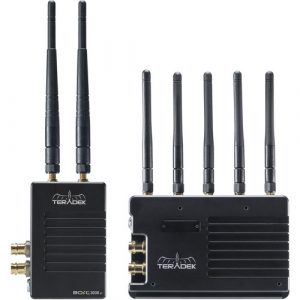

TERADEK XT 3000 WITH HDMI & SDI
The Bolt XT satisfies the needs of the most discerning professionals, from powerful software tools and rock-solid performance to smart power options and backward compatibility.
A key feature of the Bolt XT is its backward compatibility with any Bolt of the same range, Sidekick II / LT / XT, and 703 Bolt, giving users more flexibility building onto their existing systems or linking with others already on set. Unlike alternative wireless video systems, Bolt XT includes a unique AES 128 encryption algorithm to protect your video footage, ensuring that only authorized receivers can connect to your transmitter.
Each transmitter includes an HDMI, 3G-SDI and looping 3G-SDI output. Receivers feature an HDMI output as well as dual 3G-SDI outputs. While wireless performance is critical on set, so are practical mounting options that ensure optimal performance and a quick set-up. This XT line has several 1/4”-20 and 3/8” mounting points.
Product Highlights
– Compatible with 3rd generation Bolt 3000, Sidekick II, and 703 Bolt
– Professional software features: 3D LUTs, 5GHz spectrum analyzer, manual channel selection
– Dual input (SDI + HDMI) and SDI loop on the TX
– HDMI and Dual 3G-SDI outputs on RX
