AJA Hi5-Plus 3G-SDI to HDMI Mini-Converter
The AJA Hi5-Plus 3G-SDI to HDMI Mini-Converter allows you to output an SDI signal to an
HDMI monitor.
When used with a compatible HDMI monitor, it outputs a 30-bit Deep Color RGB signal,
providing the full range of color available on a 3G/HD-SDI signal.
Video Input
3G-SDI with embedded audio
Input Formats
525i, 625i
720p 50, 59.94, 60
1080i 50, 59.94, 60
1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080PsF 23.98, 24, 25, 29.97, 30 (converts to progressive)
2K x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
2K x 1080PsF 23.98, 24, 25, 29.97, 30 (converts to progressive)
Video Outputs
HDMI with embedded audio up to 8 channels (selectable by
MiniConfig software)
8-bit RGB 4:4:4
10-bit YCbCr 4:2:2
12-bit
Audio Input
SDI embedded audio, select 8 of 16 channels and pass to the HDMI
output
Audio Output
2-channel RCA-style (-10 dBV nominal)
Power
Uses AJA Power Supply model DWP-U-R1 (included)
100-240 V, 50/60 Hz universal input
+5 V DC regulated, 7.5 W capacity
Dimensions
4.6 x 2.4 x 1″ (11.7 x 6.1 x 2.5 cm)
AJA HI5FIBER HD/SD-SDI Over Fiber to HDMI Video and Audio Mini-Converter
Converts HD/SD-SDI over single mode 1310 nm fiber-optic cable (ST-style fiber
connector) to HDMI for driving HDMI monitors.
Embedded 8-channel HD/SD-SDI audio is supported in the HDMI output allowing a
convenient single cable audio/video connection.
The Hi5 provides 2-channel RCA style audio outputs for separate audio monitoring if
needed. A 3.28′ HDMI cable comes included, along with a universal power supply that comes
with international plug connectors for use around the world.
Inputs
Fiber-optic ST connector supporting SMPTE-259/292/296
HD/SD-SDI
Input Formats
525i
625i
720p 50/59.94/60
1080i 50/59.94/60
1080p 23.98/24/25/39.97/30
Outputs
HDMI with embedded audio
2-channel (L/R) RCA audio
Power
5 VDC regulated, 3 W
Dimensions
4.6 x 2.4 x 1″ (117 x 61 x 25 mm)
AJA UDC Converter
A broadcast quality Up/Down/Cross Mini-Converter which can convert between SD, HD,
and 3G video formats. Using the same AJA industry leading conversion technology as in our
model FS2, the UDC provides very high quality conversions in a cost-effective package.
I/Os include SD/HD/3G SDI Input and Output, HDMI output, and 2-channel RCA style audio
output. The UDC can be controlled by local dipswitches with additional control available via USB
and AJA’s MiniConfig application. A Reference Input allows the UDC to be locked to a local
reference.
SDI Input & Output
1 x SD/HD/3G-SDI input (auto-selected), SMPTE-292/296/424 (BNC connector)
1 x SD/HD/3G-SDI output, SMPTE-292/296/424 (BNC connector)
Formats
525i59.94, 625i50
1080i 50/59.94
720p 23.98/24/25/29.97/30/50/59.94/60
1080p 23.98/24/25/29.97/30/59.94/60
1080psf 23.98/24/25/29.97/30
Reference Input
Color Black
Tri-Level sync
HDMI Output
10-bit HDMI v1.4a
Audio I/O
16-channel embedded SDI audio input
16-channel embedded SDI audio output
8-channel HDMI audio output
2 RCA-style analog outputs at -10dBV (nominal)
HDCP
The UDC does not encode the HDMI output with
HDCP encryption. By definition, HD-SDI inputs to the UDC are unencrypted. The HDMI
specification requires HDMI monitors to support unencrypted inputs
User Controls
USB port used with supplied cable and MiniConfig
software application to configure device via PC/Mac
Power
5 VDC regulated, 3 W
Dimensions
5.8 x 3.1 x 1″ (147 x 79 x 25 mm)
AJA V2DIGITAL SD TO HD CONVERTER
A 10-bit conversion of component or composite analog video to SDI at either SD or HD
resolutions. It utilizes a full 10-bit data path and 2x oversampling to ensure a high-quality
conversion.
Its low power consumption and a compact size, makes it suitable for use on set or in AV
installations that integrate different signal types.
The V2Digital supports NTSC, PAL, 720p at 50/59.94/60 Hz, 1080i at 50/59.94/60 Hz, and
1080psf at 23.98/24/25 Hz. The converter accepts YPbPr (SMPTE, EBU-N10), Betacam, or RGB
component inputs, and NTSC/PAL or S-Video composite inputs.
A 4-line Adaptive Comb Filter provides high-quality decoding of composite sources. The
comb filter can be switched to 2-line or notch modes for minimum delay requirements.
Formats
1080psf 23.98/24/25 Hz
1080i 50/59.94/60 Hz
720p 50/59.94/60 Hz
525i/625i 50/59.94/60 Hz
Inputs
BNC:
HD component YPbPr, RGB (SMPTE-274)
SD component (Betacam, EBU-N10), composite, YC (S-Video)
Output
1 x BNC, HD/SD-SDI (SMPTE-259/292/296M)
1 x USB 2.0 (for connection to Mac or PC)
Dip Switches
Control (Local/Remote)
Component/Composite (SD oOnly)
Format (YPbPr/YC or RGB)
Pedestal Present (on/off) (SD only)
Power
5 to 20 VDC, 3 watts
Dimensions
5.1 x 2.4 x 1.0″ (13.0 x 6.1 x 2.5 cm)
Weight
Not specified by manufacturer
BLACK MAGIC DESIGN MINI CONVERTER ANALOG TO SDI
The Mini Converter Analog to SDI from Blackmagic will accept an HD/SD component,
NTSC, PAL, or S-video signal and convert it to an SDI output. You can also choose to embed SDI
audio from balanced AES/EBU or analog audio inputs.
Use this device to convert video from Betacam SP, VHS, set-top boxes, HDV cameras, and
other similar devices.
Input
(1) component, NTSC, PAL, and S-video via 3x BNCs
Output
(2) SDI (switchable between SD, HD & 3Gbs SDI)
Audio
Analog:
(2) channels of professional balanced analog with standard 1/4″ jack connections
Digital:
(2) channels of professional balanced digital with standard 1/4″ jack connections, AES/EBU
standard
(Audio inputs are shared)
Power
12VDC
Blackmagic Design Micro Converter HDMI to SDI
Super compact and rugged, the Micro Converter HDMI to SDI 3G from Blackmagic
Design enables you to link HDMI cameras or computers to pro-style SDI (BNC) monitors or
components.
You can also use several units to extend HDMI over long distances using SDI cable. This
compact converter has one HDMI input and two 3G-SD/HD/SDI outputs that can be set to Level
A or B. It auto-detects and matches your HDMI input to the SDI output and is compatible with
input/output resolutions up to 1080p60.
The Micro Converter HDMI to SDI 3G features HDMI timecode support, SDI re-clocking for
stability over long cable runs, and support for a wide range of pro broadcast resolutions
including cine-style 48 fps.
Video Inputs
1 x HDMI (2.0)
Audio Inputs
None
Video Outputs
2 x BNC (3G-SDI)
Audio Outputs
None
Other I/O
1 x USB-C Input
Expansion Slots
None
Input Video Format
HDMI (8/10-Bit 4:2:2 RGB, YUV)
1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
Output Video Format
SDI (8/10-Bit 4:2:2 RGB, YUV)
DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
DCI 2KPsF 25/29.97/30 fps
1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1080PsF 25/29.97/30 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
480i / 525 lines 29.97 fps
576i / 625 lines 25 fps
Embedded Audio
HDMI/SDI
Video Standard Compliance
SMPTE
259M/292M/296M/424M/425M
HDCP Support
Yes, Version 2.2
Power I/O
1 x USB-C (4.4 to 5.2 VDC) Input
Power Consumption
2 W
Convergent Design Odyssey 7Q+/Oled Monitor | Kit
KIT INCLUDES:
Convergent Design Odyssey 7Q+/OLED Monitor
Convergent Design 7Q Wall Power
Convergent Design 7Q Battery Plate G-Mount
Convergent Design 7Q Sun Hood
Convergent Design Power Cable P-Tap
Convergent Design Power Cable XLR
Convergent Design USB 3.0 to SATA Adapter
Convergent Design USB 3.0 to SATA AC Adapter
Noga Cine Arm 11″
2x BNC Cable 18″
2x Convergent Design 256GB SSD Drive Odyssey 7Q
DECIMATOR MD-QUAD
The Decimator MD-QUAD (3G/HD/SD)SDI Quad Split with (3G/HD/SD)-SDI and HDMI
Outputs is a low cost, miniature SDI Quad-Splitter with SDI and HDMI Outputs.
With
four independent SDI inputs, you can now monitor your camera feeds without the hassle of
ensuring all inputs are the same SDI standard. Decimator MD-QUAD (3G/HD/SD)SDI Quad Split
with (3G/HD/SD)-SDI and HDMI Outputs.
Video Formats
3G:SMPTE 424M at 2.97 and 2.967Gb/s
1080p at 60/59.94/50Hz
HD:SMPTE 292M/274M/296M at 1.485 and 1.435Gb/s
1080i at 60/59.94/50Hz
1080p/psf at 30/29.97/25/24/23.98Hz
720p at 60/59.94/50/30/29.97/25/24/23.98Hz
SD:SMPTE 259M 270Mb/s
625i50
525i59.94
Inputs
Input Equalization > 100M using Belden 1694A
USB for control and updates
GPI on RJ-45
Led Status
Power
4x Signal lock and rate
Power
5V to +24V DC, 8 Watts
I38Positive Centre Pin
Menu Options
Input status for all 4 inputs
Output format
Output selection of Quad Split or input 1, 2, 3 or 4
Output aspect and type of 16:9 or 4:3 at either 90 or 100% of screen size
Individual aspect format for each input of Same as output, Letter-box or Pillar-box
Border Enable
Quad split mode reference of either Free-run or input 1
Enables for On-Screen Overlays
Basic Audio Meter control
Outputs
1 x 10-bit (3G/HD/SD)-SDI Re-clocked
HDMI
Dimensions
90 x 94 x 23mm / 3.54 x 3.70 x 0.9″
DJI Ronin 4D TX2 Video Transmitter
Transmit your Ronin 4D video footage using the Ronin 4D TX2 Video Transmitter from DJI. This compact transmitter uses DJI’s O3 Pro Video transmission technology to obtain up to a massive 20,000′ line-of-sight range with enhanced stability and interference resistance. It attaches to and is powered directly via the Ronin 4D gimbal body, saving the weight and space of a separate battery.
DJI Transmission with High-Bright Monitor Combo
Transmit high-definition video over 3 miles (line-of-sight) from your DJI drone or gimbal gear for monitoring with this Transmission with High-Bright Monitor Combo from DJI. The combo includes a transmitter and a monitor/receiver that transmits up to 1080p60 video using the highly efficient O3 Pro transmission technology via Wi-Fi 2.4 and 5 GHz frequencies. Optional high-gain antennas can be purchased to boost the signal quality and distance. The high-bright monitor features 1500 cd/m² brightness, 1920 x 1200 resolution, and a touchscreen display.
SPECS:
| Video I/O | |
| Embedded Audio | |
| Media/Memory Card Slot | |
| Latency | |
| Video Format | |
| Battery Type | |
| Power Consumption |
| Wireless Range | |
| # of Channels | |
| Channel Bandwidth | |
| Frequency Range | |
| Latency |
INOGENI USB 3.0 SDI Video Capture Card
Easy and reliable tool to capture uncompressed SDI video with embedded audio for
your PC for recording, editing, videoconferencing and streaming applications.
No driver installation is necessary and it will work on all motherboards and USB 3.0
chipsets. It features a 3GSDI input with active loop output and supports SD and HDTV video
formats, up to 1080p60.
Compact in size and powered directly from a USB 3.0 port, the converter is a practical and
easy-to-use USB 3.0 capture solution. It is compatible with Windows, Mac OSX, Linux and
Android operating systems and is UVC-compliant, so it will work with all DirectShow compatible
software.
The converter supports 1080p resolutions up to 60 fps. All SD and HD resolution signals are
converted to 4:2:2 8-bit color space over USB 3.0. The embedded audio in your SDI signal is
extracted and output as two-channel LPCM. A USB 3.0 cable comes included.
Input: Connector
1 x BNC(3GSDI input), 1 x BNC (3GSDI active loop
out)
Input: Video Resolutions
1080p59.94/60 /50 (SMPTE 425M Level A/B),
1080i(SMPTE 274M), 720p(SMPTE 296M), SD(SMPTE 259C)
Input: Jitter(alignment)
HD/SD: <0.2UI
3Gb/s: <0.4UI
Input: Cable length
150m / 492.12′ at 1.485 Gb/s
120m / 393.70′ at 2.970 Gb/s
Input: Frame Rates
60, 50, 30, 29.97, 25, 24, 23.98 Hz
Input: Color
Space4:2:2
Input: Sampling Rate
148.5/148.35 MHz
Input: Embedded Audio
Ch 1&2 48kHz LPCM
Output: Connector
1 x USB 3.0
Output: Color
SpaceYCbCr (YUY2) 4:2:2 8-bit
Output: Video Scaler
Automatic hardware based
Output: Color Space
ConversionAutomatic hardware based
Output: Sampling
ConversionAutomatic hardware based
Output: Frame Rate
ConversionAutomatic hardware based
Output: Audio
2-channel LPCM audio 48 kHz from SDI
Compatibility: Operating System
NO driver installation necessary.
Windows 7/8/8.1(32/64-bit) OSX (10.10 and above) Linux (kernel v2.6.38 and above)
Android
Compatibility: Host Requirements USB 3.0 port
Compatibility: Motherboard
Compatible with all motherboards Intel, Renesas,
ASMedia and Fresco Logic
Compatibility: Cameras Supported
Cameras and camcorders with an HDMI
output
Software Compatibility
UVC-compliant Runs with all software compatible to
DirectShow, V4L2, QuickTime and AVFoundation.
USB 3Power
5V, 530 mA
Dimensions
3.2 x 2.9 x 0.75″ / 8.13 x 7.37 x 1.91cm
Weight
139g / 4.90oz

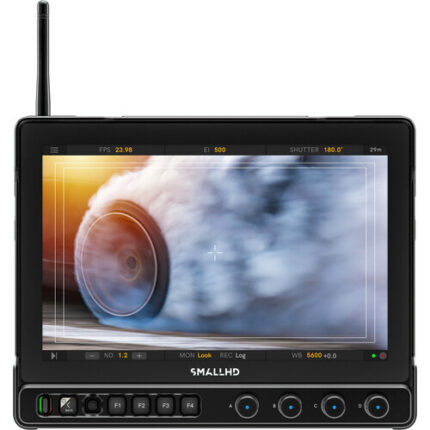

SmallHD ULTRA 10 4K Monitor
| Display Size | |
| Native Resolution | |
| Touchscreen | |
| HDR Support | |
| Video I/O |
|
| Media/Memory Card Slot | |
| Video Format |
|
| Battery |
| Panel Type | |
| Display Size | |
| Native Resolution | |
| Aspect Ratio | |
| Touchscreen | |
| Maximum Brightness | |
| Contrast Ratio | |
| HDR Support | |
| LUT Support | |
| Image Controls |
| Video I/O | |
| Audio I/O | |
| Power I/O | |
| Other I/O | |
| Media/Memory Card Slot |
| Wi-Fi | |
| Bluetooth | |
| Mobile App Compatible |
| Video Format |
| Input Power | |
| Battery |
| Environmental Resistance | |
| Dimensions | |
| Weight |
SONY AXS-R7 External 4K Portable Memory Recorder
4K RAW / X-OCN recording at 120 fps* and cache recording speeds up 4K production
workflow
The durable, dust and splash-proof AXS-R7 Portable Memory Recorder attaches seamlessly to
the high end F55 and F5 CineAlta cameras, speeding up the 4K production workflow without
compromising quality. The AXS-R7 doubles 4K RAW recording from 60 fps up to 120 fps for the
F55 camera compared to previous Sony recorders. For shooting at higher frame rates, the
recorder captures 2K RAW at up to 240 fps for the F55 and F5, for playback with 10x super slow
motion. Working with high-speed AXSM™ A Series memory cards, the recorder features dual
memory card slots for extra security and to extend recording times. The recorder also offers 4K
RAW cache recordings up to 30 seconds while in standby mode. The tough, all-metal casing
makes the AXS-R7 the ideal companion to the F55 and F5 for all kinds of high-end drama,
documentary and wildlife productions.
In addition to AXS-R7 has new recording format, X-OCN. This new format support the high
quality workflows at moderate bitrate. The system retains everything the sensor sees, delivering
tonal gradation with 16-bit precision, ideal for High Dynamic Range (HDR) image grading and
other cutting-edge workflows that require higher than 10-bit or 12-bit precision.
Teradek Bolt 10K Wireless Receiver
Teradek Bolt 10K is an ultra high-performance, zero-delay video transport device that receives
audio/video at up to 10,000 ft. of range with zero perceptible delays. The receiver includes an
integrated panel array, Gold-Mount battery plates and a ⅜” mounting point.
Bolt 10K receivers support 1080p60 4:2:2 video and are compatible with Bolt 3000 transmitter
units. Newly-designed chassis, hassle-free Tx/Rx pairing, robust range and visually lossless HD
quality video make this our strongest unit we’ve ever built.
Complete Bolt Set with Protective Utility Case
Wirelessly transmit visually lossless 1080p60
Video/Audio up to 10,000 ft (3048 meters) with imperceptible latency
Perfect for car chase and aerial/drone shoots
Full integrated with panel antenna
Rapid Reconnect & Real-Time Frequency Adjustment
Multicast up to 4 Receivers
Support camera metadata, timecode, and start/stop flags
TERADEK BOLT 4K 750 WIRLESS TX/ RX
The Bolt 4K 750 TX/RX Set is a real-time wireless video transmission system that supports 1080p
and 2160p video signals at 60FPS with less than 1ms of delay at up to 750 feet. Key features
include increased range, faster reconnection times, easier setup with Bluetooth App for iOS or
Android, and more stable connectivity. These devices are cross-compatible with the entire Bolt
4K Family. Includes integrated 1/4″x20 and M3 mounting points.
Transmitter: 1x 12G-SDI, 1x HDMI 2.0, 1x 12G-SDI looping output.
Receiver: 2x 12G-SDI, 1x HDMI 2.0
