The PVM-A250 25-inch, Full HD monitor achieves the industry-leading lightweight and
shallow body*, with an approximately 40 per cent reduction compared to the previous
PVM-2541A model. It is easy to carry, even by one person. The PVM-A250 incorporates
the TRIMASTER EL™ OLED panel and offers the industry’s widest viewing angles of
any professional flat-panel monitor on the market, making group monitoring easy. The
stylish new design also includes a, robust, optional protection panel and corner
bumpers**. The latest camera-linkage functions, such as camera and lens metadata
display and a Picture and Picture function, provide the convenience of working
efficiency both in the field and in the post process. Version 2.0 of the PVM-A250
expands and enhances the monitor’s ability to support 4K production, shopping
channels, field and graphics applications.
Specs
● Picture Performance
○ Panel: OLED panel
○ Picture Size (Diagonal): 623.4 mm (24 5/8 inches)
○ Effective Picture Size (H x V): 543.4 x 305.6 mm (21 1/2 x 12 1/8 inches)
○ Resolution (H x V): 1920 x 1080 pixels (Full HD)
○ Aspect: 16:9
○ Panel Drive: RGB 10-bit
○ Viewing Angle (Panel Specification): 89°/89°/89°/89° (typical)
(up/down/left/right contrast > 10:1)
● Input
○ Composite Input: BNC (x1), 1.0 Vp-p ±3dB sync negative
○ SDI: Input BNC (x2)
○ HDMI Input: HDMI (x1) (HDCP correspondence)
○ Audio Input: Stereo mini jack (x1), -5 dBu 47 kΩ or higher
○ Parallel Remote: RJ-45 modular connector 8-pin (x1) (Pin-assignable)
○ Serial Remote (LAN):
■ RJ-45 modular connector (x1) (Ethernet
■ 10BASE-T/100BASE-TX)
● Output
○ Composite Output:
■ BNC (x1),
■ Loop-through, with 75 Ω automatic termination
○ SDI Output:
■ BNC (x2),
■ Output signal amplitude: 800 mVp-p ±10%, Output impedance: 75
Ω unbalanced
○ Audio Monitor Output: Stereo mini jack (x1)
○ Speaker (Built-in) Output: 1.0 W (mono)
○ Headphone Output: Stereo mini jack (x1)
● General
○ Power Requirements: AC 100 V to 240 V, 1.3 A to 0.6 A, 50/60 Hz
○ Power Consumption:
■ Approx. 115 W (max.),
■ Approx. 80 W (average power consumption in the default
status)
○ Operating Temperature:
■ 0°C to 35°C (32°F to 95°F),
■ Recommended: 20°C to 30°C (68°F to 86°F)
○ Operating Humidity: 30% to 85% (no condensation)
○ Storage / Transport Temperature: -20°C to +60°C (-4°F to +140°F)
○ Storage / Transport Humidity: 0% to 90%
○ Operating / Storage / Transport Pressure: 700 hPa to 1060 hPa
○ Dimensions (W x H x D):
■ 581.0 x 386.6 x 65.5 mm* (22 7/8 x 15 1/4 x 2 5/8 inches)
(without monitor feet),
■ 581.0 x 409.1 x 165.0 mm (22 7/8 x 16 1/8 x 6 1/2 inches)
(with monitor feet)
○ Mass: Approx. 6.1 kg (13 lb 7.2 oz)
○ Supplied Accessories:
■ AC power cord (1),
■ AC plug holder (1),
■ Before Using This Unit (1),
■ CD-ROM (1)
○ Optional Accessories: SU-561 Monitor Stand, BKM-PP25 Protection kit

The PVM-2541 “All in one” OLED picture monitor delivers outstanding, full-HD RGB
10-bit driver picture quality and professional features in a lightweight, compact design.
Flexible mount options make the 25-inch monitor ideal for desktop editing, office
viewing, studio monitor walls and OB vans.
Superb picture performance
The Super Top Emission OLED display panel benefits from TRIMASTER EL technology.
It offers superb black performance, wide color gamut and quick response with virtually
no motion blur. By combining the Sony OLED display panel (Full HD, 10-bit driver) and
Sony’s OLED processing technologies, the PVM-2541 OLED monitor delivers
groundbreaking picture quality.
Accepts computer signals via HDMI
The PVM-2541 accepts various computer signals input up to 1920 x 1080 through its
HDMI connector.

● Picture Performance
○ Panel: OLED panel
○ Picture Size (Diagonal): 623.4 mm, 24 5/8 inches
○ Effective Picture Size (H x V): 543.4 x 305.6 mm, 21 1/2 x 12 1/8 inches
○ Resolution (H x V): 1920 x 1080 pixels (Full HD)
○ Aspect: 16:9
○ Pixel Efficiency: 0.9999
○ Panel Drive: RGB 10-bit
○ Viewing Angle (Panel Specification): 89°/89°/89°/89° (typical)
(up/down/left/right contrast 10:1)
○ Normal Scan: 0% scan
○ Over Scan: 5% over scan
○ Color Temperature: D65, D93, User
○ Warm-up Time: Approx. 30 minutes
● Input
○ Composite Input: BNC (x1), 1.0 Vp-p ±3dB sync negative
○ SDI Input: BNC (x2)
○ HDMI Input: HDMI (x1) (HDCP correspondence)
○ Audio Input: Stereo mini jack (x1), -5 dBu 47 kΩs or higher
○ Parallel Remote:
■ Modular connector 8-pin (x1)
■ (Pin-assignable)
○ Serial Remote (LAN): RJ-45 (x1) (Ethernet, 10BASE-T/100BASE-TX)
● Output
○ Composite Output:
■ BNC (x1)
■ Loop-through, with 75 Ω automatic termination
○ SDI Output:
■ BNC (x1)
■ Output signal amplitude: 800 mVp-p ±10%
■ Output impedance: 75 Ω unbalanced
○ Audio Monitor Output: Stereo mini jack (x1)
○ Speaker (Built-in) Output: 1.0 W (mono)
○ Headphone Output: Stereo mini jack (x1)
● General
○ Power Requirements: 100 V to 240 V AC, 1.4 A to 0.6 A, 50/60 Hz
○ Power Consumption
■ Approx. 130 W (max.)
■ Approx. 88 W (average power consumption in the default status)
○ Inrush Current
■ (1) Maximum possible inrush current at initial switch-on (Voltage
changes caused by manual switching): 40 A peak, 8 A r.m.s. (240V
AC)
■ (2) Inrush current after a mains interruption of five seconds (Voltage
changes caused at zero-crossing): 40 A peak, 8 A r.m.s. (240V AC)
○ Operating Temperature
■ 0°C to 35°C (Recommended: 20°C to 30°C)
■ 32°F to 95°F (Recommended: 68°F to 86°F)
○ Operating Humidity: 30% to 85% (no condensation)
○ Storage/Transport Temperature
■ -20°C to +60°C
■ -4°F to +140°F
○ Storage/Transport Humidity: 0% to 90%
○ Operating/Storage/Transport Pressure: 700 hPa to 1060 hPa
○ Dimensions (W x H x D) *1
■ 576.0 x 408.8 x 110.0 mm
■ 576.0 x 424.8 x 171.4 mm (with stand)
■ 22 3/4 x 16 1/8 x 4 3/8 inches
■ 22 3/4 x 16 3/4 x 6 3/4 inches (with stand)
○ Mass
■ Approx. 10.6 kg
■ Approx. 12.7 kg (with an optional SU-561 monitor stand)
■ Approx. 23 lb 5.9 oz
■ Approx. 27 lb 16 oz (with an optional SU-561 monitor stand)
○ Supplied Accessories
■ AC power cord (1)
■ AC plug holder (1)
■ Operating instructions (1)
■ CD-ROM (1)
■ Using the CD-ROM Manual (1)
○ Optional Accessories: SU-561 Monitor Stand

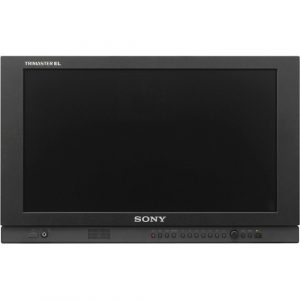

The PVM-A170 17-inch, Full HD monitor achieves the industry-leading
lightweight and shallow body*, with an approximately 40 per cent reduction
compared to the previous PVM-1741A model. It is easy to carry, even by one
person. The PVM-A170 incorporates the TRIMASTER EL™ OLED panel and
offers the industry’s widest viewing angles of any professional flat-panel
monitor on the market, making group monitoring easy. The stylish new
design also includes a, robust, optional protection panel and corner
bumpers**. The latest camera-linkage functions, such as camera and lens
metadata display and a Picture and Picture function, provide the convenience
of working efficiency both in the field and in the post process. Version 2.0 of
the PVM-A170 expands and enhances the monitor’s ability to support 4K
production, shopping channels, field and graphics applications.
Specs
● Picture Performance
○ Panel: OLED panel
○ Picture Size (Diagonal): 419.7 mm (16 1/2 inches)
○ Effective Picture Size (H x V): 365.8 x 205.7 mm (14 1/2 x 8 1/8 inches)
○ Resolution (H x V): 1920 x 1080 pixels (Full HD)
○ Aspect: 16:9
○ Panel Drive: RGB 10-bit
○ Viewing Angle (Panel Specification): 89°/89°/89°/89° (typical)
(up/down/left/right contrast > 10:1)
● Input
○ Composite Input: BNC (x1), 1.0 Vp-p ±3dB sync negative
○ SDI: Input BNC (x2)
○ HDMI Input: HDMI (x1) (HDCP correspondence)
○ Audio Input: Stereo mini jack (x1), -5 dBu 47 kΩ or higher
○ Parallel Remote: RJ-45 modular connector 8-pin (x1) (Pin-assignable)
○ Serial Remote (LAN):
■ RJ-45 modular connector (x1) (Ethernet
■ 10BASE-T/100BASE-TX)
○ DC Input: XLR-type 4-pin (male) (x1) DC 12 V to 16 V (output impedance
0.05 Ω or less)
● Output
○ Composite Output:
■ BNC (x1)
■ Loop-through, with 75 Ω automatic termination
○ SDI Output:
■ BNC (x2)
■ Output signal amplitude: 800 mVp-p ±10%
■ Output impedance: 75 Ω unbalanced
○ Audio Monitor Output: Stereo mini jack (x1)
○ Speaker (Built-in) Output: 1.0 W (mono)
○ Headphone Output: Stereo mini jack (x1)
● General
○ Power Requirements:
■ AC 100 V to 240 V
■ 0.9 A to 0.5 A
■ 50/60 Hz DC 12 V to 16 V
■ 6.4 A to 4.8 A
○ Power Consumption
■ Approx. 75 W (AC power supply) (max.)
■ Approx. 60 W (AC power supply) (average power consumption in
the default status)
○ Operating Temperature:
■ 0°C to 35°C (32°F to 95°F)
■ Recommended: 20°C to 30°C (68°F to 86°F)
○ Operating Humidity: 30% to 85% (no condensation)
○ Storage / Transport Temperature: -20°C to +60°C (-4°F to +140°F)
○ Storage / Transport Humidity: 0% to 90%
○ Operating / Storage / Transport Pressure: 700 hPa to 1060 hPa
○ Dimensions (W x H x D):
■ 435.0 x 274.0 x 65.5 mm* (17 1/4 x 10 7/8 x 2 5/8 inches) (without
monitor feet),
■ 435.0 x 296.5 x 165.0 mm (17 1/4 x 11 3/4 x 6 1/2 inches) (with
monitor feet)
○ Mass:Approx. 4.2 kg(9Ib 4.2 oz)
○ Supplied Accessories:
■ AC power cord (1)
■ AC plug holder (1)
■ Handle (1) (including 4 screws)
■ Before Using This Unit (1)
■ CD-ROM (1)
○ Optional Accessories:
■ SU-561 Monitor Stand
■ MB-P17 Mounting bracket
■ BKM-PP17 Protection kit *Without projection parts.
