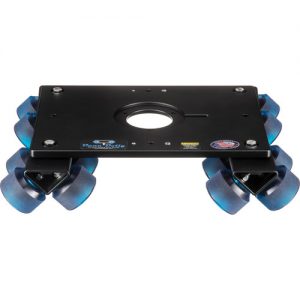

Dana Dolly
Designed for the times where you just want to do a little 6′ to 8′ dolly move without a lot of setup. The Dana Dolly is easy to set up, can be used with a variety of track options, and can be supported using standard junior stands, apple boxes, or the ground, whatever the shot requires.
Whether you’re an established professional or just getting started, the Dana Dolly is a great solution for adding production value to your shoot. Designed to be flexible, affordable, and easy to set up. Designed by a key grip with over 20 years’ experience in all types of production, the design is both simple and practical. The Mitchell Mount can take all types of camera heads with available adapters. The sixteen- wheel design with floating trucks provides a smooth glide. The track ends and center support can use any 1 1/4″ pipe as a track: aluminum, stainless steel, etc. So if you’re on location and don’t want to pack track, you can stop by a homecenter and pick up some pipe or conduit as an alternative to the Schedule 80 aluminum pipe we recommend for everyday use.
Dana Dolly Portable Track
Each schedule 80 pipe is made from durable aluminum, measures 39″ in length and 1.25″ in diameter, and features threading on each end to interconnect and create a longer track to support your original Dana Dolly. The carry bag features individual sleeves for each track and includes a removable shoulder strap and a carry handle.
Overall Length – Not Specified by Manufacturer
Number of Sections – 6
Section Length – 39″ / 99.06 cm
Diameter – 1.25″ / 3.17 cm
Rail Material – Aluminum
Doorway Dolly
The Doorway Dolly will move through a full range of travel with either the Push Bar or Pull Bar. Load it with gear to get to the location with ease! The platform can be flipped over for even lower camera positioning. Ground clearance is 9″ or 3″ when inverted. The removable side boards add an extra 10″ per side for increased platform width.

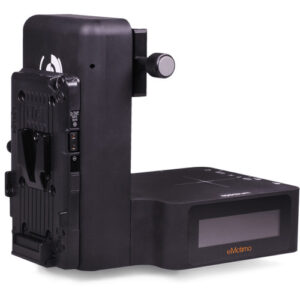

eMotimo Spectrum ST4 Pro
The Spectrum ST4 + Fz Pro from eMotimo adds FIZ control to the ST4 Motion Control Pan & Tilt Head. This robust aluminum head supports a maximum equipment load of 15 lb and includes a 3.9″ forward/back adjustment plate for proper camera balance. Head features include smooth ramping, the ability to set up to seven keyframes, and 11 preset moves ranging from a quiet interview to turbo mode. This motion control head features accurate move repetition, even at high speeds.
FilmAir 45 Deg. Curved 24-1/2″ Dolly Track
The hi-load curved dolly track is constructed of anodized structural aluminum and designed to carry maximum loads with minimum deflection.
The inner and outer rails are in contact with the ground along their entire length preventing any flexing between cross bars.
Therefore, the load carrying capacity is rated in excess of two tons. Eight of these curved sections are needed to make up a circle, which has a 20 ft. (6.0 m) outside diameter.
Overall Length
91.2″ (2316 mm)
Width
32.4″ (823 mm)
Weight
22.5 lbs. (10 kg)
FilmAir 90 Deg. Curved 24-1/2″ Dolly Track
The hi-load curved dolly track is constructed of anodized structural aluminum and designed to carry maximum loads with minimum deflection.
Flexing between crossbars is prevented as the rails are in contact with the ground along their entire length. Therefore, the load carrying capacity is rated in excess of two tons. Four of these curved sections are needed to make up a circle, which has a 14 ft. (4.2 m) outside diameter.
Overall Length
119″ (3018 mm)
Width
43.2″ (1097 mm)
Weight
29.5 lbs. (13.5 kg)
FilmAir Hi-load Aluminum 24-1/2″ Dolly Track
Hi-load swing fold dolly track is constructed of anodized structural aluminum, and designed to carry maximum loads with minimum deflection. The track rails are flush with the ground, and thus supported along their entire length preventing any flexing between crossbars.
The load carrying capacity of this track is rated in excess of two tons fitted with precision machined stainless steel cones and connectors for corrosion proof durability and maintenance free use.
This track is light enough to carry to any location but rugged enough to survive the heaviest usage and proven by time to sustain less than 20% of damage recorded on heavier steel track.
Std. Lengths
2 ft. (607 mm)
4 ft. (1219 mm)
6 ft. (1829 mm)
8 ft. (2439 mm))
10 ft. (3048 mm)
Weight Length
8.5 lbs. (3.9 kg)
13.5 lbs. (6.1 kg)
19.5 lbs. (8.9 kg)
23 lbs. (10.6 kg)
28.5 lbs. (13 kg)
FilmAir Starter Ramp for 24″ Dolly Track
The starter ramp for hi-load dolly track is constructed of anodized structural aluminum fitted with precision machined stainless steel cones and connectors, for corrosion proof durability.
Overall Length
27.6″ (701 mm)
Width
26.4″ (671 mm)
Weight
6.5 lbs. (3 kg)
J.L. Fisher Jib Model 20
They are smooth, quiet and easy to set up, with the J.L. Fisher reputation for being well constructed and easily maintained. All jib arms come complete with weight carts, leveling offsets and angle plates.
Max payload with std. weights is
132 lbs (60 kg)
Max payload with XRW weights is
148 lbs ( 83 kg)
Max height on 10 Dolly beam is 8ft 6 in (2.6m)
Max height on 10 Dolly Center Mount 8ft 3 in (2.5m)
Model 20 on 9 or 10 Dollies with payload over 100 lbs requires Center Mount and on 11 Dolly always requires Center Mount
J.L. Fisher Jib Model 21
They are smooth, quiet and easy to set up, with the J.L. Fisher reputation for being well constructed and easily maintained. All jib arms come complete with weight carts, leveling offsets and angle plates.
Max payload with std. weights is
118 lbs (54 kg)
Max payload with XRW weights is
164 lbs ( 74 kg)
Max height on 10 Dolly beam is 9ft 6 in (2.9m)
Max height on 10 Dolly Center Mount 9ft 4 in (2.8m)
Model 21 on 9 or 10 Dollies with payload over 100 lbs requires Center Mount and on 11 Dolly always requires Center Mount
J.L. Fisher Jib Model 22
They are smooth, quiet and easy to set up, with the J.L. Fisher reputation for being well constructed and easily maintained. All jib arms come complete with weight carts, leveling offsets and angle plates.
Max payload with std. weights is
124 lbs (56 kg)
Max payload with XRW weights is
175 lbs ( 80 kg)
Max height on 10 Dolly Center Mount 11ft 5in (3.5m)
Model 22 on ALL Dollies requires Center Mount
J.L. Fisher Jib Model 23
Can Be built to 7 different lengths!
The Model 23 Jib is a stable, yet lightweight sectional arm used for Features, Television, Commercials, Music Videos, and Live Productions. The Jib sections are ergonomic, easy to handle and assemble quickly. Color-coded, pre-tensioned cables secure the assembled sections into an extremely rigid Jib. The Model 23 Jib rotates 360 degrees and enables the operator to position the camera at various elevations from –9 ft 4 in to 20 ft 7 in high.
The Model 23 can be used on the Model 9 and 10 camera dollies with a center mount and 18 in RJ18 Heavy Duty Riser.
The Model 23 should not be used with the Model 11 Dolly.
-The Model 23 Jib sections, cables and parts store conveniently in compartments in a self-contained utility cart.
-Four weight carts are provided for easy transportation of weights and other accessories.
-The Jib can be configured in 3 foot increments from 6’ (1.83m) to 21’ (6.4m).
-Support cables are pre-adjusted to the proper length and color coded for easy assembly.
-Assembly instructions for all lengths and safety guidelines included.
-All required parts for all 7 lengths are included in the Utility Cart.
Model 10 Dolly
Recognized as the industry standard, the Model 10 Dolly is manufactured from the highest quality materials and components to meet the demanding needs of the motion picture, television and video industries.
This stable, reliable Dolly offers operators versatile features and a wide variety of accessories. The Model 10 Dolly is smooth, quiet and easy to use, with a reputation for being safe, well-made and low maintenance.
Model 11 Dolly
The Model 11 is the smallest Fisher Dolly. Lightweight and compact, it is built with the same high quality standards found in all J.L. Fisher products. The Model 11 Dolly shares the same controls and characteristics of the Model 10 Dolly and has a complete line of its own accessories. It operates effortlessly on track, making the Model 11 and Model 10 an excellent two dolly combination.
The Model 11 Dolly is engineered and manufactured to meet the demanding production needs of the motion picture, television and video industries. Compact size, three-way steering and a solid lift beam give operators a wide variety of options. The reliable, quiet, smooth and safe Model 11 requires minimal maintenance.
