Cooke 18mm T2.0 S7/i Full Frame Plus Prime Lens (PL Mount)

The Cooke 18mm T2.0 S7/i Full Frame Plus Prime Lens is designed to cover full frame cinema camera sensors up to at least the full sensor area of the RED Weapon 8K (46.31mm image circle). It is color-matched to other Cooke lenses to keep that well-known Cooke look, and has focus markings on both sides of the lens. A cam-type focus mechanism with a large lens barrel diameter and 270° of rotation from end-stop to end-stop allows for precision focus markings, especially at close focus.

The lens features a PL mount, which makes it compatible with most commonly used professional motion picture film and electronic cameras, and has an aperture range of T2.0 to T22. The PL mount incorporates i/Technology contacts that feed lens information metadata to a compatible camera, including focus distance, aperture and depth-of-field.

Specs

Mount
PL
Focal Length
18mm
Aperture
T2.0 to T22
Maximum Format Size
1.8″ (46.31 mm) diameter
Minimum Object Distance (M.O.D.)
16″ (400 mm)
Close Focus
From Lens Front: 6″ (158 mm)
Scales
Iris:
2 opposing linear T-stop scales (whole and third stops marked)Focus:
2 opposing focus scales (metric and feet)
Scales marked from infinity to M.O.D.

Drive Gear
Iris:
134 teeth 0.8 MOD
4 mm wide x 81 mm from the image planeFocus:
140 teeth 0.8 MOD
6 mm wide x 103 mm from the image plane

Rotation
Angular Rotation between End Stops:
Focus Drive Gear: 270°
Iris Drive Gear: 90°
Angle of View
For Super 35mm Format: 78° (maximum diagonal)
For 24 x 36mm Format: 100° (maximum diagonal)
Length
From Front of Lens to Lens Mount: 7.87″ (200 mm)
Front Diameter
4.33″ (110 mm)
Weight
7.7 lb (3.5 kg)

Cooke 25mm T2.0 S7/i Full Frame Plus Prime Lens (PL Mount)

The Cooke 25mm T2.0 S7/i Full Frame Plus Prime Lens is designed to cover full frame cinema camera sensors up to at least the full sensor area of the RED Weapon 8K (46.31mm image circle). It is color-matched to other Cooke lenses to keep that well-known Cooke look, and has focus markings on both sides of the lens. A cam-type focus mechanism with a large lens barrel diameter and 270° of rotation from end-stop to end-stop allows for precision focus markings, especially at close focus.

The lens features a PL mount, which makes it compatible with most commonly used professional motion picture film and electronic cameras, and has an aperture range of T2.0 to T22. The PL mount incorporates i/Technology contacts that feed lens information metadata to a compatible camera, including focus distance, aperture and depth-of-field.

Specs

Mount
PL
Focal Length
25mm
Aperture
T2.0 to T22
Maximum Format Size
1.8″ (46.31 mm) diameter
Minimum Object Distance (M.O.D.)
14″ (350 mm)
Close Focus
From Lens Front: 4″ (109 mm)
Scales
Iris:
2 opposing linear T-stop scales (whole and third stops marked)

Focus:
2 opposing focus scales (metric and footage)
Scales marked from infinity to M.O.D.

Drive Gear
Iris:
134 teeth 0.8 MOD
4 mm wide x 81 mm from the image plane

Focus:
140 teeth 0.8 MOD
6 mm wide x 103 mm from the image plane

Rotation
Angular Rotation between End Stops:
Focus Drive Gear: 270°
Iris Drive Gear: 90°
Angle of View
For Super 35mm Format: 61° (maximum diagonal)
For 24 x 36mm Format: 82° (maximum diagonal)
Length
From Front of Lens to Lens Mount: 7.44″ (189 mm)
Front Diameter
4.33″ (110 mm)
Weight
7.28 lb (3.3 kg)

Cooke 32mm T2.0 S7/i Full Frame Plus Prime Lens (PL Mount)

The Cooke 32mm T2.0 S7/i Full Frame Plus Prime Lens is designed to cover full frame cinema camera sensors up to at least the full sensor area of the RED Weapon 8K (46.31mm image circle). It is color-matched to other Cooke lenses to keep that well-known Cooke look, and has focus markings on both sides of the lens. A cam-type focus mechanism and a large lens barrel diameter with 270° of rotation from end-stop to end-stop allows for precision focus pulls, especially at close focus.

The lens features a PL mount, which makes it compatible with most commonly used professional motion picture film and electronic cameras, and has an aperture range of T2.0 to T22. The PL mount incorporates i/Technology contacts that feed lens information metadata to a compatible camera, including focus distance, aperture and depth-of-field.

Specs

Mount
PL
Focal Length
32mm
Aperture
T2.0 to T22
Maximum Format Size
1.8″ (46.31 mm) diameter
Minimum Object Distance (M.O.D.)
14″ (350 mm)
Close Focus
From Lens Front: 4″ (109 mm)
Scales
Iris:
2 opposing linear T-stop scales (whole and third stops marked)

Focus:
2 opposing focus scales (metric and footage)
Scales marked from infinity to M.O.D.

Drive Gear
Iris:
134 teeth 0.8 MOD
4 mm wide x 81 mm from the image plane

Focus:
140 teeth 0.8 MOD
6 mm wide x 103 mm from the image plane

Rotation
Angular Rotation between End Stops:
Focus Drive Gear: 270°
Iris Drive Gear: 90°
Angle of View
For Super35mm Format: 50° (maximum diagonal)
For 24 x 36mm Format: 68° (maximum diagonal)
Length
From Front of Lens to Lens Mount: 7.44″ (189 mm)
Front Diameter
4.33″ (110 mm)
Weight
7.5 lb (3.4 kg)

Cooke 50mm T2.0 S7/i Full Frame Plus Prime Lens (PL Mount)

The Cooke 50mm T2.0 S7/i Full Frame Plus Prime Lens is designed to cover full frame cinema camera sensors up to at least the full sensor area of the RED Weapon 8K (46.31mm image circle). It is color-matched to other Cooke lenses to keep that well-known Cooke look, and has focus markings on both sides of the lens. A cam-type focus mechanism and a large lens barrel diameter with 270° of rotation from end-stop to end-stop allows for precision focus pulls, especially at close focus.

The lens features a PL mount, which makes it compatible with most commonly used professional motion picture film and electronic cameras, and has an aperture range of T2.0 to T22. The PL mount incorporates i/Technology contacts that feed lens information metadata to a compatible camera, including focus distance, aperture and depth-of-field.

Specs

Mount
PL
Focal Length
50mm
Aperture
T2.0 to T22
Maximum Format Size
1.8″ (46.31 mm) diameter
Minimum Object Distance (M.O.D.)
20″ (500 mm)
Close Focus
From Lens Front: 10″ (259 mm)
Scales
Iris:
2 opposing linear T-stop scales (whole and third stops marked)

Focus:
2 opposing focus scales (metric and footage)
Scales marked from infinity to M.O.D.

Drive Gear
Iris:
134 teeth 0.8 MOD
4 mm wide x 81 mm from the image plane

Focus:
140 teeth 0.8 MOD
6 mm wide x 103 mm from the image plane

Rotation
Angular Rotation between End Stops:
Focus Drive Gear: 270°
Iris Drive Gear: 90°
Angle of View
For Super35mm Format: 33° (maximum diagonal)
For 24 x 36mm Format: 47° (maximum diagonal)
Length
From Front of Lens to Lens Mount: 7.44″ (189 mm)
Front Diameter
4.33″ (110 mm)
Weight
7.5 lb (3.4 kg)

Cooke 75mm T2.0 S7/i Full Frame Plus Prime Lens (PL Mount)

The Cooke 75mm T2.0 S7/i Full Frame Plus Prime Lens is designed to cover full frame cinema camera sensors up to at least the full sensor area of the RED Weapon 8K (46.31mm image circle). It is color-matched to other Cooke lenses to keep that well-known Cooke look, and has focus markings on both sides of the lens. A cam-type focus mechanism and a large lens barrel diameter with 270° of rotation from end-stop to end-stop allows for precision focus pulls, especially at close focus.

The lens features a PL mount, which makes it compatible with most commonly used professional motion picture film and electronic cameras, and has an aperture range of T2.0 to T22. The PL mount incorporates i/Technology contacts that feed lens information metadata to a compatible camera, including focus distance, aperture and depth-of-field.

Specs

Mount
PL
Focal Length
75mm
Aperture
T2.0 to T22
Maximum Format Size
1.8″ (46.31 mm) diameter
Minimum Object Distance (M.O.D.)
19″ (475 mm)
Close Focus
From Lens Front: 9″ (234 mm)
Scales
Iris:
2 opposing linear T-stop scales (whole and third stops marked)

Focus:
2 opposing focus scales (metric and footage)
Scales marked from infinity to M.O.D.

Drive Gear
Iris:
134 teeth 0.8 MOD
4 mm wide x 81 mm from the image plane

Focus:
140 teeth 0.8 MOD
6 mm wide x 103 mm from the image plane

Rotation
Angular Rotation between End Stops:
Focus Drive Gear: 270°
Iris Drive Gear: 90°
Angle of View
For Super 35mm Format: 23° (maximum diagonal)
For 24 x 36mm Format: 32° (maximum diagonal)
Length
From Front of Lens to Lens Mount: 7.44″ (189 mm)
Front Diameter
4.33″ (110 mm)
Weight
6.6 lb (3 kg)

Cooke 100mm T2.0 S7/i Full Frame Plus Prime Lens (PL Mount)

The Cooke 100mm T2.0 S7/i Full Frame Plus Prime Lens is designed to cover full frame cinema camera sensors up to at least the full sensor area of the RED Weapon 8K (46.31mm image circle). It is color-matched to other Cooke lenses to keep that well-known Cooke look, and has focus markings on both sides of the lens. A cam-type focus mechanism with a large lens barrel diameter and 270° of rotation from end-stop to end-stop allows for precision focus markings, especially at close focus.

The lens features a PL mount, which makes it compatible with most commonly used professional motion picture film and electronic cameras, and has an aperture range of T2.0 to T22. The PL mount incorporates i/Technology contacts that feed lens information metadata to a compatible camera, including focus distance, aperture and depth-of-field.

Specs

Mount
PL
Focal Length
100mm
Aperture
T2.0 to T22
Maximum Format Size
1.8″ (46.31 mm) diameter
Minimum Object Distance (M.O.D.)
30″ (700 mm)
Close Focus
From Lens Front: 18″ (459 mm)
Scales
Iris:
2 opposing linear T scales (whole and third stops marked)

Focus:
2 opposing focus scales (metric and footage)
Scales marked from infinity to M.O.D.

Drive Gear
Iris:
134 teeth 0.8 MOD
4 mm wide x 81 mm from the image plane

Focus:
140 teeth 0.8 MOD
6 mm wide x 103 mm from the image plane

Rotation
Angular Rotation between End Stops:
Focus Drive Gear: 270°
Iris Drive Gear: 90°
Angle of View
For Super 35mm Format: 17° (maximum diagonal)
For 24 x 36mm Format: 24° (maximum diagonal)
Length
From Front of Lens to Lens Mount: 7.44″ (189 mm)
Front Diameter
4.33″ (110 mm)
Weight
7.28 lb (3.3 kg)

Cooke SP3 Full-Frame 5-Lens Prime Set (25/32/50/75/100mm, Sony E)

The SP3 Full-Frame 5-Lens Prime Set from Cooke comprises 25, 32, 50, 75, and 100mm lenses and a hard-shell lens case. These full-frame primes feature a fast T2.4 maximum aperture, a compact, lightweight design, user-changeable mounts, and consistent gear placement across the series.

Specs
Focal Length
25mm
Maximum Aperture
T2.4
Lens Mount
Sony E
Lens Format Coverage
Full-Frame
Filter Thread
58 mm x 0.75
Image Stabilization
No
Maximum Aperture
T2.4
Minimum Aperture
T16
Lens Mount
Sony E
Interchangeable Mount
Yes
Lens Format Coverage
Full-Frame
Image Circle
43.3 mm
Angle of View
Full Frame
Diagonal: 81°
Super 35
Diagonal: 62°
Focus Scales
Metric, Imperial
Filter Thread
58 mm x 0.75
Minimum Focus Distance
From Front of Lens: 5.5″ / 139 mm
Aperture/Iris Blades
9
Image Stabilization
No
Gear Standard
0.8 MOD
Gear Rotation
Focus: 160°
Iris: 78°
Diameter
2.5″ / 64 mm
Length
3.9″ / 98 mm
Weight
1.3 lb / 575 g

Cooke SP3 25mm T2.4 Full-Frame Prime Lens

Focal Length
25mm
Maximum Aperture
T2.4
Minimum Aperture
T16
Lens Mount
Interchangeable Mount with Included Sony E
Lens Format Coverage
Full-Frame (43.3 mm Image Circle)
Angle of View
Full Frame
Diagonal: 81°
Super 35
Diagonal: 62°
Focus Scales
Metric, Imperial
Filter Thread
58 mm x 0.75
Minimum Focus Distance
From Front of Lens: 5.5″ / 139 mm
Aperture/Iris Blades
9
Image Stabilization
No
Gear Standard
0.8 MOD
Gear Rotation
Focus: 160°
Iris: 78°
Diameter
2.5″ / 64 mm
Length
3.9″ / 98 mm
Weight
1.3 lb / 575 g

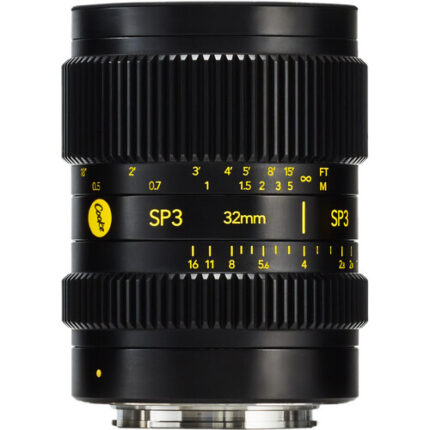

Cooke SP3 32mm T2.4 Full-Frame

Focal Length
32mm
Maximum Aperture
T2.4
Minimum Aperture
T16
Lens Mount
Interchangeable Mount with Included Sony E
Lens Format Coverage
Full-Frame (43.3 mm Image Circle)
Angle of View
Full Frame
Diagonal: 69°
Super 35
Diagonal: 50°
Focus Scales
Metric, Imperial
Filter Thread
58 mm x 0.75
Minimum Focus Distance
From Front of Lens: 8.8″ / 223 mm
Aperture/Iris Blades
9
Image Stabilization
No
Gear Standard
0.8 MOD
Gear Rotation
Focus: 160°
Iris: 78°
Diameter
2.5″ / 64 mm
Length
3.7″ / 94 mm
Weight
1.1 lb / 520 g

Cooke SP3 50mm T2.4 Full-Frame Prime Lens

Focal Length
50mm
Maximum Aperture
T2.4
Minimum Aperture
T16
Lens Mount
Interchangeable Mount with Included Sony E
Lens Format Coverage
Full-Frame (43.3 mm Image Circle)
Angle of View
Full Frame
Diagonal: 47°
Super 35
Diagonal: 34°
Focus Scales
Metric, Imperial
Filter Thread
58 mm x 0.75
Minimum Focus Distance
From Front of Lens: 15.5″ / 394 mm
Aperture/Iris Blades
9
Image Stabilization
No
Gear Standard
0.8 MOD
Gear Rotation
Focus: 160°
Iris: 78°
Diameter
2.5″ / 64 mm
Length
3.7″ / 94 mm
Weight
1.1 lb / 500 g

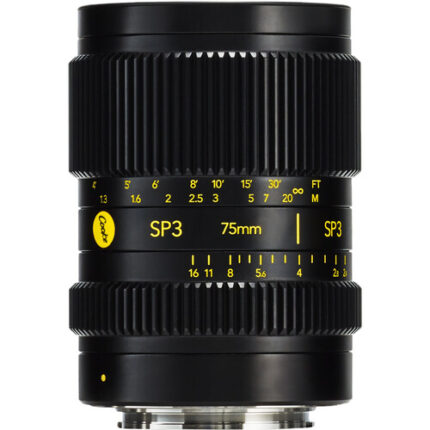

Cooke SP3 75mm T2.4 Full-Frame Prime Lens

Focal Length
75mm
Maximum Aperture
T2.4
Minimum Aperture
T16
Lens Mount
Interchangeable Mount with Included Sony E
Lens Format Coverage
Full-Frame (43.3 mm Image Circle)
Angle of View
Full Frame
Diagonal: 32°
Super 35
Diagonal: 22°
Focus Scales
Metric, Imperial
Filter Thread
58 mm x 0.75
Minimum Focus Distance
From Front of Lens: 27.1″ / 689 mm
Aperture/Iris Blades
9
Image Stabilization
No
Gear Standard
0.8 MOD
Gear Rotation
Focus: 160°
Iris: 78°
Diameter
2.5″ / 64 mm
Length
3.9″ / 98 mm
Weight
1.1 lb / 520 g

Cooke SP3 100mm T2.4 Full-Frame Prime Lens

Focal Length
100mm
Maximum Aperture
T2.4
Minimum Aperture
T16
Lens Mount
Interchangeable Mount with Included Sony E
Lens Format Coverage
Full-Frame (43.3 mm Image Circle)
Angle of View
Full Frame
Diagonal: 25°
Super 35
Diagonal: 17°
Focus Scales
Imperial
Filter Thread
77 mm x 0.75
Minimum Focus Distance
From Front of Lens: 26.1″ / 663 mm
Aperture/Iris Blades
9
Image Stabilization
No
Gear Standard
0.8 MOD
Gear Rotation
Focus: 160°
Iris: 78°
Diameter
3.2″ / 82 mm
Length
4.9″ / 124 mm
Weight
1.5 lb / 690 g
