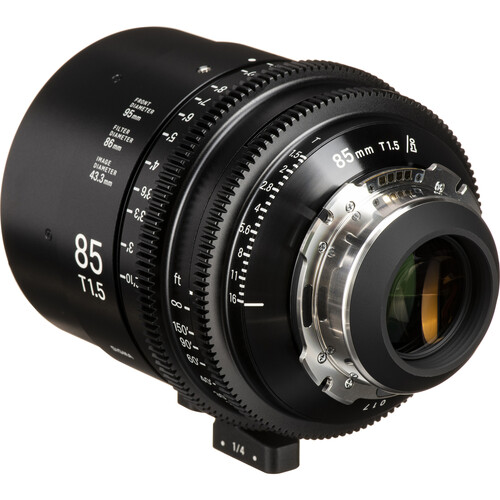

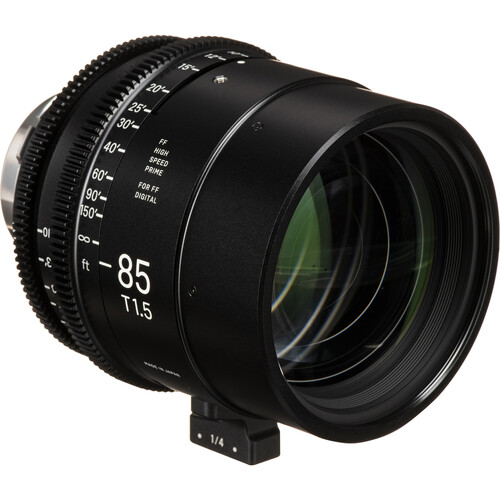

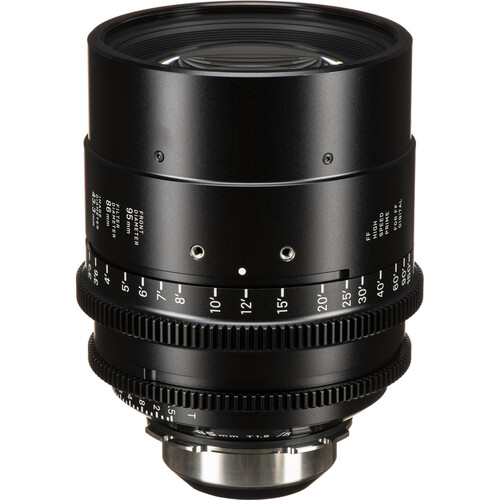

Sigma 85mm T1.5 FF High-Speed Cine Prime

PRODUCT DETAILS

The enhanced 85mm T1.5 FF High-Speed Cine Prime from Sigma combines the same high-quality optics and mechanics of its FF prime line with a cine-oriented design, and it now utilizes Cooke /i Technology that provides lens metadata to assist in post and visual effects production. This 85mm prime with PL mount is a longer focal length in the series, offering full-frame sensor coverage, 6 to 8K resolution, lens markings in feet, and a T1.5 aperture in a compact, lightweight form.

A common 95mm front diameter and similar physical attributes across the lens line makes it easier and quicker to mount lens accessories such as matte boxes, follow focuses, and lens control motors. The 9-bladed iris produces pleasing out-of-focus bokeh effects and ghosting and flaring have been minimized. Color reproduction is standardized for easier color correction. Each lens in the range offers consistent lens gear positions and 180° of focus barrel rotation. The FF High-Speed Cine Prime lenses also feature a clickless iris with linear markings, dampeners on each gear ring for silent operation, industry-standard 0.8 MOD gear pitch, and engraved markings for durability.

Full Frame Coverage
High image performance covering full-frame sensors; suitable for 8K capture
Marks in Feet
Lens markings measured in feet
Cooke /i Technology
Supports Cooke /i Technology that provides lens metadata
Fast T1.5 Aperture
Fast T1.5 maximum aperture aids in shooting with low light levels
Compact, Durable Design
Compact, dust- and water-resistant design with a common front diameter of 95mm across the line

SPECIFICATONS

Focal Length
85mm
Maximum Aperture
T1.5
Minimum Aperture
T16
Lens Mount
ARRI PL
Lens Format Coverage
Full-Frame (43.3 mm Image Circle)
Angle of View
APS-C (1.5x)
Horizontal: 15.9°
Full Frame
Horizontal: 23.9°
Super 35
Horizontal: 16.5°
Focus Scales
Imperial
Filter Thread
82 mm
Minimum Focus Distance
From Camera Sensor: 33.5″ / 85 cm
Aperture/Iris Blades
9
Image Stabilization
No
Lens Mounting
1x 1/4″-20 (via Included Support Foot)
Gear Standard
0.8 MOD
Gear Rotation
Focus: 180°
Iris: 60°
Electronic Communication
Yes
Camera Connection
4-Pin Flat Connector (Cooke /i Technology Lens Data) Data
Diameter
Front: 3.7″ / 95 mm
Length
4.68″ / 118.9 mm
Weight
2.9 lb / 1335 g
